4 Operation
4.1

General operating principles

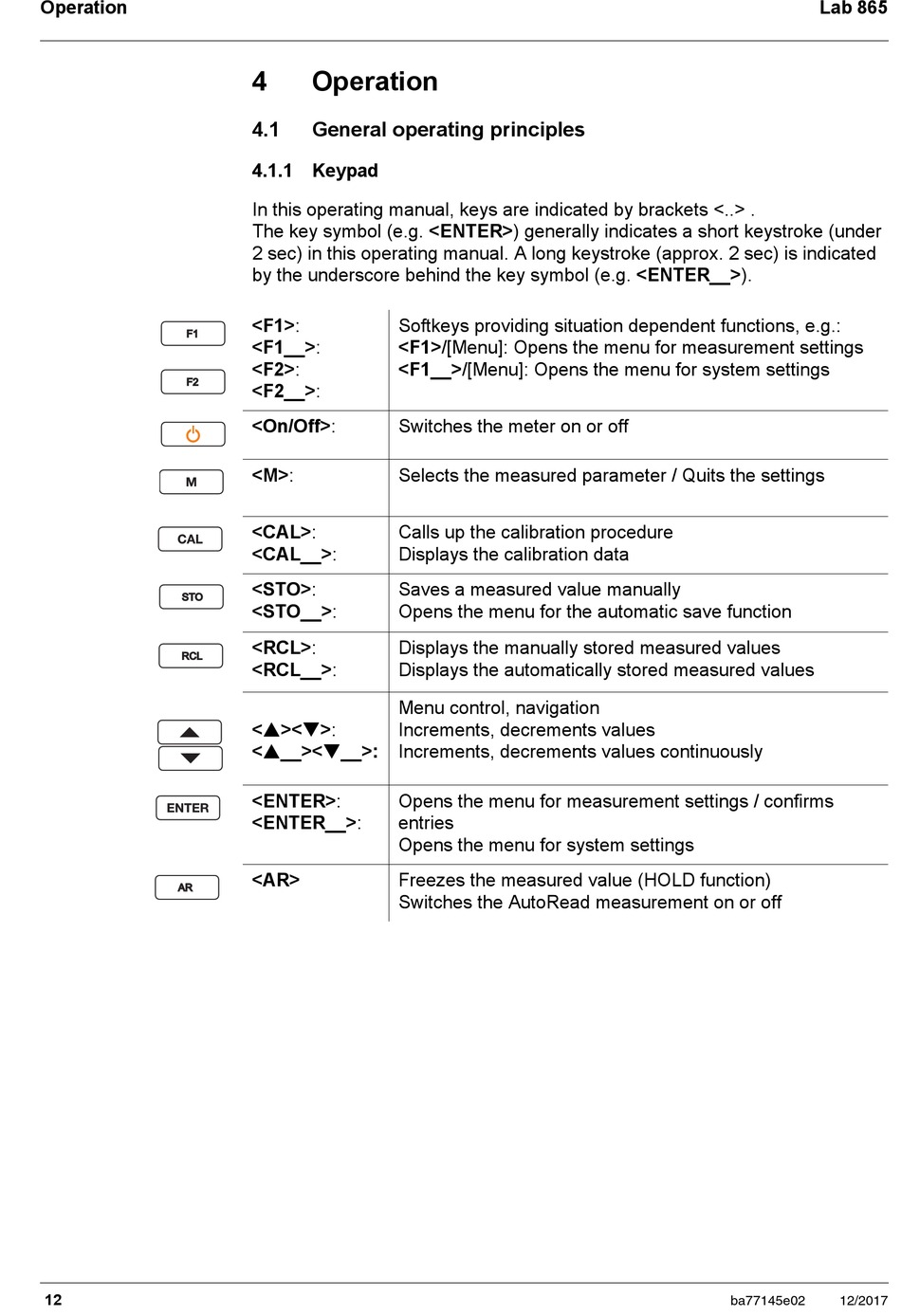

4.1.1 Keypad

In this operating manual, keys are indicated by brackets <..> .
The key symbol (e.g. <ENTER>) generally indicates a short keystroke (under
2 sec) in this operating manual. A long keystroke (approx. 2 sec) is indicated
by the underscore behind the key symbol (e.g. <ENTER__>).
<F1>: Softkeys providing situation dependent functions, e.g.:
<F1__>: <F1>/[Menu]: Opens the menu for measurement settings
<F2>: <F1__>/[Menu]: Opens the menu for system settings
<F2__>:
<On/Off>: Switches the meter on or off
<M>: Selects the measured parameter / Quits the settings
<CAL>: Calls up the calibration procedure
<CAL__>: Displays the calibration data
<STO>: Saves a measured value manually
<STO__>: Opens the menu for the automatic save function
<RCL>: Displays the manually stored measured values
<RCL__>: Displays the automatically stored measured values
Menu control, navigation
<><>: Increments, decrements values
<__><__>: Increments, decrements values continuously
<ENTER>: Opens the menu for measurement settings / confirms
<ENTER__>: entries
Opens the menu for system settings
<AR> Freezes the measured value (HOLD function)
Switches the AutoRead measurement on or off
