942 Extension Module Vario ONE/Deg (2.942.1060)
Removing the base tray
Prerequisites
The instrument is switched off.
￭
The bottle holder is cleared.
￭
All of the cable connections on the rear have been disconnected.
￭
The capillaries are removed from the guide ducts between the instru-
￭
ment and the base tray.
There are no loose parts in the instrument.
￭
Accessories
3 mm hex key (6.2621.100)
￭
2

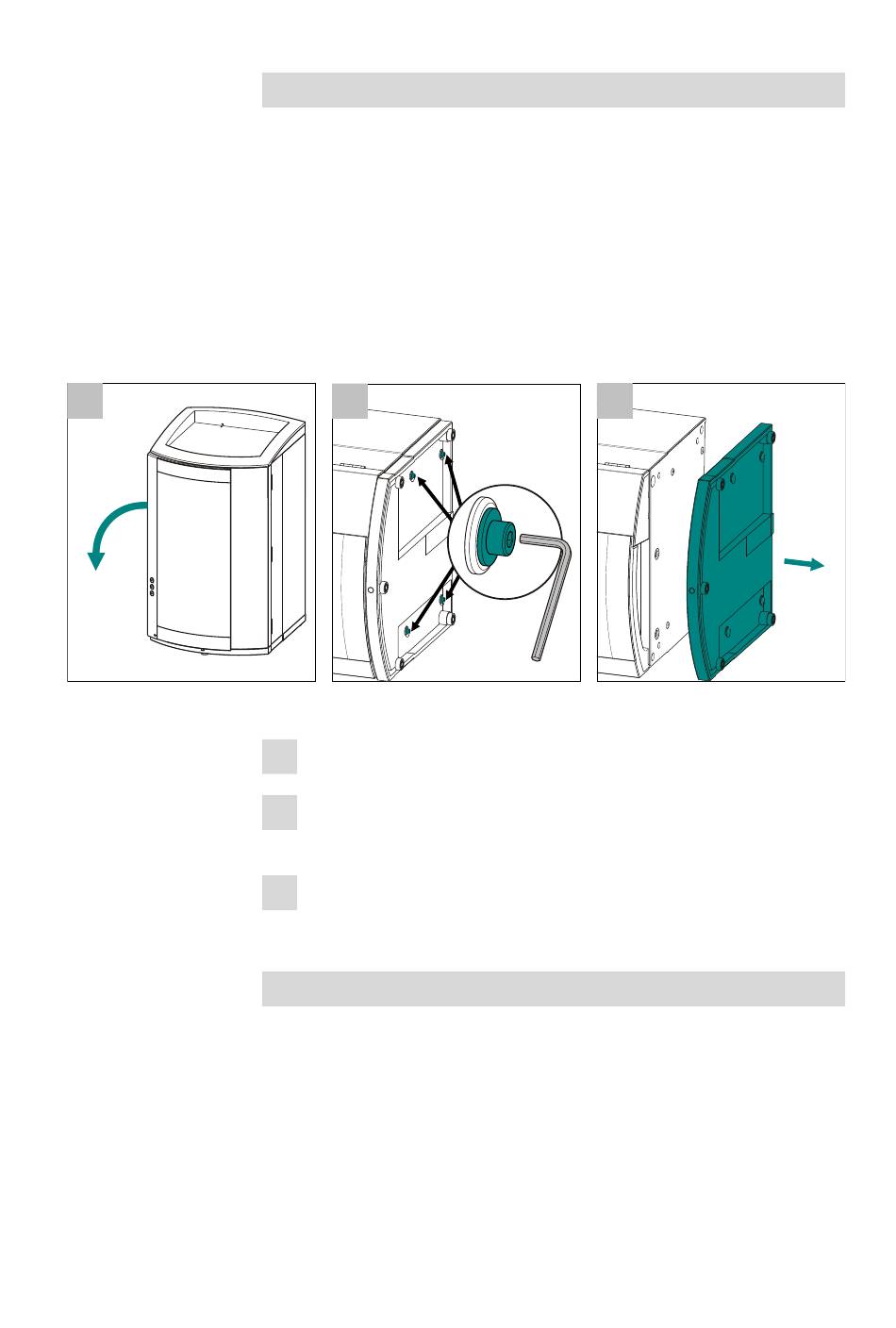

Figure 4 Removing the base tray
1 Tilt the instrument sideways and lay it down flat.
2 Loosen the 4 cylinder screws with the 3 mm hex key. Remove the cyl-
inder screws and their washers.
3 Remove the base tray.
Always mount the base tray under the lowermost instrument of the stack.
Mounting the base tray
Prerequisites
The instrument is switched off.
￭
The bottle holder is cleared.
￭
All of the cable connections on the rear have been disconnected.
￭
There are no loose parts in the instrument.
￭
The instrument is lying on its side, and the bottom surface is visible.
￭
3 Installation
