Figure 6 Removing The Bottle Holder - Metrohm 942 Extension Module Vario Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
1
942 Extension Module Vario ONE/Deg (2.942.1060)
3 mm hex key (6.2621.100)
￭
2

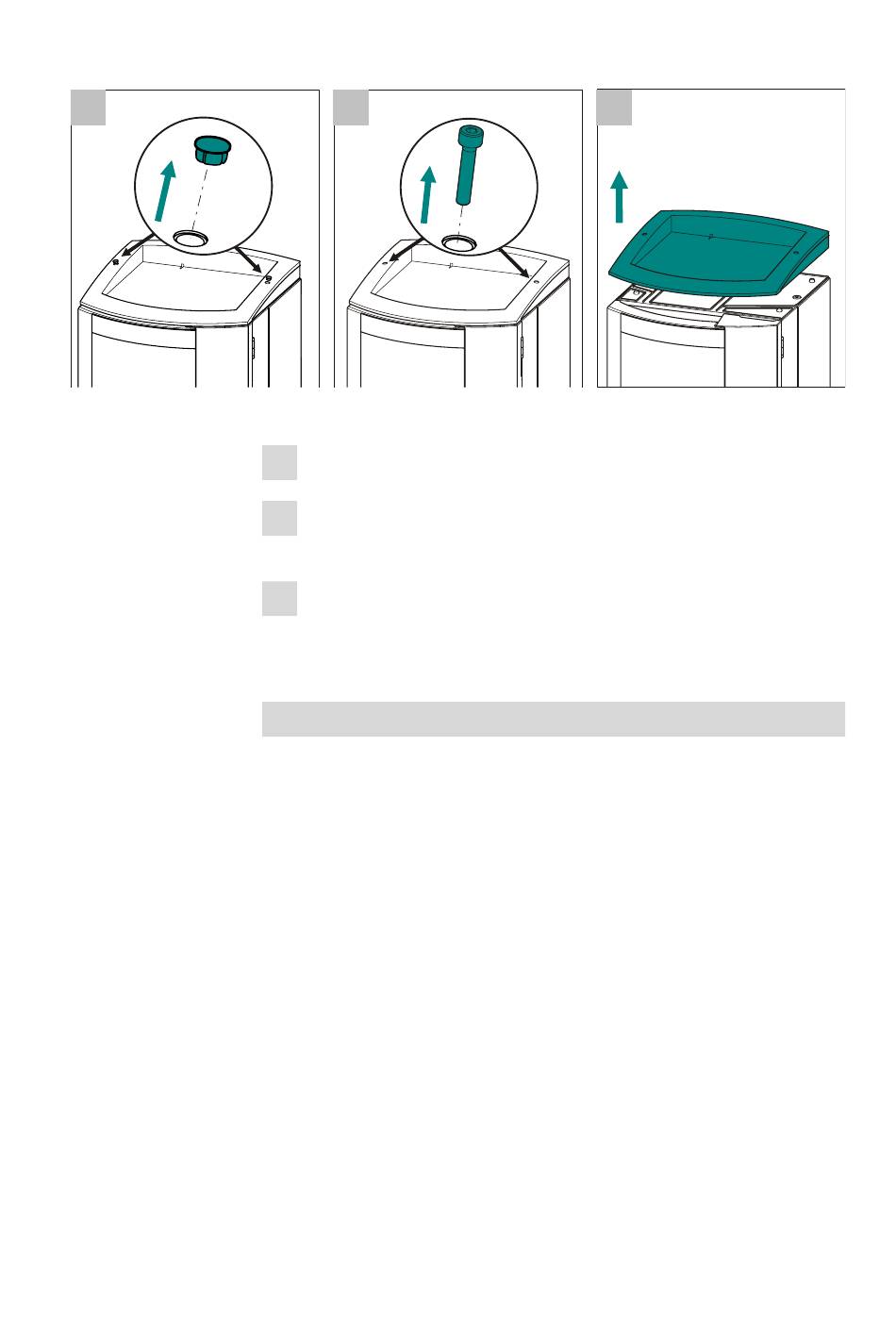

Figure 6 Removing the bottle holder
1 Remove the 2 covering stoppers.
2 Loosen the 2 cylinder screws with the 3 mm hex key and remove
them.
3 Remove the bottle holder.
Stack other instruments in the required order. Mount the bottle holder
(6.2061.100) onto the topmost instrument on the stack.
Mounting the bottle holder
Prerequisite
The instrument is switched off.
￭
Accessories
3 mm hex key (6.2621.100)
￭
3 Installation
3
￭￭￭￭￭￭￭￭
15
