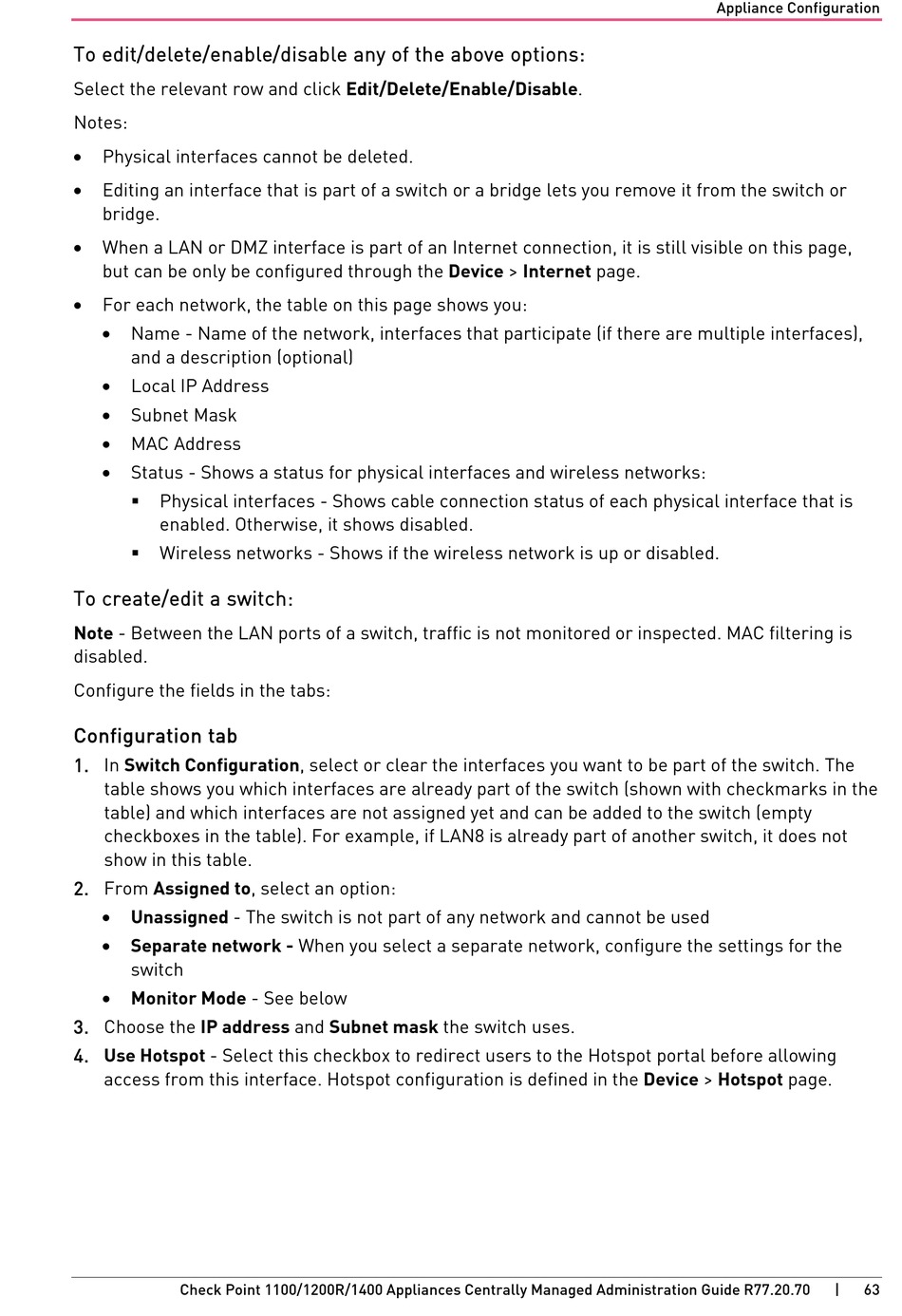

To edit/delete/enable/disable any of the above options:
Select the relevant row and click Edit/Delete/Enable/Disable.
Notes:
Physical interfaces cannot be deleted.
Editing an interface that is part of a switch or a bridge lets you remove it from the switch or
bridge.
When a LAN or DMZ interface is part of an Internet connection, it is still visible on this page,
but can be only be configured through the Device > Internet page.
For each network, the table on this page shows you:
Name - Name of the network, interfaces that participate (if there are multiple interfaces),
and a description (optional)
Local IP Address
Subnet Mask
MAC Address
Status - Shows a status for physical interfaces and wireless networks:
Physical interfaces - Shows cable connection status of each physical interface that is
enabled. Otherwise, it shows disabled.
Wireless networks - Shows if the wireless network is up or disabled.
To create/edit a switch:
Note - Between the LAN ports of a switch, traffic is not monitored or inspected. MAC filtering is
disabled.
Configure the fields in the tabs:
Configuration tab
1. In Switch Configuration, select or clear the interfaces you want to be part of the switch. The
table shows you which interfaces are already part of the switch (shown with checkmarks in the
table) and which interfaces are not assigned yet and can be added to the switch (empty
checkboxes in the table). For example, if LAN8 is already part of another switch, it does not
show in this table.
2. From Assigned to, select an option:
Unassigned - The switch is not part of any network and cannot be used
Separate network - When you select a separate network, configure the settings for the
switch
Monitor Mode - See below
3. Choose the IP address and Subnet mask the switch uses.
4. Use Hotspot - Select this checkbox to redirect users to the Hotspot portal before allowing
access from this interface. Hotspot configuration is defined in the Device > Hotspot page.
Check Point 1100/1200R/1400 Appliances Centrally Managed Administration Guide R77.20.70
Appliance Configuration
|
63
