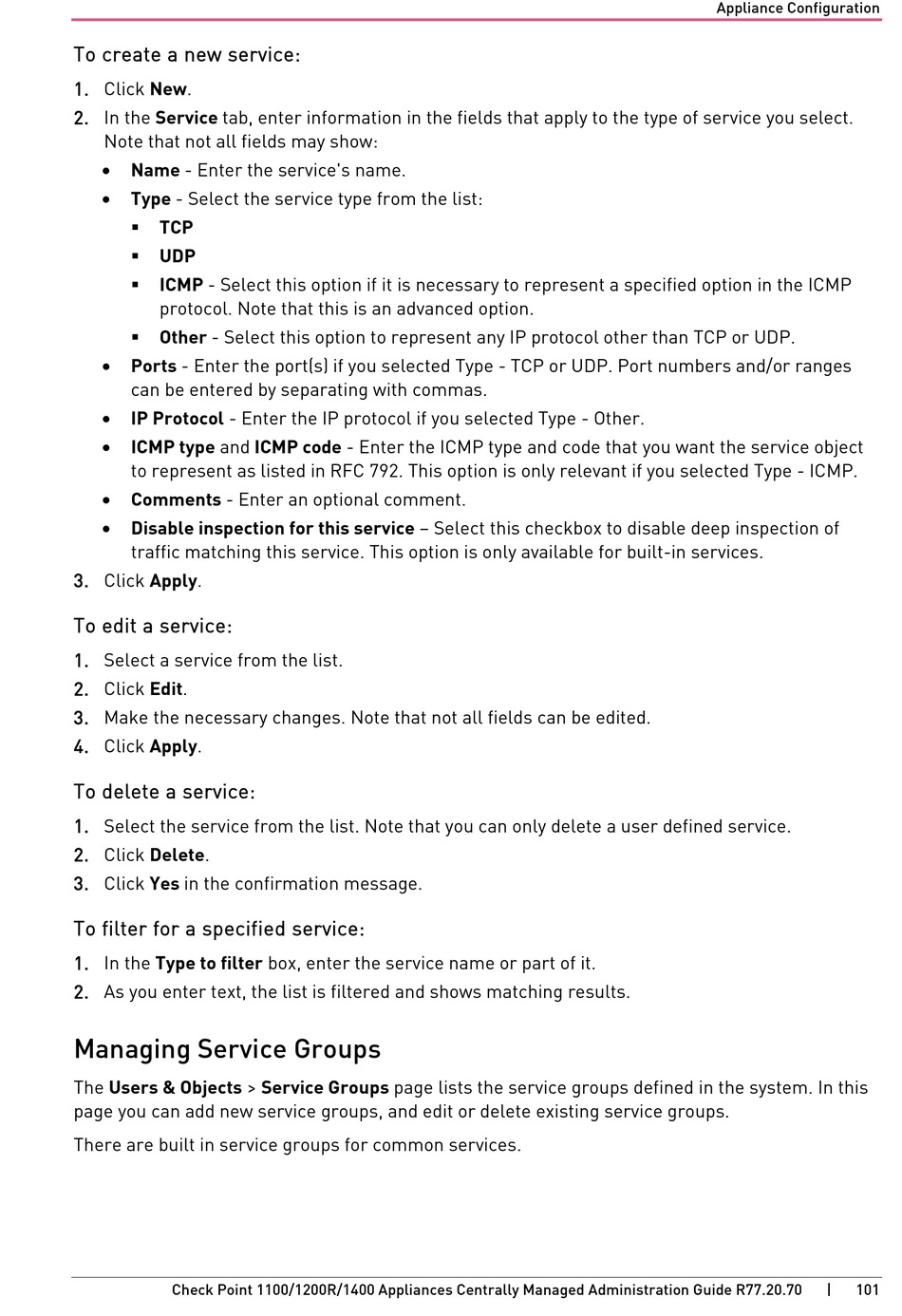

To create a new service:
1. Click New.
2. In the Service tab, enter information in the fields that apply to the type of service you select.
Note that not all fields may show:
•
Name - Enter the service's name.
•
Type - Select the service type from the list:
TCP
UDP
ICMP - Select this option if it is necessary to represent a specified option in the ICMP
protocol. Note that this is an advanced option.
Other - Select this option to represent any IP protocol other than TCP or UDP.
•
Ports - Enter the port(s) if you selected Type - TCP or UDP. Port numbers and/or ranges
can be entered by separating with commas.
•
IP Protocol - Enter the IP protocol if you selected Type - Other.
ICMP type and ICMP code - Enter the ICMP type and code that you want the service object
•
to represent as listed in RFC 792. This option is only relevant if you selected Type - ICMP.
Comments - Enter an optional comment.
•
•
Disable inspection for this service – Select this checkbox to disable deep inspection of
traffic matching this service. This option is only available for built-in services.
3. Click Apply.
To edit a service:
1. Select a service from the list.
2. Click Edit.
3. Make the necessary changes. Note that not all fields can be edited.
4. Click Apply.
To delete a service:
1. Select the service from the list. Note that you can only delete a user defined service.
2. Click Delete.
3. Click Yes in the confirmation message.
To filter for a specified service:
1. In the Type to filter box, enter the service name or part of it.
2. As you enter text, the list is filtered and shows matching results.
Managing Service Groups
The Users & Objects > Service Groups page lists the service groups defined in the system. In this
page you can add new service groups, and edit or delete existing service groups.
There are built in service groups for common services.
Check Point 1100/1200R/1400 Appliances Centrally Managed Administration Guide R77.20.70
Appliance Configuration
|
101
