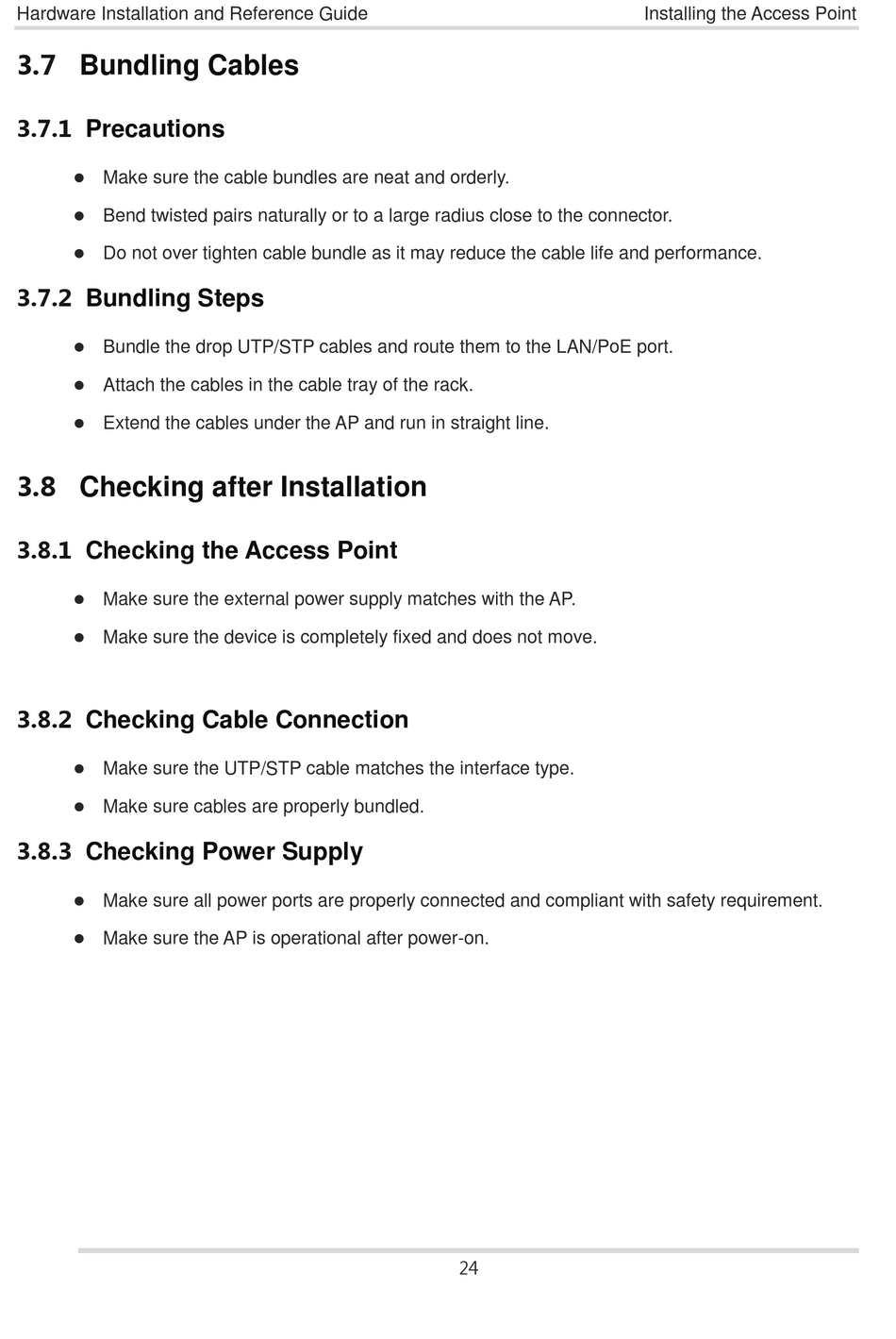

Hardware Installation and Reference Guide
3.7

Bundling Cables

3.7.1

Precautions


Make sure the cable bundles are neat and orderly.

Bend twisted pairs naturally or to a large radius close to the connector.

Do not over tighten cable bundle as it may reduce the cable life and performance.
3.7.2

Bundling Steps


Bundle the drop UTP/STP cables and route them to the LAN/PoE port.
 Attach the cables in the cable tray of the rack.

Extend the cables under the AP and run in straight line.
3.8

Checking after Installation

3.8.1

Checking the Access Point


Make sure the external power supply matches with the AP.

Make sure the device is completely fixed and does not move.
3.8.2

Checking Cable Connection


Make sure the UTP/STP cable matches the interface type.

Make sure cables are properly bundled.
3.8.3

Checking Power Supply


Make sure all power ports are properly connected and compliant with safety requirement.

Make sure the AP is operational after power-on.
24
Installing the Access Point
