Precautions - Ruijie RG-AP820-I Installation And Reference Manual

Hardware Installation and Reference Guide

The installation position meets the temperature and humidity requirements of the device.

The power supply and required current are available in the installation position.

The Ethernet cable have been deployed in the installation position.

The selected power supply modules meet the system power requirements.

The position of the indoor emergency power switch is learned before installation. The power
switch is cut off in case of accidents.

For ceiling-mounted or wall-mounted AP, the mounting bracket size, mounting hole pattern
and diameter should meet the requirements in Table 1-4 Size and Weight, as shown in
Figure 3-1.

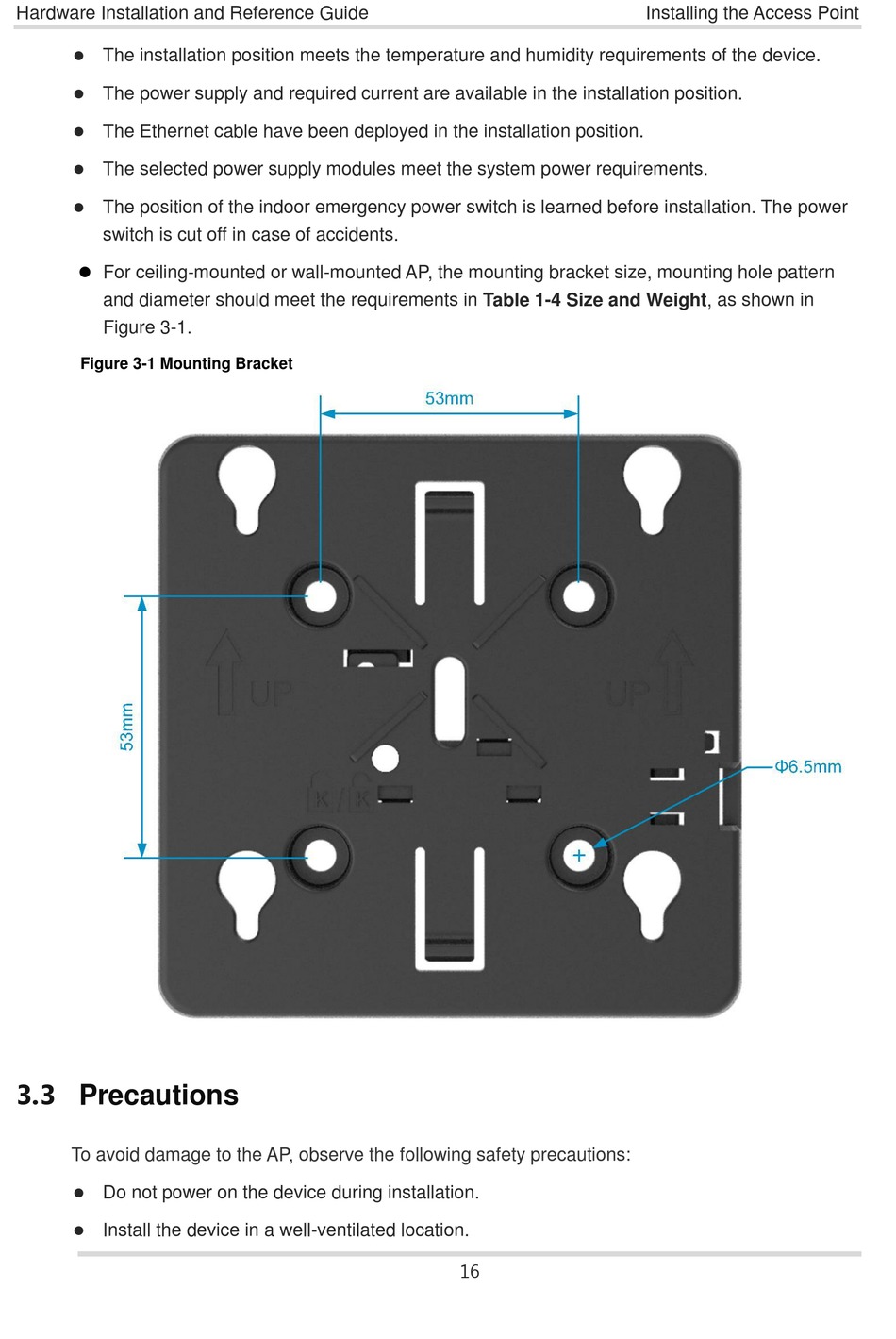

Figure 3-1 Mounting Bracket
3.3

Precautions

To avoid damage to the AP, observe the following safety precautions:

Do not power on the device during installation.

Install the device in a well-ventilated location.
16
Installing the Access Point
