Hardware Installation and Reference Guide
1.4

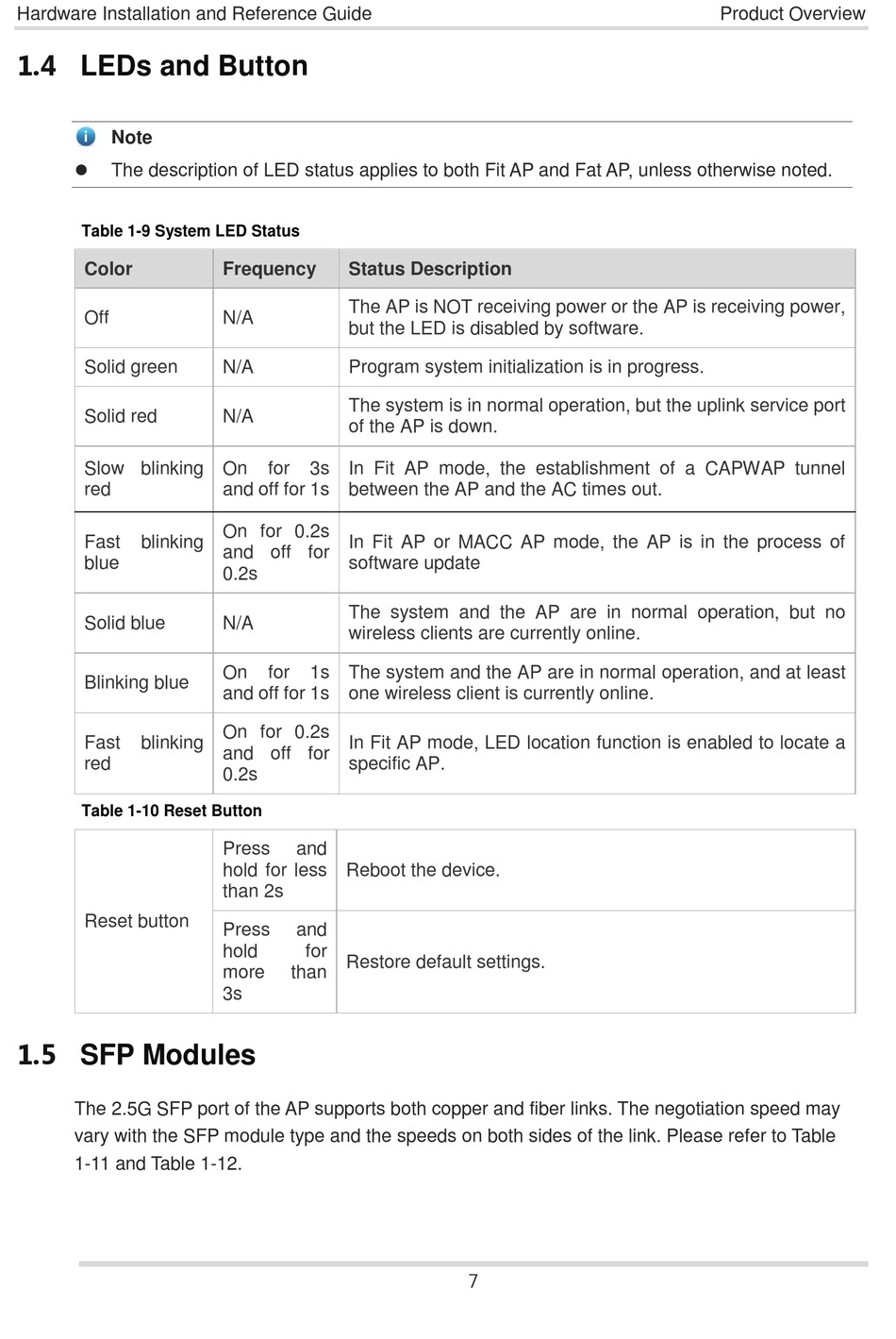

LEDs and Button

Note

The description of LED status applies to both Fit AP and Fat AP, unless otherwise noted.
Table 1-9 System LED Status
Color
Off
Solid green
Solid red
Slow blinking
red
Fast blinking
blue
Solid blue
Blinking blue
Fast blinking
red
Table 1-10 Reset Button
Reset button
1.5

SFP Modules

The 2.5G SFP port of the AP supports both copper and fiber links. The negotiation speed may
vary with the SFP module type and the speeds on both sides of the link. Please refer to Table
1-11 and Table 1-12.
Frequency Status Description
The AP is NOT receiving power or the AP is receiving power,
N/A
but the LED is disabled by software.
N/A Program system initialization is in progress.
The system is in normal operation, but the uplink service port
N/A
of the AP is down.
On for 3s In Fit AP mode, the establishment of a CAPWAP tunnel
and off for 1s between the AP and the AC times out.
On for 0.2s
In Fit AP or MACC AP mode, the AP is in the process of
and off for
software update
0.2s
The system and the AP are in normal operation, but no
N/A
wireless clients are currently online.
On for 1s The system and the AP are in normal operation, and at least
and off for 1s one wireless client is currently online.
On for 0.2s
In Fit AP mode, LED location function is enabled to locate a
and off for
specific AP.
0.2s
Press and
hold for less Reboot the device.
than 2s
Press and
hold for
Restore default settings.
more than
3s
7
