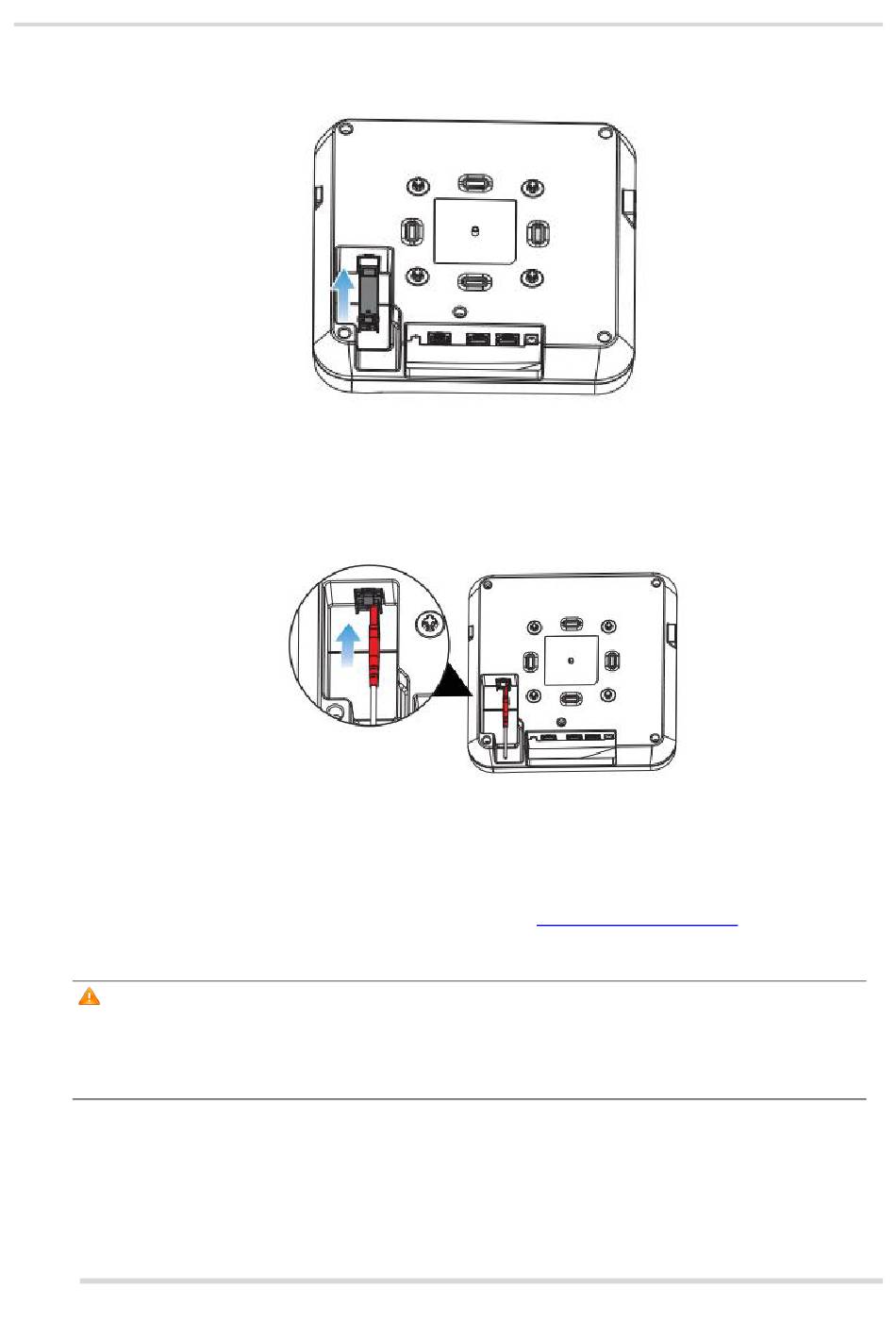

Figure 3-82 Inserting the SFP Module
(2) Connect the fiber.
Figure 3-93 Connecting the Fiber
3.6

Connecting Cables

Connect UTP/STP to the LAN/PoE port on the AP. See _Connectors_and_Media7.1 for supported
wiring of twisted pairs.
Caution
By default, baud rate is set to 9600, data bit 8, parity none, stop bits 1 and flow control none on
the Console port of the AP. The console port is used only when you want to configure the AP
manually.
