4. Look at the bottom of the library where the drives are located. If there is a hinge
connecting the left side of the drive slots to the back of the library (Figure 5), go to
Step 5.
If your library does not have a hinge (Figure 6), go to Step 6.

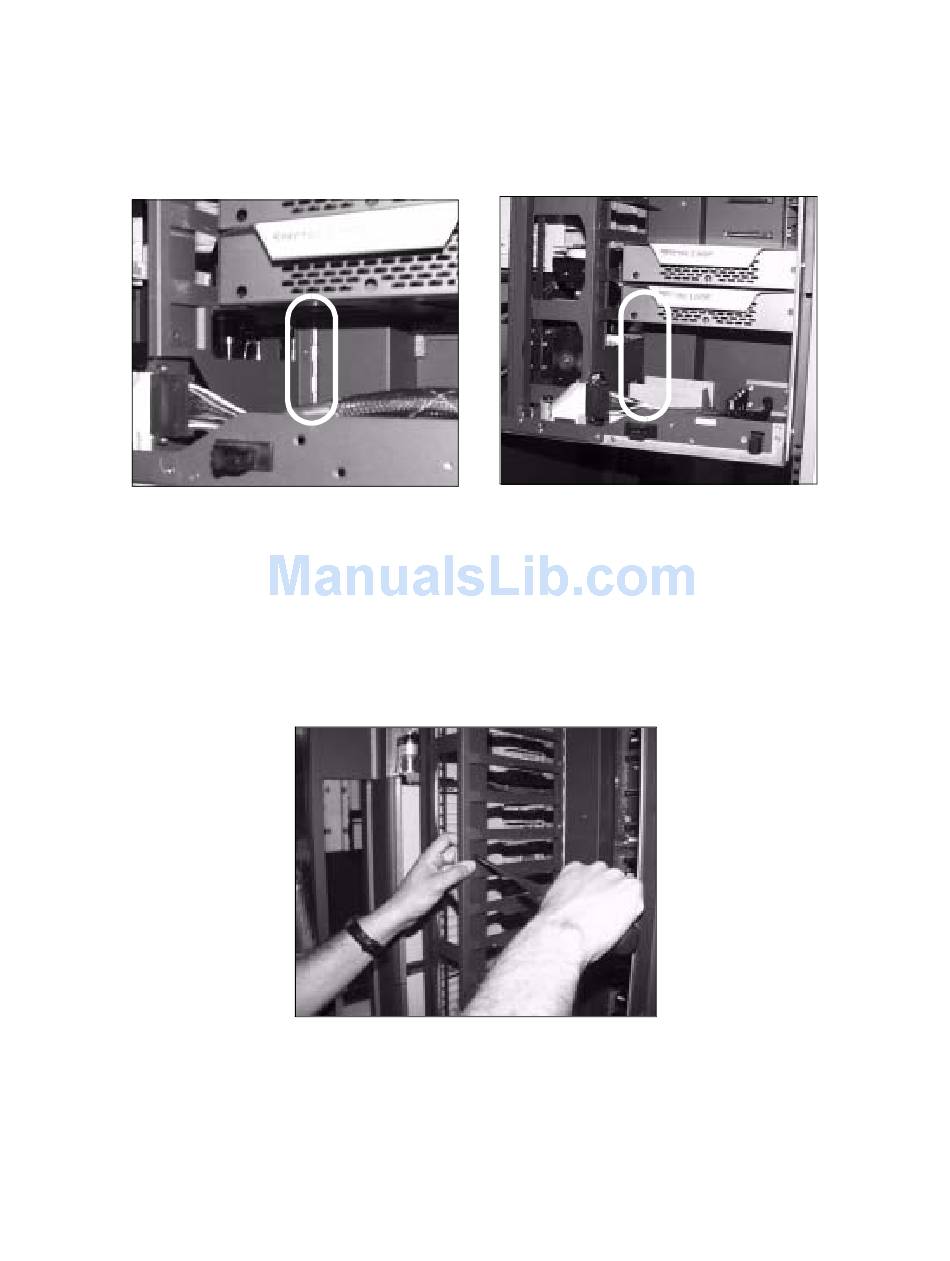

Figure 5 A library with a hinge.
5. Using the appropriate screwdriver, loosen the screws just enough to move the gate
out of the way from the robotic rack assembly (Figure 7).
• Some Spectra 12K libraries have three screws in the gate, and some units will
have no screws in the gate.
• All Spectra 64K libraries have five screws in the gate.
Transport Tray Assembly Replacement Guide
Figure 7 The drive slot gate (Spectra 64K library shown).
