3. Using the snap ring pliers, secure the outer-most two gears on both the front and
back of the library with snap rings (Figure 30).
4. Plug the power and control ribbon into the port on the underside of the transport
tray (Figure 31).
Transport Tray Assembly Replacement Guide

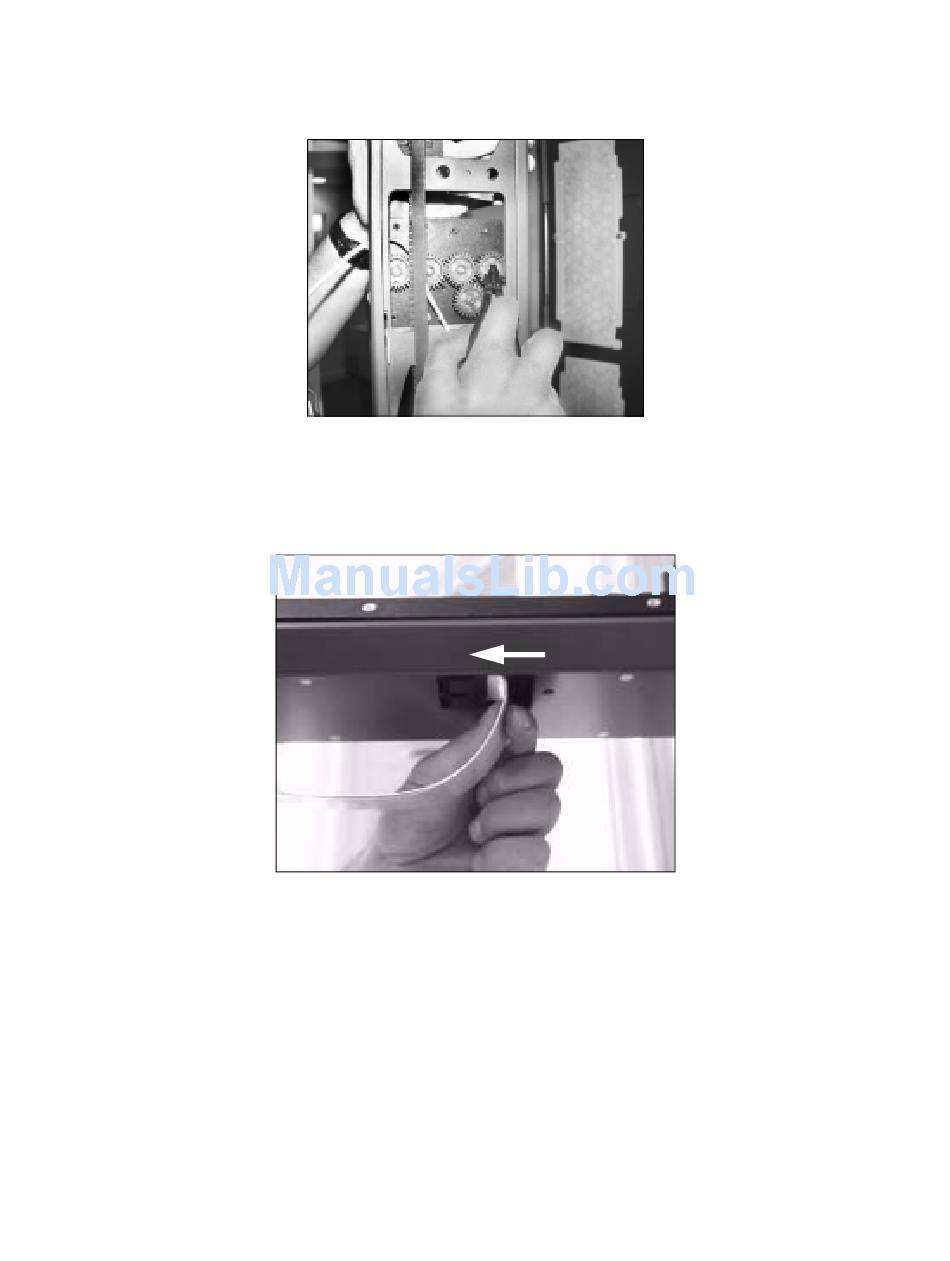

Figure 30 The transport tray gear snap rings.
Figure 31 The power and control ribbon.
