Spectra Logic Spectra 12K Supplementary Manual page 32

Open the Entry/Exit Port
1. Select Toolbars > General.
2. Select the Inventory icon in the upper left corner of the screen; the Library
Inventory screen displays.
3. Select Open/Close in the Entry/Exit Port menu (Figure 44).

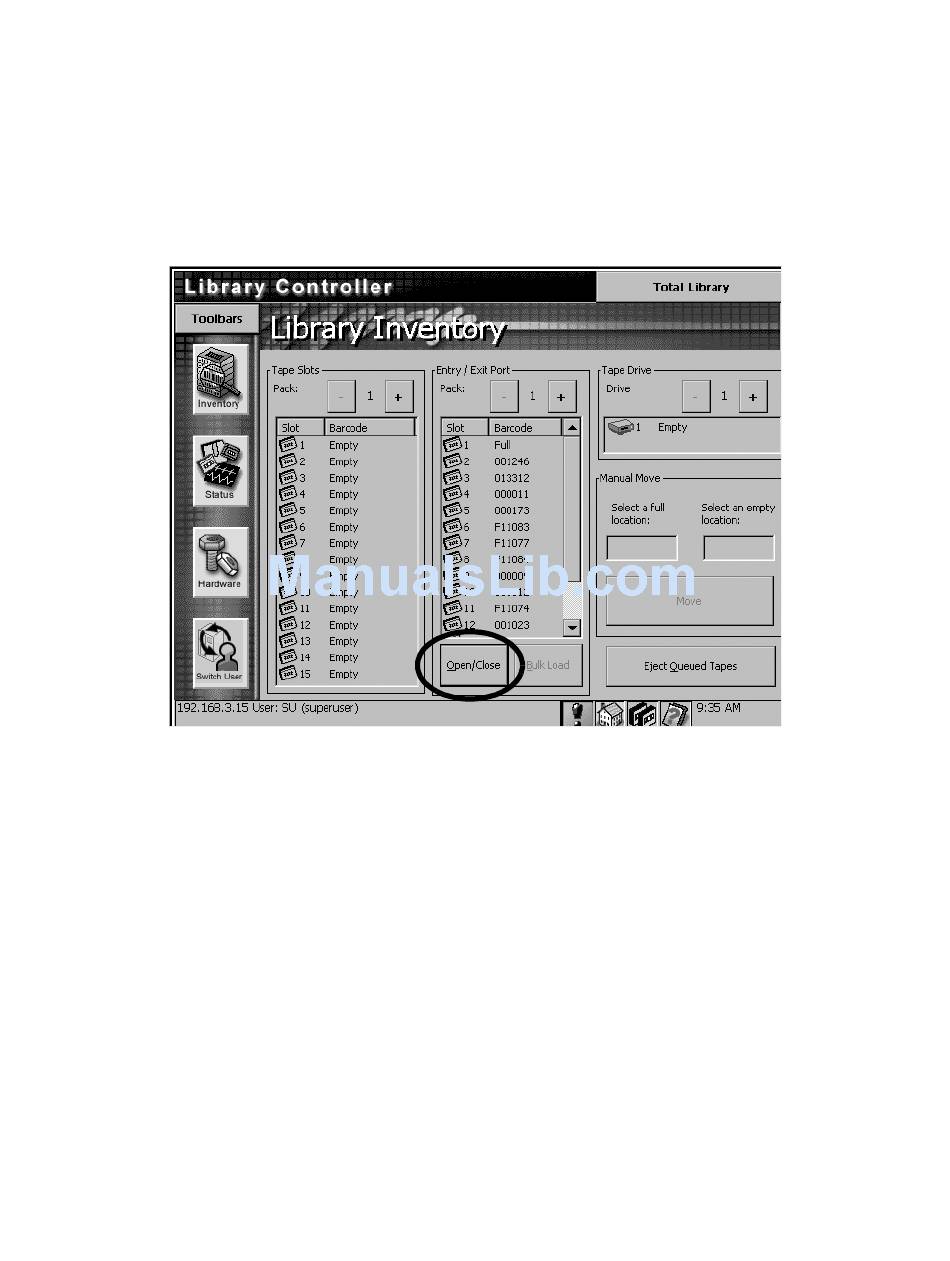

Figure 44 The Library Inventory screen, showing the Entry/Exit Port menu.
4. The Confirm Open Entry/Exit Port window displays; select OK.
5. Insert any bar-coded tape into Slot 1 (the top slot) of the DCM in the E/E port.
6. Select Open/Close again to close the E/E port.
7. The Confirm Close Entry/Exit Port window displays; select OK.
8. Wait for the inventory sweep to complete, then verify that the bar code label is
correctly displayed in the Inventory screen.
9. Leave the tape in the E/E port.
10. Proceed to Picker-Slot Calibration on page 33.
Transport Tray Assembly Replacement Guide
32
