2. Carefully remove the transport tray assembly from the shipping box and set the
shipping box aside (Figure 23).

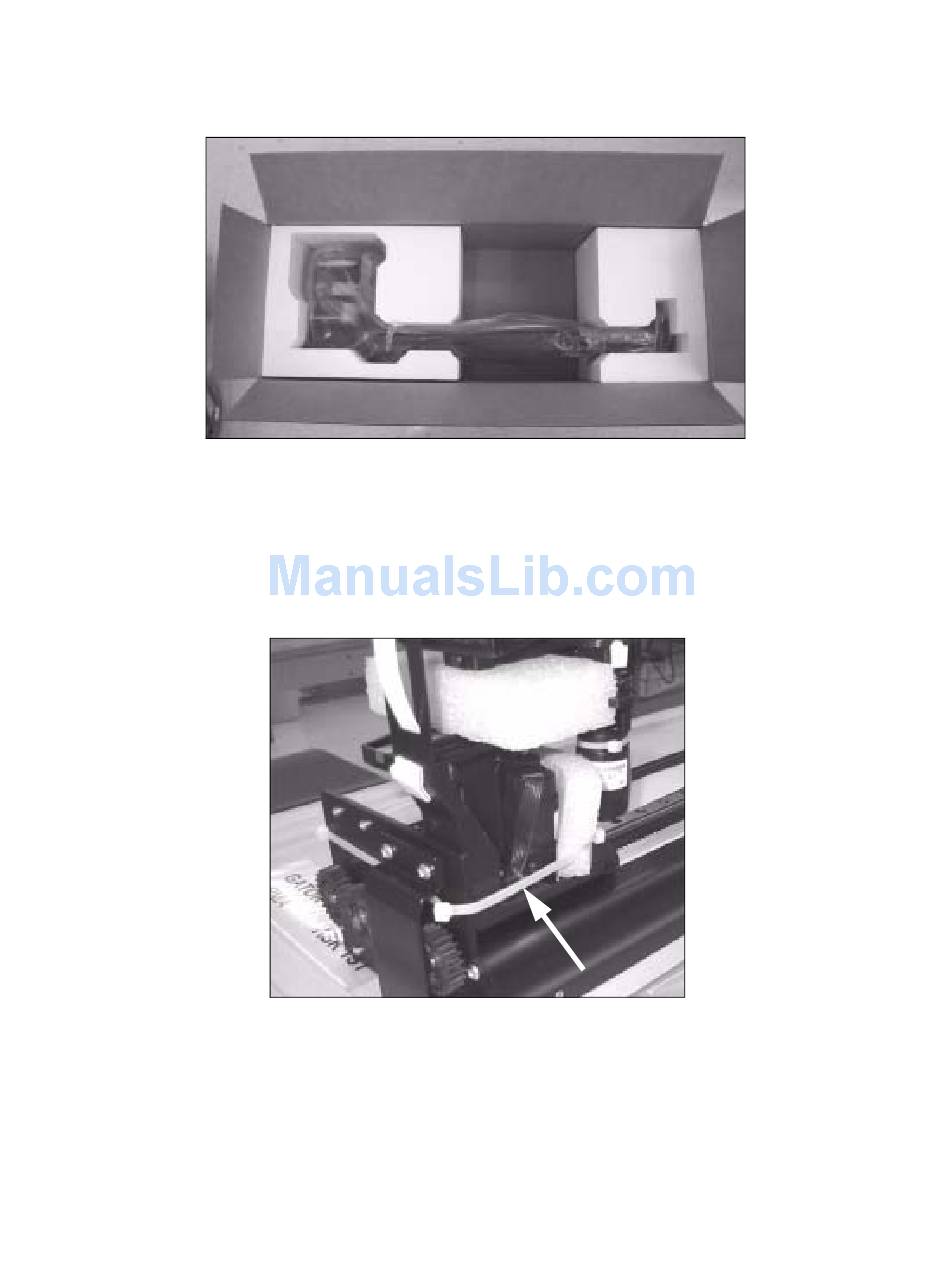

Figure 23 The transport tray shipping box.
3. Carefully remove the tray assembly from the anti-static bag.
4. Using a wire cutter, carefully cut the plastic tie securing the robotic picker to the
end of the transport tray (Figure 24). Take care not to damage the robotic picker
while removing the tie.
Transport Tray Assembly Replacement Guide
Figure 24 The robotic picker tie.
