11. Remove the outer-most two gears from both the front and back of the transport
tray. These gears are the ones that engage the cogs on the robotic rack (Figure 20).
12. Carefully lift the transport tray off the alignment blocks and take it out of the rack
(Figure 21).
13. Set the transport tray assembly aside in a safe location.
14. Proceed to Unpack the Replacement Transport Tray Assembly on page 18.
Transport Tray Assembly Replacement Guide

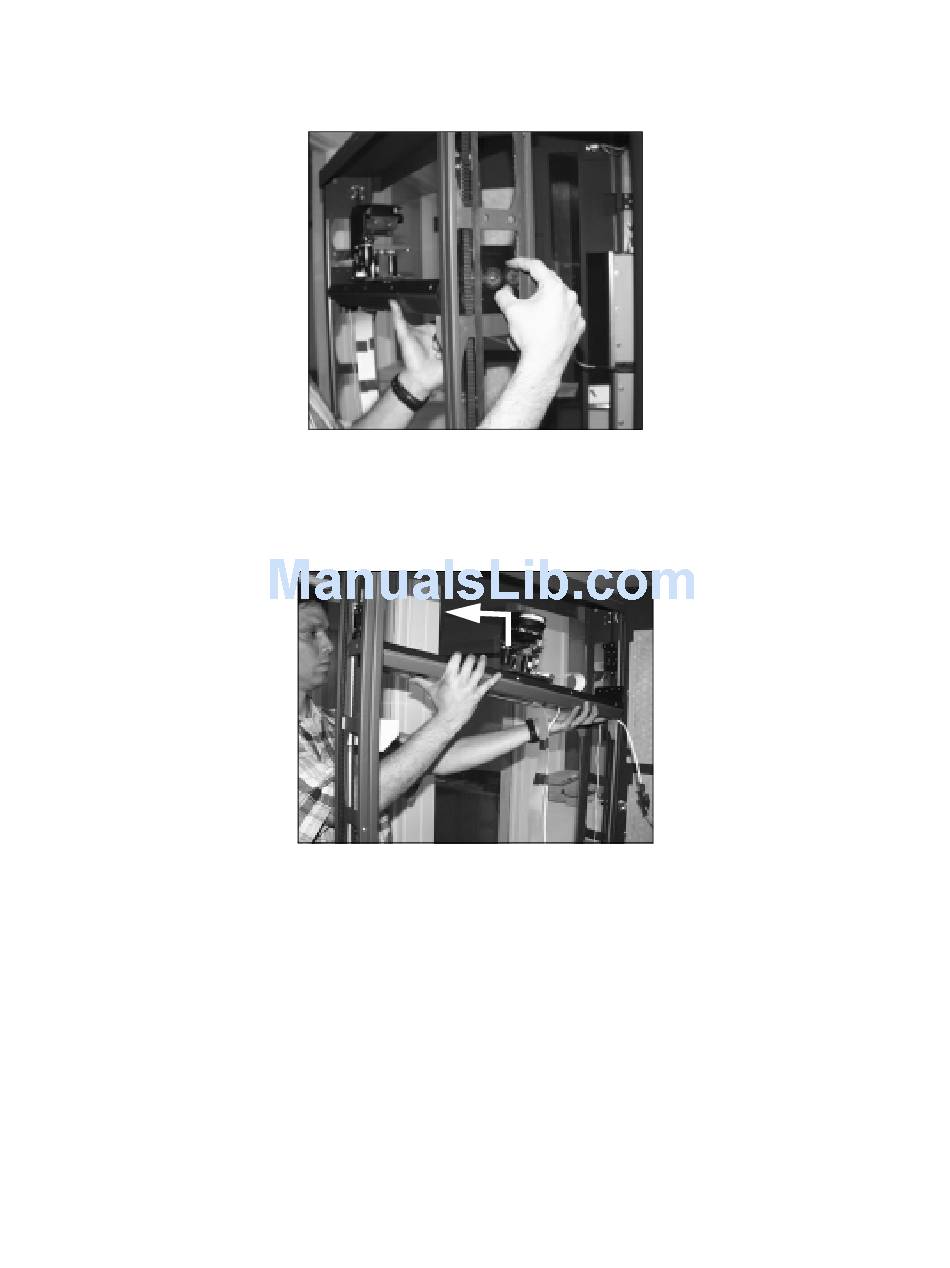

Figure 20 The transport tray gears.
Figure 21 The transport tray is removed.
