6. Unplug the 25-wire black connector at the bottom front of the robotic rack
assembly (Figure 8 and Figure 9).

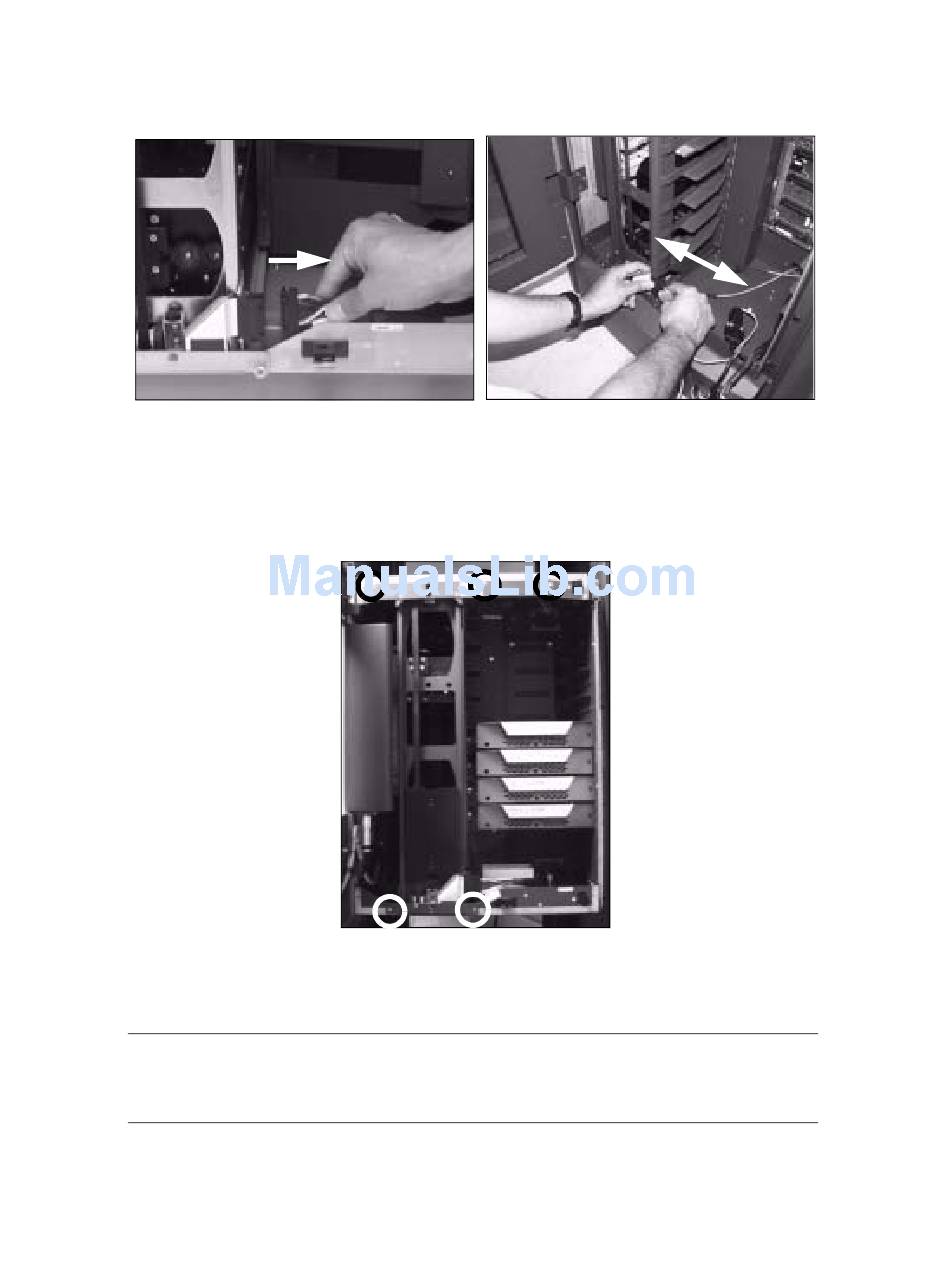

Figure 8 The 25-wire black connector (Spectra 12K
library shown).
7. Using the #2 Phillips screwdriver, loosen the screws that hold the robotic rack
assembly to the chassis: first the top, then the bottom (Figure 10).
Note:
Some Spectra 12K library models have only four screws attaching
the robotic rack to the chassis.
Transport Tray Assembly Replacement Guide
Figure 9 The 25-wire black connector (Spectra 64K
library shown).
Figure 10 The robotic rack with the screws
circled (Spectra 12K library shown).
