7. Using the #2 Phillips screwdriver, replace the gear cover on the back of the

transport tray (Figure 34).

8. Using the #1 Phillips screwdriver, attach the counterweight assemblies to the front

and back of the transport tray (Figure 35).

Warning:

Be sure to support the counterweights as they are attached to the

transport tray in order to prevent the counterweights from falling

and injuring your hands or fingers.

Transport Tray Assembly Replacement Guide

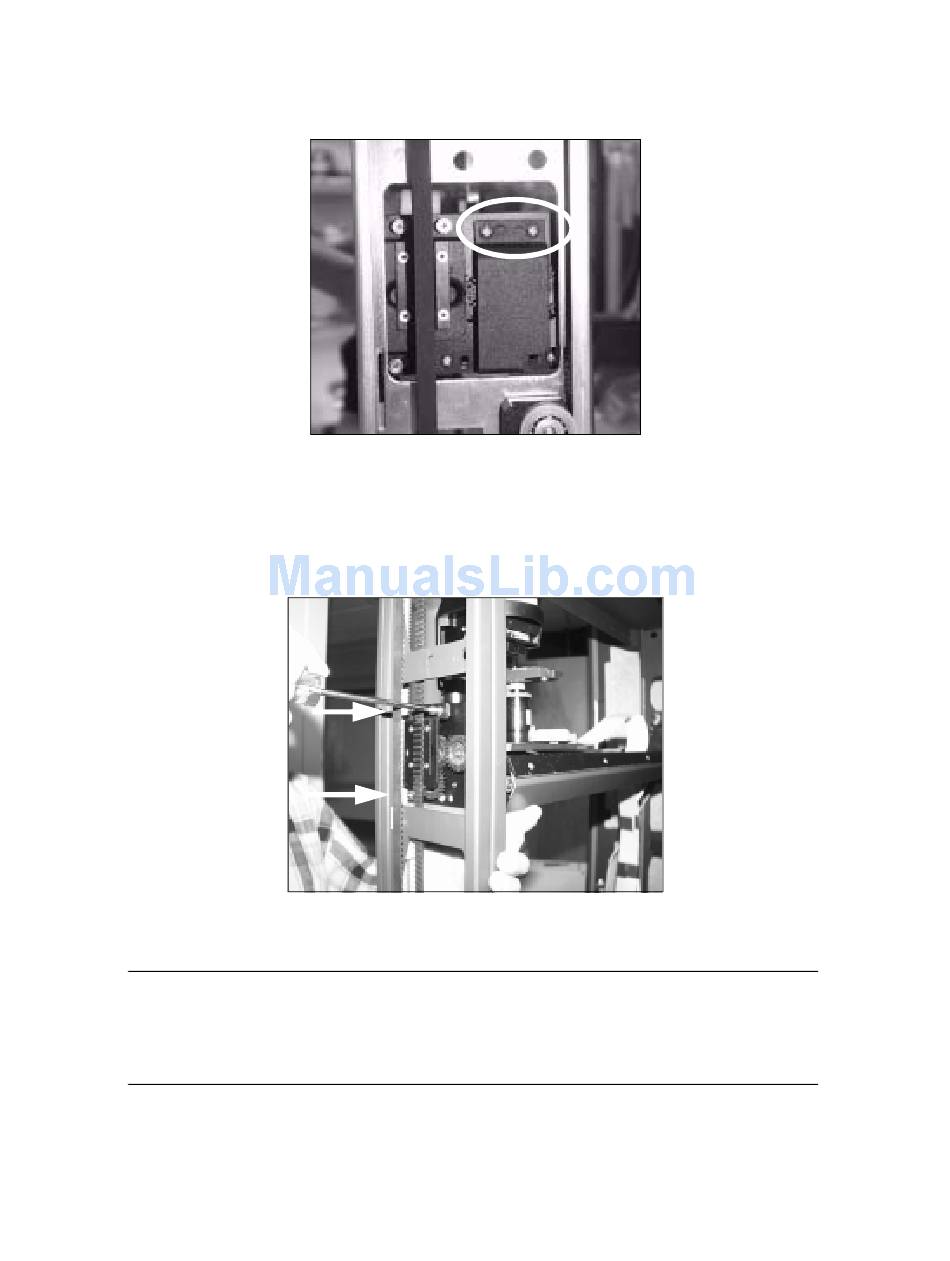

Figure 34 The screws in the transport tray gear

cover.

Figure 35 The transport tray counterweight assembly.
