Remove the Transport Tray Assembly

1. Locate the alignment blocks that are stored inside the library cabinet, below the
tape drive slots.
2. Insert the alignment blocks (Figure 13):
• For Spectra 12K libraries, lift the transport tray to above the middle point on
the robotic rack and insert the alignment blocks in the rack. The tabs on the
alignment blocks fit into parallel slots on the robotic rack.
• For Spectra 64K libraries, lift the transport tray almost to the top of the robotic
rack and insert the alignment blocks in the rack. The tabs on the alignment
blocks fit into parallel slots on the robotic rack.
3. Lower the transport tray so that it rests on the alignment blocks.
Transport Tray Assembly Replacement Guide

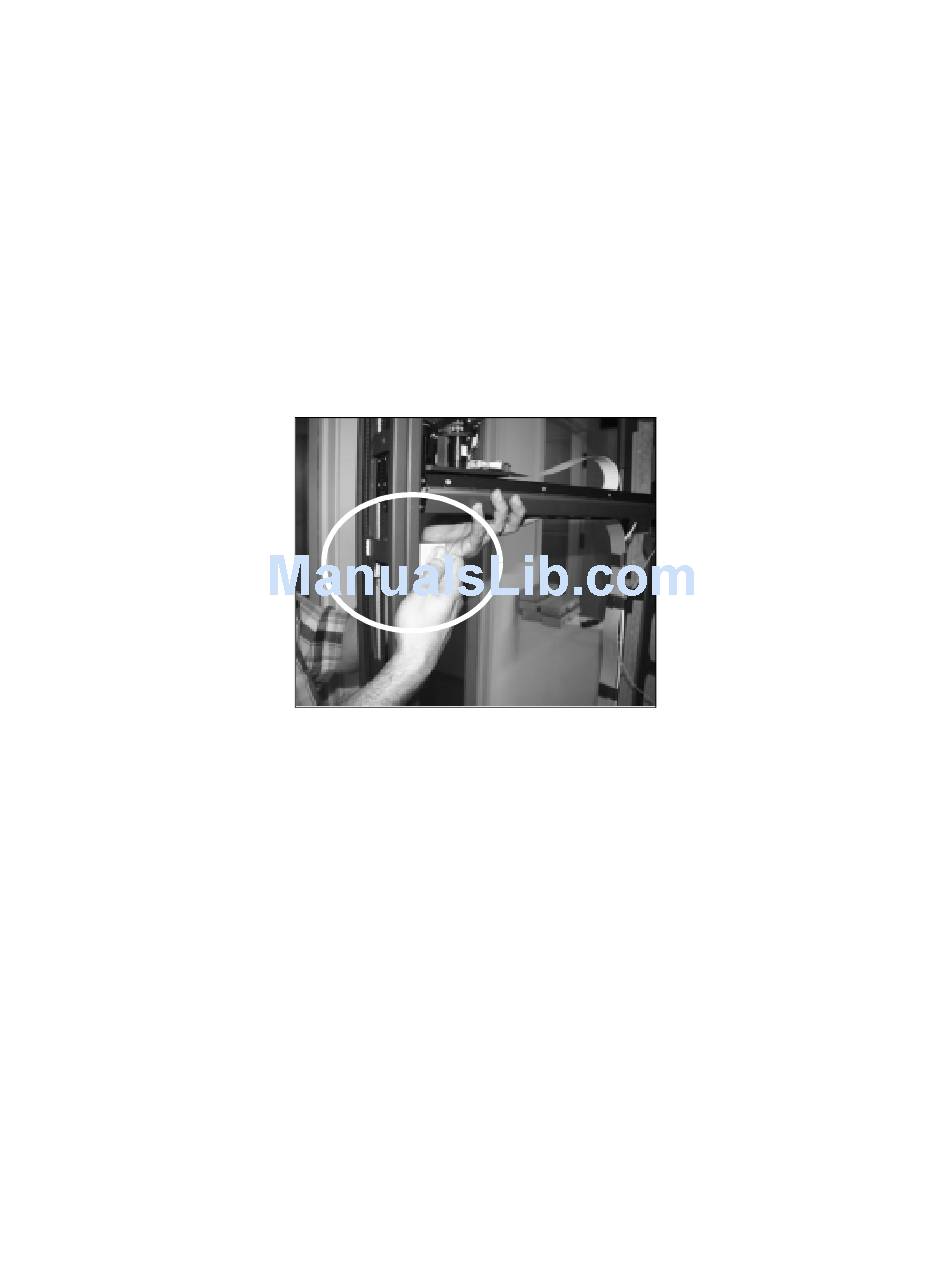

Figure 13 The transport tray alignment blocks.
