Remove the Fan, GEEC, QIPs and Power Supply

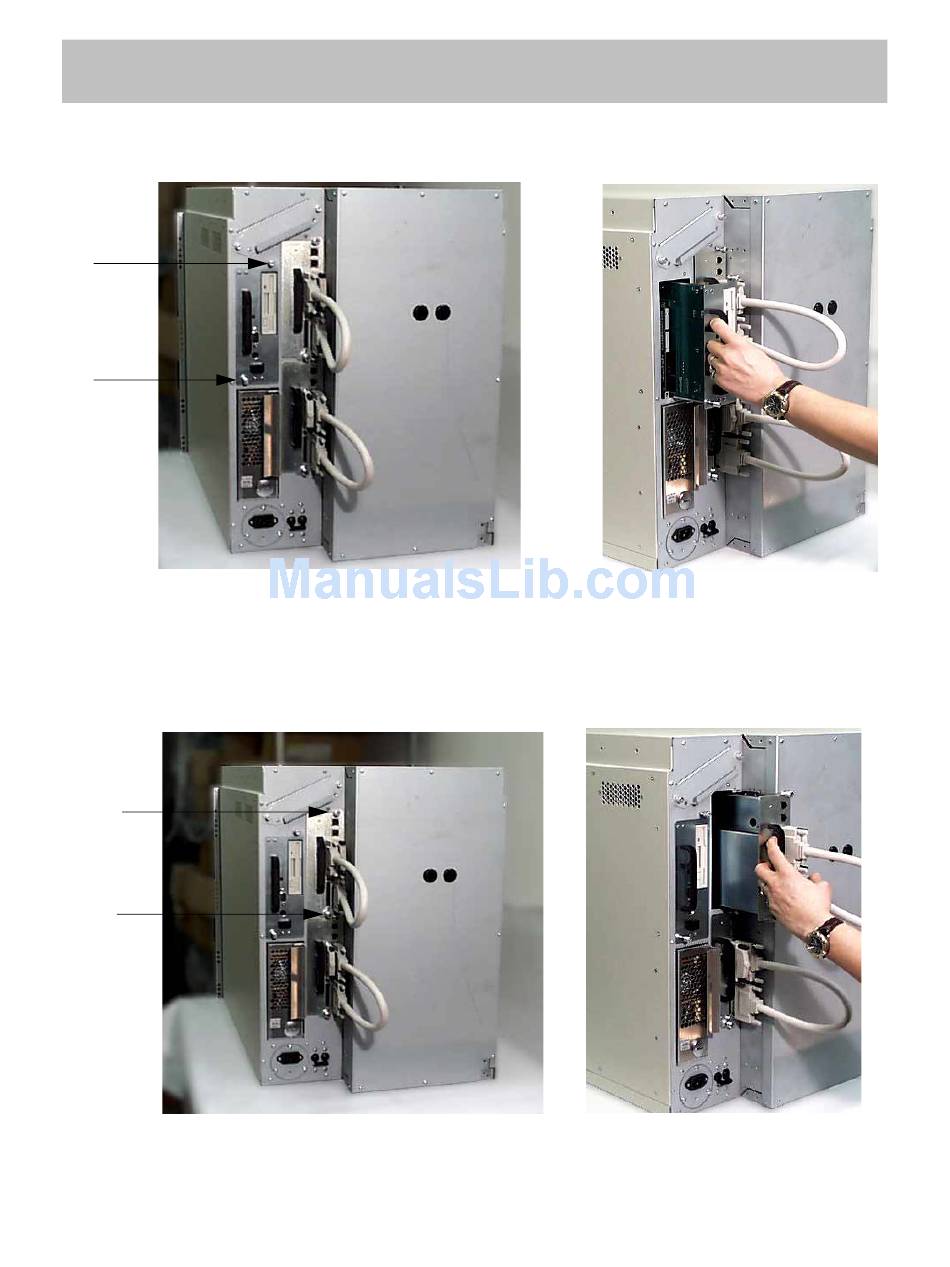

3. Use the flat head screwdriver to loosen the two captive screws connecting the GEEC to the
chassis (Figure 6).
GEEC
Captive
Screws
Figure 6.
Loosen the GEEC captive screws.
4. Pull the GEEC out by the handle (Figure 7).
5. Use the #2 Phillips screwdriver to loosen the two captive screws connecting each QIP to
the chassis (Figure 8).
QIP
Captive
Screws
Figure 8.
6. Pull the QIP assemblies out by the handle (Figure 9).
Spectra 12000 270-Pin to 300-Pin Passive QIP Upgrade Guide
Loosen the QIP captive screws.
Figure 7.
Remove the GEEC.
Figure 9.
Remove the QIP.
