Install the New Back Bay Panel
5. Fit the new back bay panel against the chassis. Make sure the panel is properly aligned.

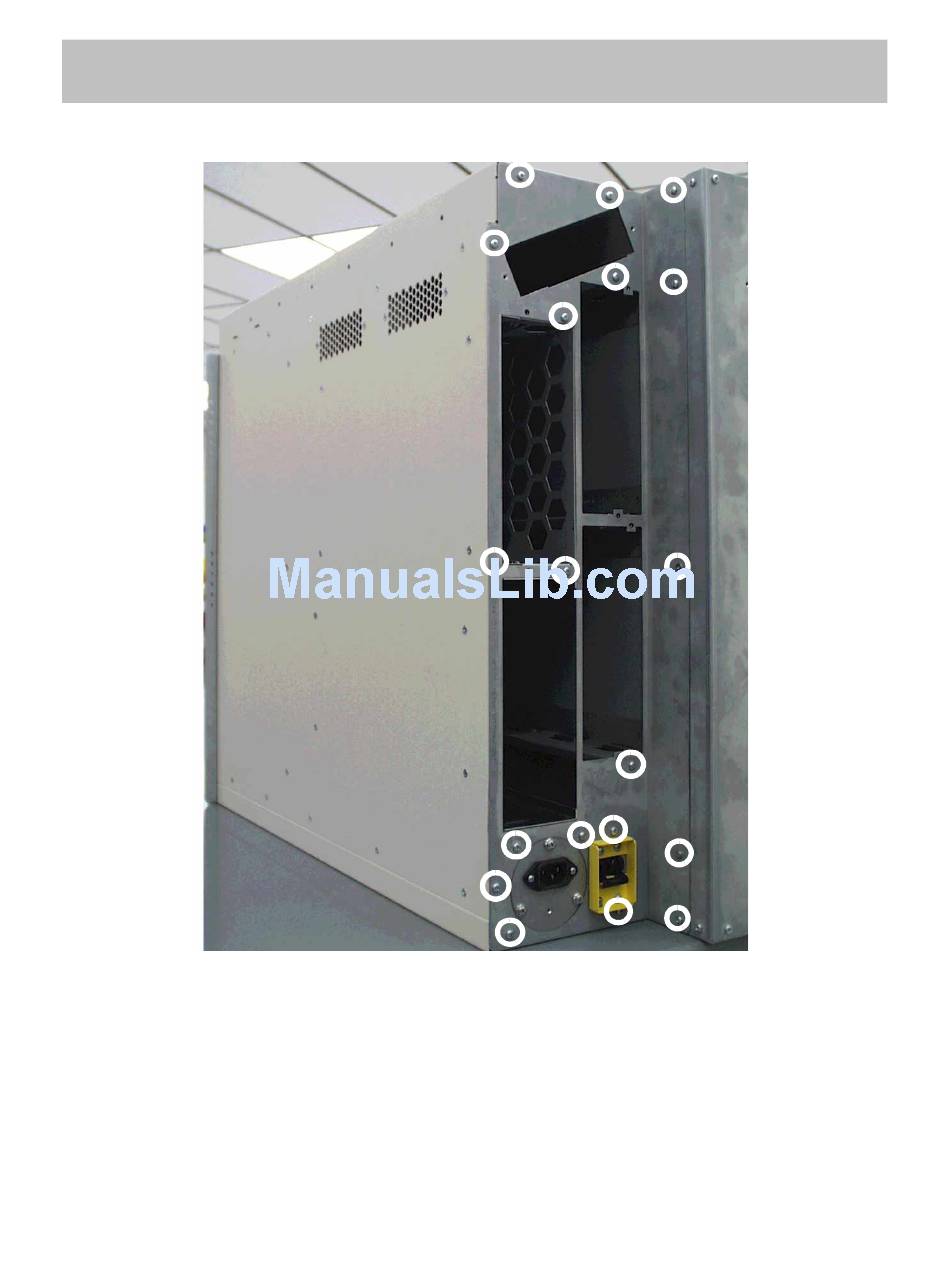

Figure 14.
Replace the back bay panel screws.
6. Use the #2 Phillips screwdriver to replace the 19 screws that hold the back bay panel to the
chassis (Figure 14).
Spectra 12000 270-Pin to 300-Pin Passive QIP Upgrade Guide
Page 13
