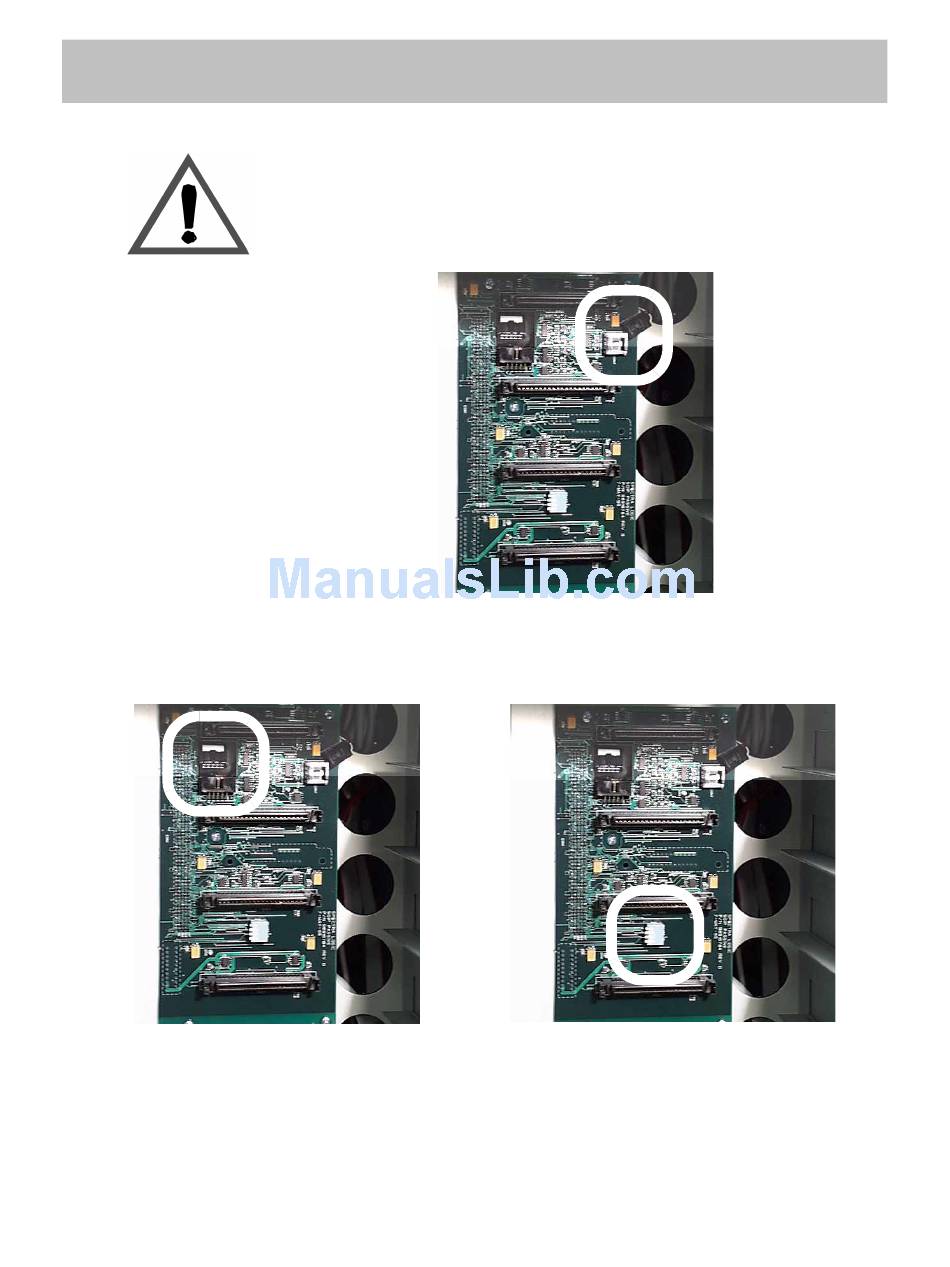

5. Attach the voltage-sense cable to the top passive QIP (Figure 24).
6. Attach the CAN cables to both passive QIPs (Figure 25).
Figure 25.
The voltage-sense and CAN cables.
7. Set the dip switches on each new passive QIP. Use the settings you noted on page 16.
8. Replace all drive sleds.
9. Close and lock the door.
Page 18
Install the New Passive QIPs
Warning: Failure to attach the voltage-sense cable before returning power to
the library will seriously damage the library.
Figure 24.
P.N. 90910883
Attach the voltage-sense cable.
Figure 26.
Set the dip switches.
