Install the New QIPs
QIPs
Figure 34.
Install the new QIPs.

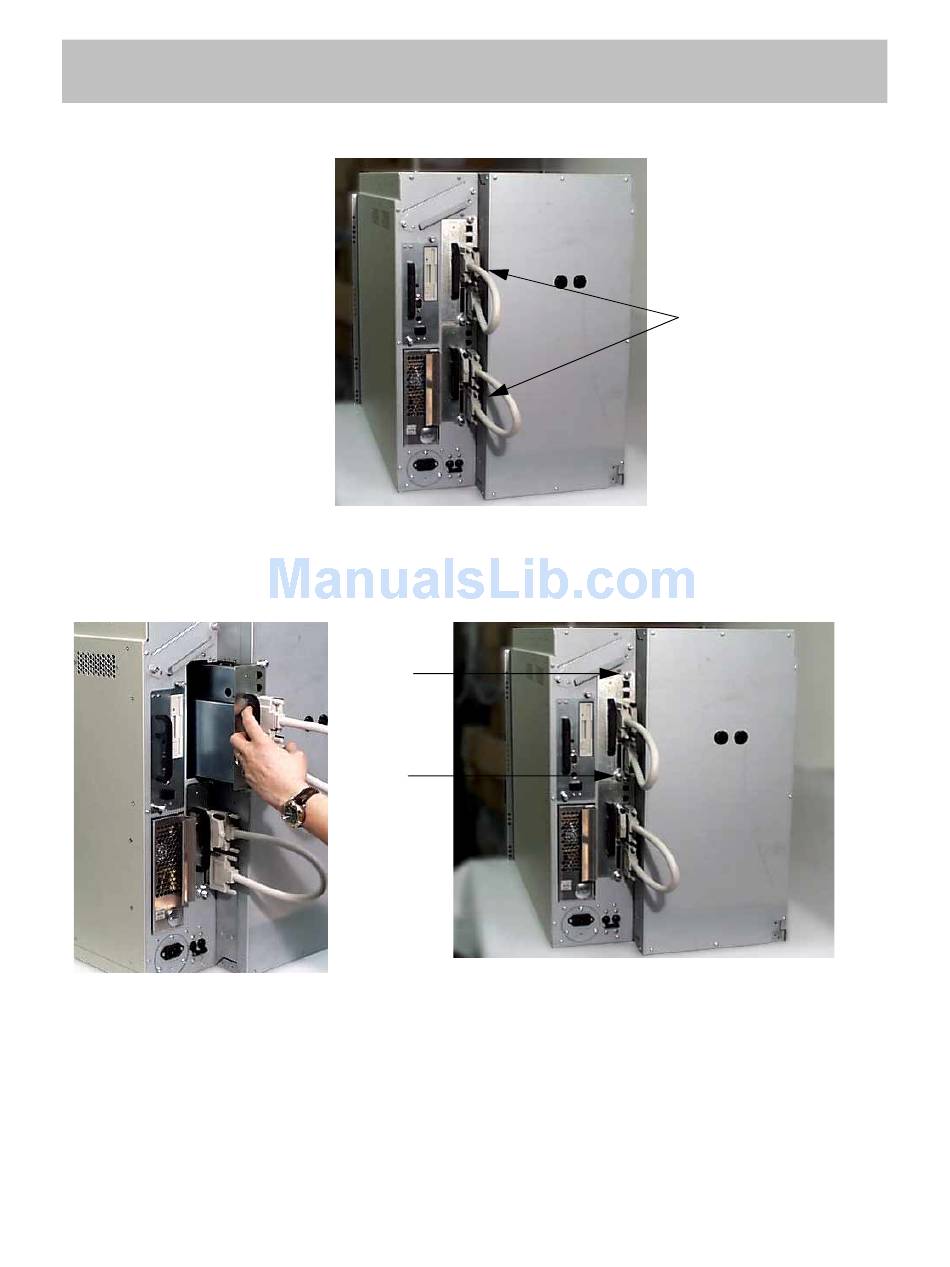

1. Slide the new QIPs into place (Figure 35).
QIP
Captive
Screws
Figure 35.
Figure 36.
Slide the QIPs into
Tighten the QIP captive screws.
place.
2. Use the #2 Phillips screwdriver to tighten the two captive screws connecting each QIP to
the chassis (Figure 36).
Spectra 12000 270-Pin to 300-Pin Passive QIP Upgrade Guide
Page 21
