Replace the Fan, GEEC and Power Supply

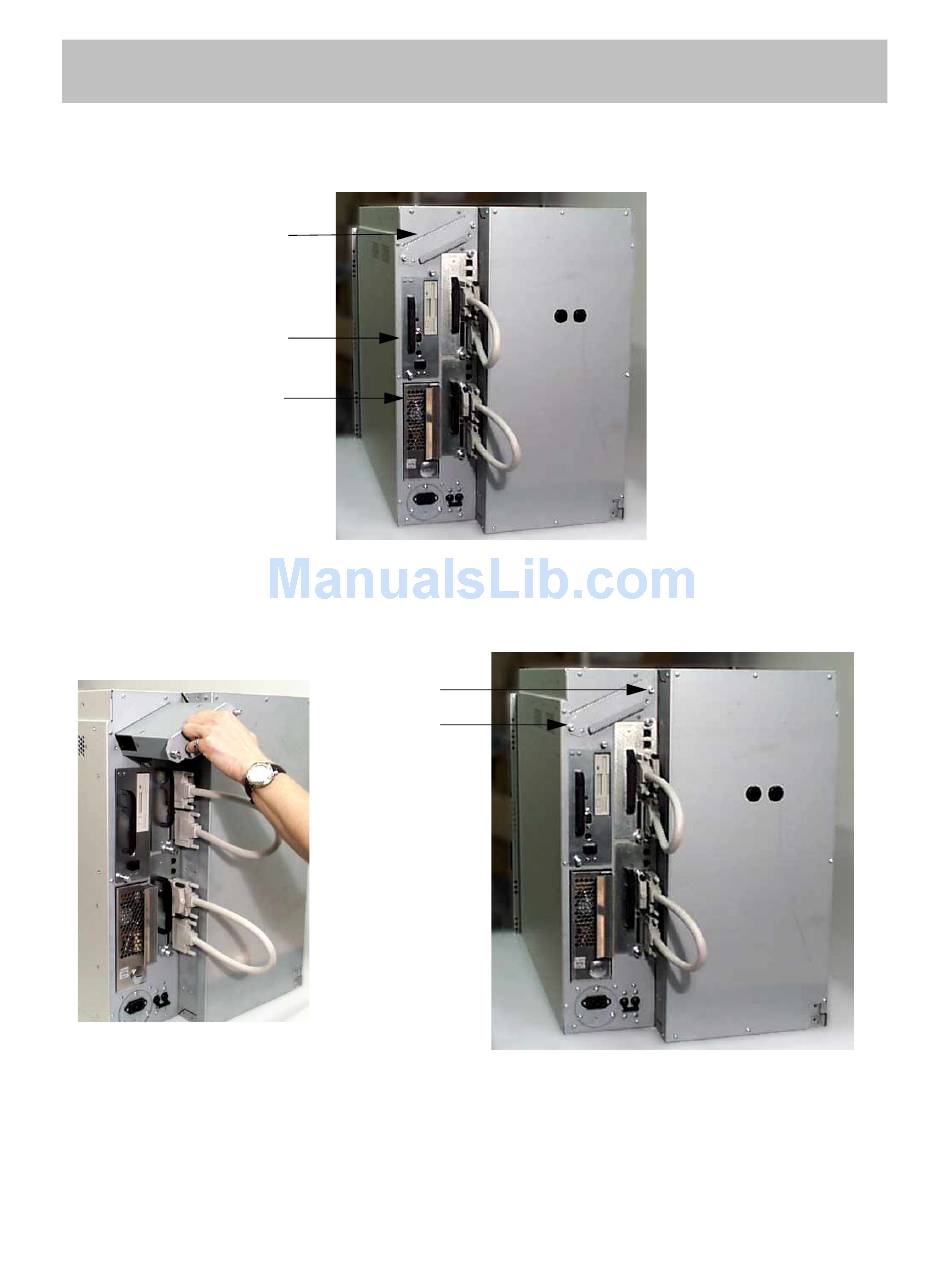

Replace the units shown below (Figure 27)
Fan
Assembly
GEEC
Board
Power
Supply
Figure 27.
Replace the fan, GEEC and power supply.
1. Slide the fan assembly into place (Figure 28).
Fan
Captive
Screws
Figure 28.
Figure 29.
Slide the fan
Tighten the fan assembly captive screws.
assembly into place.
2. Use the flat head screwdriver to tighten the two captive screws connecting the fan assembly
to the chassis (Figure 29).
Spectra 12000 270-Pin to 300-Pin Passive QIP Upgrade Guide
Page 19
