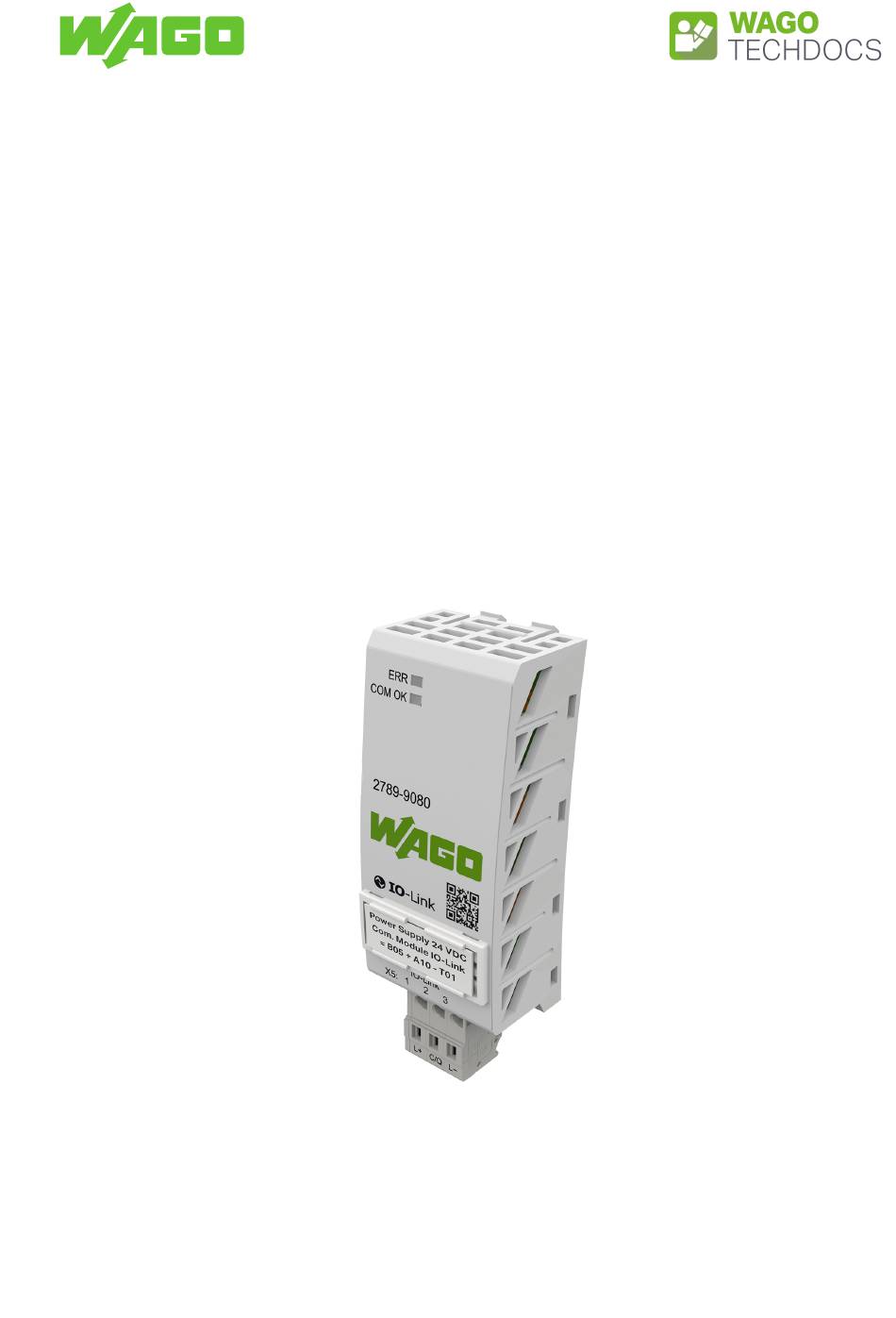

- Page 1 Communication Modules WAGO Communication Module IO-Link 2789-9080 | Version 1.1.0 /WAGO/...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. | Version: 1.1.0 Communication Module IO-Link...
-
Page 3: Table Of Contents
4.1.2 Parameters ...................... 17 General Module Parameters ................ 17 4.2.1 Specific Module Parameters of the WAGO Power Supply Pro 2 .... 18 4.2.2 Data Structure for WAGO Power Supplies Pro 2 ......... 18 4.2.3 Parameter Addresses for WAGO Power Supplies Pro 2 ...... 19 4.2.4... - Page 4 Messages and Events ................... 27 Error Messages for WAGO Power Supplies Pro 2 ........ 27 4.3.1 Events and Measured Values for WAGO Power Supply Pro 2 .... 27 4.3.2 Other........................ 28 IODD for WAGO Power Supplies Pro 2 ............ 28 4.4.1...
-
Page 5: Provisions
2789-9080 Provisions Provisions This document applies to the following product: 2789-9080 (IO-Link Communication Module) ü www.wago.com/2789-9080 Product detail page The product must only be installed and operated in accordance with the operating instruc- tions. Knowledge of the operating instructions is required for proper use. You can find all documents and information on the detailed product page. - Page 6 Provisions 2789-9080 ð This symbol identifies the result of an action. • Individual action step Lists • Lists, first level – Lists, second level Figures Figures in this documentation are for better understanding and may differ from the actual product design.
-
Page 7: Legal Information
1.2 Legal Information Intellectual property The intellectual property of this document belongs to WAGO GmbH & Co. KG. The repro- duction and distribution of its content (in whole or in part) is prohibited, unless otherwise provided by statutory provisions, written agreements or this document. In case of doubt, the written consent of WAGO GmbH &... -
Page 8: Safety
Safety 2789-9080 Safety 2.1 General Safety Rules • This documentation is part of the product. Therefore, retain the documentation during the entire service life of the product. Pass on the documentation to any subsequent user of the product. In addition, ensure that any supplement to this documentation is included, if necessary. -
Page 9: Thermal Safety
• Clean tools and materials are imperative for handling the product. • The product contains no parts that can be serviced by the user. Always have all ser- vice, maintenance and repair work performed by specialists authorized by WAGO. • Replace any defective or damaged devices. -
Page 10: Properties

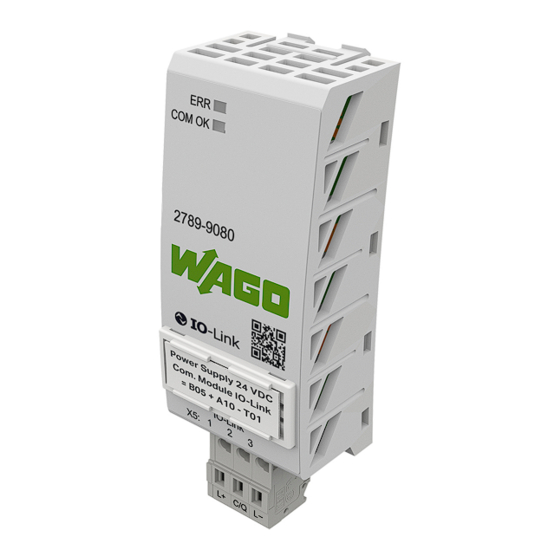

[} 16]). The IO-Link Communication Module enables communication with an IO-Link master. It is plugged onto the communication interface that is integrated on the front of the WAGO & Product Manual Power Supply Pro 2. You can find more information in the IO-Link Master. -
Page 11: Type Label
2789-9080 Properties 3.3 Type label The product’s type plate contains the following information: Figure 2: Type label Box for approvals 8 Approvals [} 14] Item Number Company logo and address Product name QR link with link to website Reference to product documentation Product-specific information 3.4 Product-specific information... -
Page 12: Connections
Properties 2789-9080 Position Comment Details ID number per D-U-N-S® Fixed information (WAGO Minden) WAGO item number or internal SAP number Product-specific Consecutive number Product-specific • Production date Production date and revision • Revision index (FW HW FL) Internal manufacturer product number... -
Page 13: Technical Data
2789-9080 Properties Indicator LED Description State Description Flashing (2 Hz) IO‑Link connection error Flashing (8 Hz) Connection error to the lower-level device COM OK Device status No connection to lower-level device Ready for operation Flashing (2 Hz) Communication active 3.7 Technical data 3.7.1 Product Table 4: Technical Data –... -
Page 14: Environmental Requirements
Properties 2789-9080 Property Value Device ID Depends on the used Power Suppl, see 8 De- vice IDs of WAGO Power Supplies Pro 2 [} 33]. Baudrate 230.4 bit/s (COM 3) Length PD 5 bytes Length PD 1 byte IO-Link Version 1.1.2 Interlock DS Lock, Parameter Access Lock... -
Page 15: Standards
2789-9080 Properties Logo Certification Body Standard Underwriters Laboratories UL 61010-2-201 Underwriters Laboratories UL 121201, Class I, Division 2, Groups A B C D, T4 Note More information on approvals You can find detailed information on the approvals online at: ü www.wago.com/<item number>... -
Page 16: Fieldbus Description
Fieldbus Description 2789-9080 Fieldbus Description 4.1 Technology 4.1.1 IO-Link Technology IO-Link defines a communication standard (acc. IEC 61131-9) for connecting both current digital inputs/outputs and intelligent IO-Link devices to the controller level. IO-Link de- vices describe sensors and actuators of the field level that have IO-Link functionality. -
Page 17: Parameters
2789-9080 Fieldbus Description 4.2 Parameters 4.2.1 General Module Parameters The product uses the following default IO-Link parameters: Table 14: Standard parameters of IO-Link Index Subin Parameters Data Type Daten- Description länge (Bytes) Device Access Locks RecordT Standardized Device lock- ing functions... -
Page 18: Table 15 Wago-Specific Parameters
Fieldbus Description 2789-9080 4.2.2 Specific Module Parameters of the WAGO Power Supply Pro 2 The product uses the following WAGO-specific parameters: Table 15: WAGO-specific parameters Index Subindex Parameters Data Type Data length Description (Bytes) 12001 Part number StringT Module item module... -
Page 19: Parameter Addresses For Wago Power Supplies Pro 2
2789-9080 Fieldbus Description Table 18: Control Data Structure Description Set device to standby Set DO 2 … 7 Reserved 4.2.4 Parameter Addresses for WAGO Power Supplies Pro 2 Table 19: Parameter Adresses Param- Access Data type Data Default set- Range Data Description... - Page 20 Fieldbus Description 2789-9080 Param- Access Data type Data Default set- Range Data Description inde eter Storage ting length (Bytes) 393 0 Over- read/write UIntegerT Yes 2.5 A: 0 mA 0 … 2500 mA Overload threshold load between > 0 A and 5 A: 0 mA 0 … 5000 mA warning rated current.
-
Page 21: Table 20 Parameters - Dc Output
2789-9080 Fieldbus Description Param- Access Data type Data Default set- Range Data Description inde eter Storage ting length (Bytes) 444 0 Operat- read/write UIntegerT Yes 0 h 0 … 65000 h Digital output be- havior settings (for hours options see 8 Configuration counter thresh-... -
Page 22: Password Handling
Fieldbus Description 2789-9080 4.2.4.1 Password Handling Note Device must be manually locked! After the lower-level device is unlocked, it is not automatically relocked. The device lock must be performed manually. “Password” Parameter The parameter is used in big-endian format. Only ASCII characters may be used (e.g., for password “123,”... -
Page 23: Stop Bits (Index 383)
2789-9080 Fieldbus Description 4.2.4.4 Stop bits (Index 383) Table 24: Selection options for stop bits Value IODD Value Description 4.2.4.5 Parity (Index 384) Table 25: Selection options for parity Value IODD Value Description None Even Even 4.2.4.6 Data format (Index 386) Table 26: Selection options for data formats... -
Page 24: Configuration Of Digital Input (Index 424)
Fieldbus Description 2789-9080 Enable switching the DC output on and off Bit 3 enables or disables the control of the output via cyclic process data. Table 30: Enable switching the DC output on and off via cyclic process data Bit 3... -
Page 25: Configuration Of Digital Output (Index 432)
2789-9080 Fieldbus Description Digital input settings Bits 10 to 12 control the settings of the digital input. Table 35: Digital input settings Bit 10 Bit 11 Bit 12 IODD Value Description Non-inverted normal, not inverted Inverted inverted Function triggered by low-high... -
Page 26: System/General (Index 445)
Fieldbus Description 2789-9080 Table 40: Enable switching DO on/off via process data Bit 4 IODD Value Description active enabled inactive disabled Digital output on The DO is controlled if “Enable switching DO on/off via process data” is enabled. Table 41: Digital output on... -
Page 27: Messages And Events
0x8158 Password protection active No parameter access; password protection en- abled Read Only Cyclic redundancy check 4.3.2 Events and Measured Values for WAGO Power Supply Pro 2 Table 48: Events – Warnings Index Bit Events – Warning Description 1539 Output under-voltage... -
Page 28: Other
An IODD (manufacturer's device description file) can be assigned to each connected IO- Link-capable product. This IODD contains the available parameters. You can find the IODD for WAGO products here: ü https://ioddfinder.io-link.com: 1. Enter WAGO as the manufacture on the search screen. -
Page 29: Transport And Storage
2789-9080 Transport and Storage Transport and Storage The original packaging offers optimal protection during transport and storage. • Store the product in suitable packaging, preferably the original packaging. • Only transport the product in suitable containers/packaging. • Make sure the product contacts are not contaminated or damaged during packing or unpacking. -
Page 30: Installation And Removal
Mounting Figure 7: Mounting Install the product by snapping it onto the WAGO Power Supply Pro 2 (see figure “Instal- lation”): 1. Remove the cap from the communication interface on the WAGO Power Supply Pro 2. Keep the cap in a safe place so that you can cover the communication interface again when this interface is not required. - Page 31 Only remove the product when it is switched off. Figure 8: Removal 1. Press the top locking tab (a) of the product [C]. 2. Pivot the product to remove it from the WAGO Power Supply Pro 2 [D]. NOTICE Avoid electrostatic discharge! The products are equipped with electronic components that you may destroy by electro- static discharge when you touch.
-
Page 32: Decommissioning
Decommissioning 2789-9080 Decommissioning 7.1 Disposal and Recycling WEEE Mark Electrical and electronic equipment may not be disposed of with household waste. This also applies to products without this mark. Electrical and electronic equipment contain materials and substances that can be harmful to the environment and health. -
Page 33: Appendix
2789-9080 Appendix Appendix 8.1 Device IDs of WAGO Power Supplies Pro 2 Table 50: Device IDs of the respective Pro 2 variant Article number Device ID 2787-2144 12591169 12591170 12591171 2787-2144/000-030 12591171 2787-2144/000-070 2787-2146 12591233 12591234 12591235 2787-2146/000-030 12591235 2787-2146/000-070 2787-2147... -
Page 34: Accessories
Appendix 2789-9080 Article number Device ID 2787-2157 12591619 2787-2157/000-030 2787-2157/000-070 2787-2344 12592195 2787-2344/000-030 2787-2344/000-070 2787-2346 12592259 2787-2346/000-030 2787-2346/000-070 2787-2357 12592323 2787-2357/000-030 2787-2357/000-070 2787-2358 12592387 2787-2358/000-030 2787-2358/000-070 8.2 Accessories The following accessories are available for the product: Accessories – Tools Table 51: Accessories – Tools... - Page 35 2789-9080 Appendix ® • BACnet is a registered trademark of the American Society of Heating, Refrigerating and Air Conditioning Engineers, Inc. (ASHRAE). ® • Bluetooth is a registered trademark of Bluetooth SIG, Inc. ® ® • CiA and CANopen are registered trademarks of CAN in AUTOMATION – Interna- tional Users and Manufacturers Group e.V.
- Page 36 EMV – Immunity to Interference ..................Table 13 EMC – Emission of Interference ..................Table 14 Standard parameters of IO-Link..................Table 15 WAGO-specific parameters ....................Table 16 Process Data Structure...................... Table 17 Status Message Structure....................Table 18 Control Data Structure .......................
- Page 37 2789-9080 List of Tables Table 37 Load current warning level exceeded ................Table 38 Electronic circuit breaker tripped..................Table 39 Power supply switched off (latched) .................. Table 40 Enable switching DO on/off via process data ..............Table 41 Digital output on .........................
- Page 38 List of Figures 2789-9080 List of Figures Figure 1 View ..........................Figure 2 Type label ........................Figure 3 Product-specific information ..................Figure 4 IO-Link X5 port......................Figure 5 Visual Status Indicator ....................Figure 6 3-Wire Connection Technology (Based on Physics 2 of the IO-Link Specification 1.0.0)..........................
- Page 39 2789-9080 List of Figures | Version: 1.1.0 Communication Module IO-Link...
- Page 40 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Copyright – WAGO GmbH & Co. KG – All rights reserved. The content and structure of the WAGO websites, catalogs, videos and other WAGO media are subject to copyright. Distri- bution or modification of the contents of these pages and videos is prohibited. Furthermore, the content may neither be copied nor made available to third parties for commercial pur-...
