Turning On And Setting The Equipment - CARDIOSTRONG EX80 Plus Assembly And Operating Instructions Manual

4.3

Turning on and setting the equipment

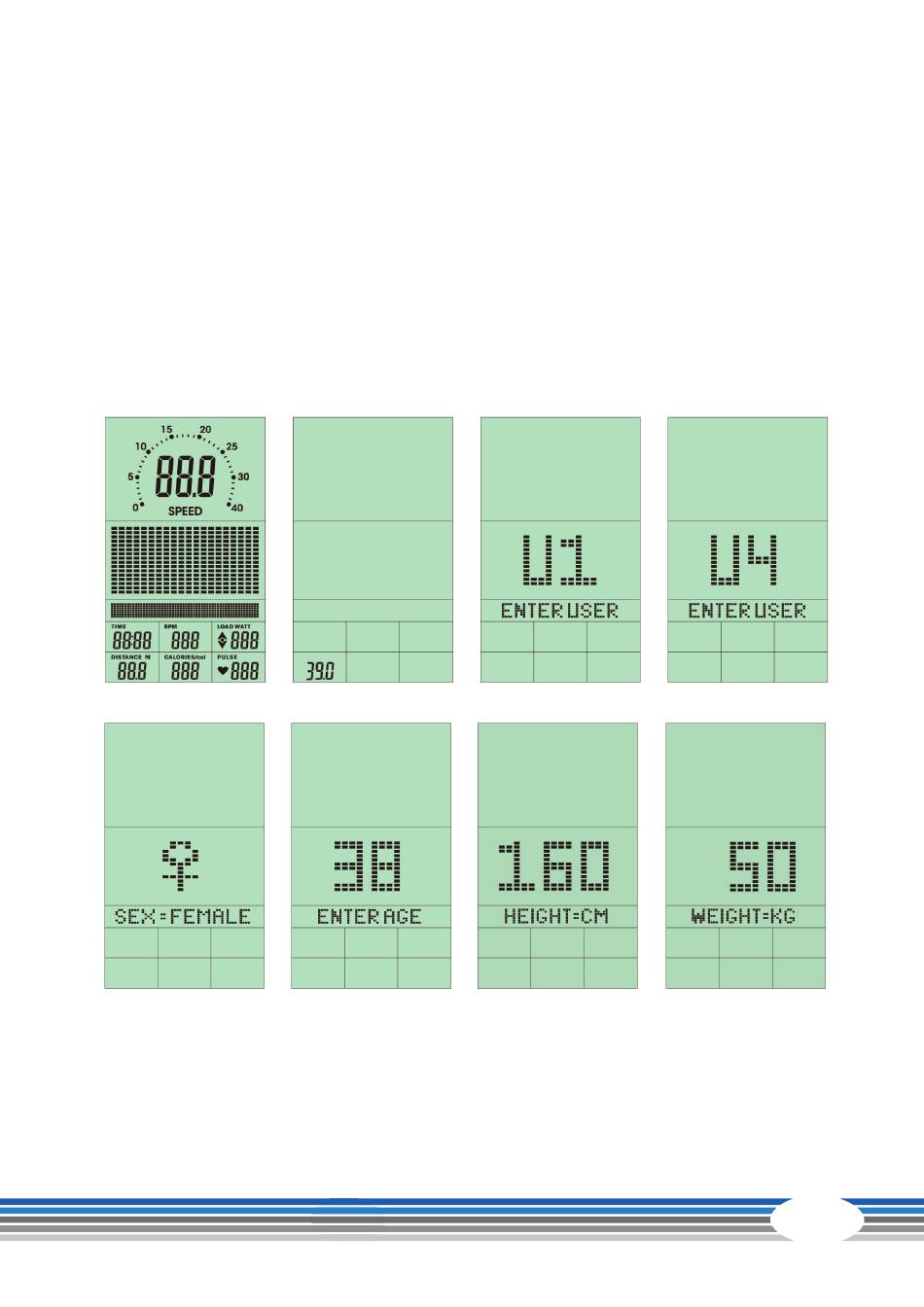

Connect the power cable with the console and press the RESET button for two seconds. An alarm
will sound for two seconds and the specification 78.0 will be displayed in the lower left window (see
figure 1 and 2).
The console has four user accounts (U1 - U4). Rotate the adjusting knob in order to select a user 1
- 4 and press ENTER to confirm (see figure 3 and 4). Use the adjusting knob or the ENTER button to
execute the settings for SEX (select male or female), AGE (age in years), HEIGHT (height in cm) and
WEIGHT (weight in kg) (see figure 5 - 8).
Figure 1
Figure 5
Figure 2
Figure 6
Figure 3
Figure 7
Figure 4
Figure 8
25
