Step 5:
Assembly of the handles
(1) Remove the six pre-mounted screws (J10 and J11) from the left handle (E1).
(2) See view F: Mount left handle (E1) on main frame (A) and tighten all screws (J10 and J11) with two
6mm Allen wrenches.
(3) Repeat the assembly (E2) on the right side (E2).

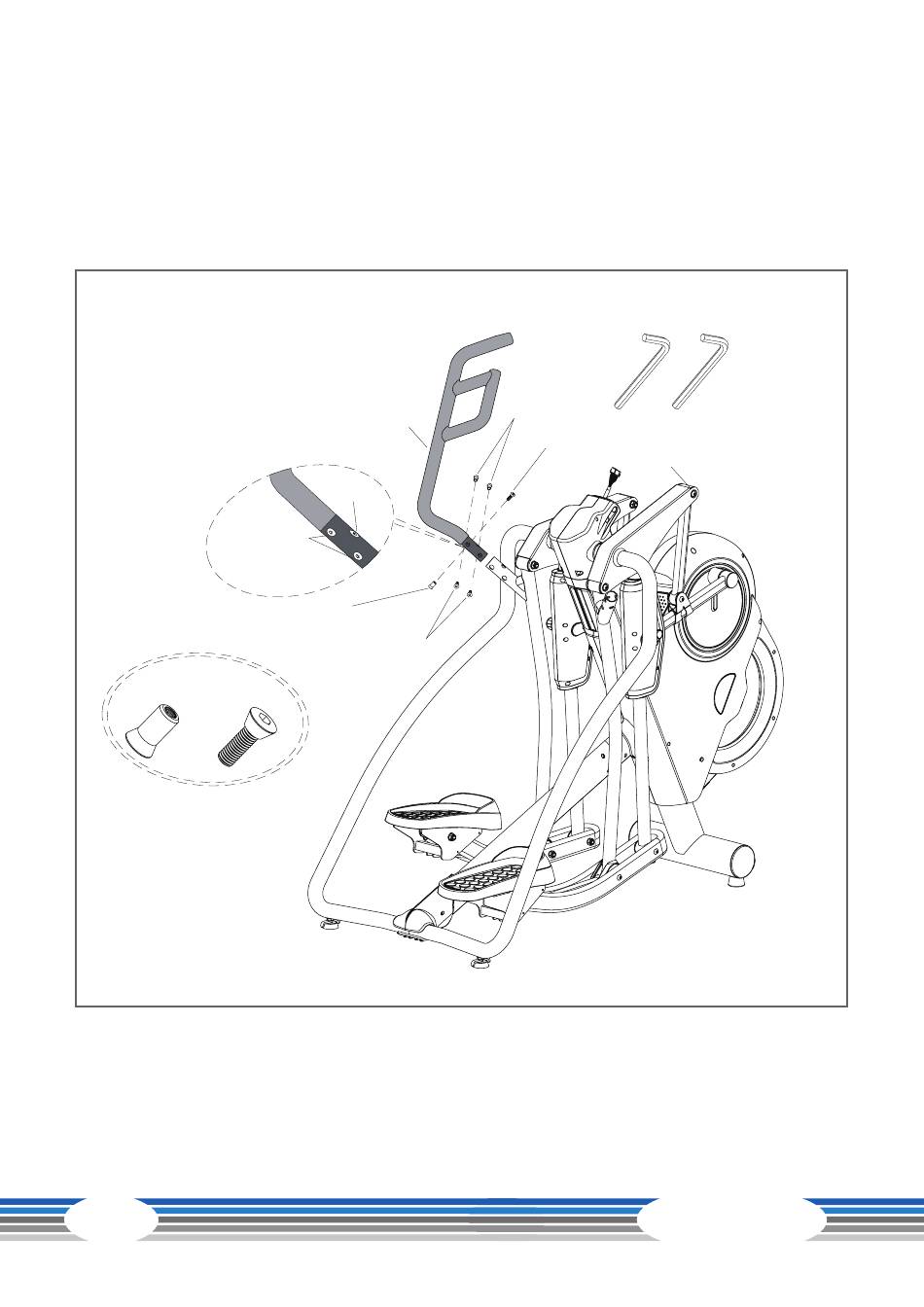

Ansicht F
View F
J11
J10
16
E1
J10
J10
J11*6
J10*6
J11*6
J10*6
A
EX80 Plus
6m/m*2
