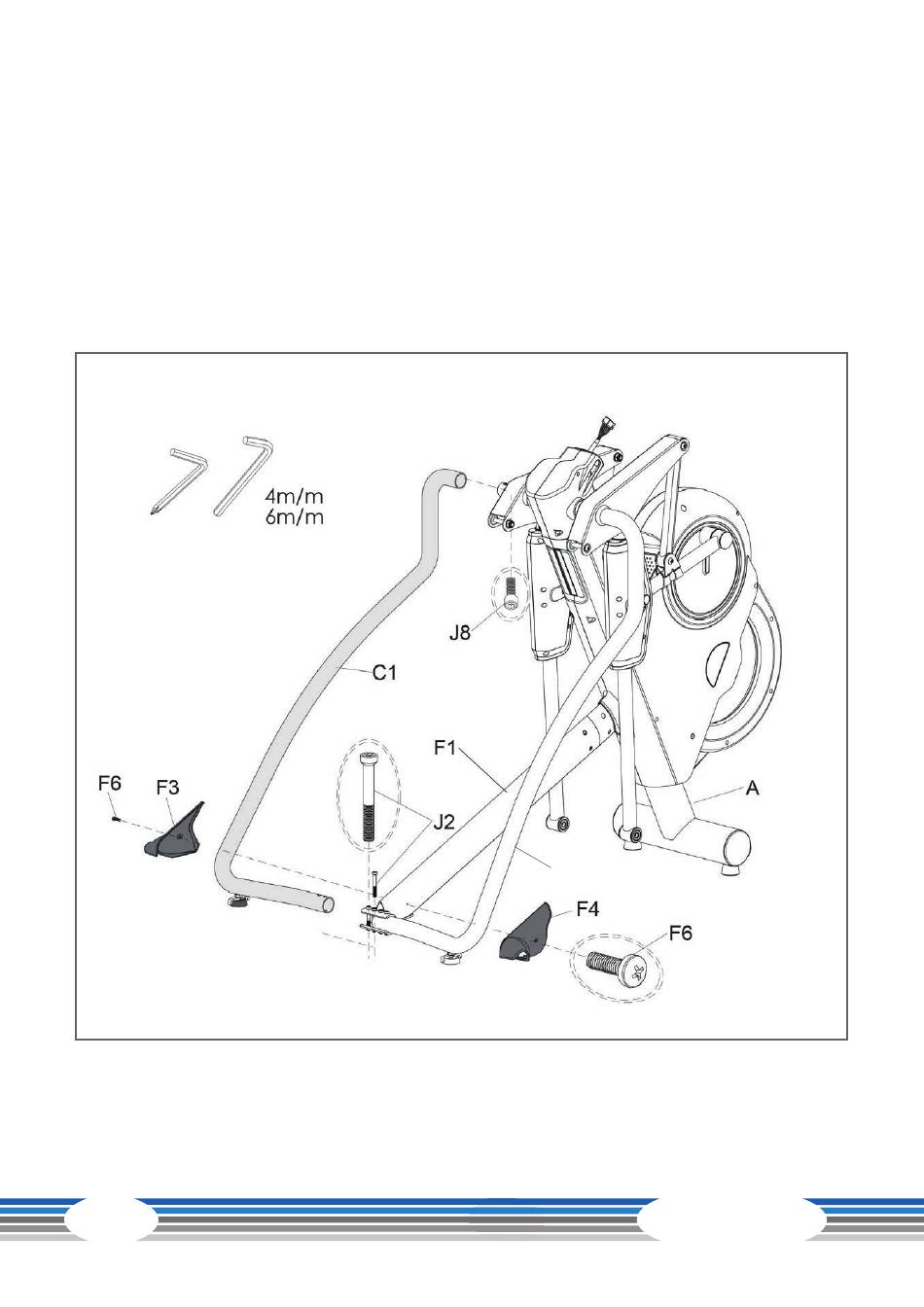

Step 3: Assembly of the left supporting foot and joint cover
(1) Mount the left connecting tube (C1) with the main frame (A) on the top with the screw (J8) and
on the bottom with the two screws (J2) with the clamp (F2) - just like the right tube (C2) in figure 2.
(2) Now all screws (J8, J2) of steps 2 and 3 can be tightened.
(3) Remove two screws (F6) from the connecting mast (F1).
(4) Connect joint covers (F3 and F4) with connecting mast (F1) and tighten with screws (F6)
C2
