AXIOMTEK GOT5103W-845 User Manual

All-in-one 10.1” wxga tft fanless touch panel computer with intel celeron processor n3060 onboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT5103W-845
All-in-One
10.1" WXGA TFT Fanless Touch Panel
Computer with Intel® Celeron® Processor
N3060 onboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT5103W-845 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT5103W-845

Summary of Contents for AXIOMTEK GOT5103W-845

  • Page 1 GOT5103W-845 All-in-One 10.1” WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060 onboard User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Disconnect the power cords from the GOT5103W-845 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT5103W-845 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................2 Specifications ..................3 Dimensions ..................5 I/O Outlets .................... 6 Packing List ..................8 Chapter 2 Hardware and Installation ...... 9 SBC87845 Jumpers and Connectors..........
  • Page 5 System ....................43 4.1.1 Windows 7, 8.X, 10 ................... 43 Touch Screen ..................44 4.2.1 Specification ....................44 4.2.2 Driver Installation- Windows 7/8.X/10 ............44 Embedded O.S................... 45 4.3.1 WES 7 & WE8S ..................45 Appendix A Watchdog Timer &DIO Programming ..47 About Watchdog Timer ................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    GOT5103W-845 User’s Manual Chapter 1 Introduction This chapter contains general information and detailed specifications of the GOT5103W-845. Chapter 1 includes the following sections:  General Description  Specifications  Dimensions  I/O Outlets  Package List Introduction...

  • Page 8: General Description

    GOT5103W-845 User’s Manual General Description The GOT5103W-845 is a fan-less and compact-size touch panel computer, equipped with a 10.1” TFT LCD display, project capacitive multi-touch and low power consumption Intel® Celeron® Processor N3060 (2M Cache, up to 2.48 GHz). The GOT5103W-845 supports Windows 7, Windows 8.x, Windows 10 and Windows embedded OS.

  • Page 9: Specifications

    1 x Mini-card slot (supports mSATA, optional)  Storage  One mSATA  One half-slim SSD  Power connector  GOT5103W-845-PCT-J: 12VDC w/external 60W AC Adapter with screw type connector or  GOT5103W-845-PCT-24VDC : 24VDC with phoenix power connector or Introduction...

  • Page 10: System Specification

    GOT5103W-845 User’s Manual System Specification  10.1” WXGA(1289x800) LCD with LED backlight  Project capacitive multi-touch  Fanless Heat Dispensing Design  Disk drive housing:  One half-slim SSD(optional)  One mSATA  Net Weight  1.08 Kgs (2.38 lb) ...

  • Page 11: Dimensions

    GOT5103W-845 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT5103W-845. Introduction...

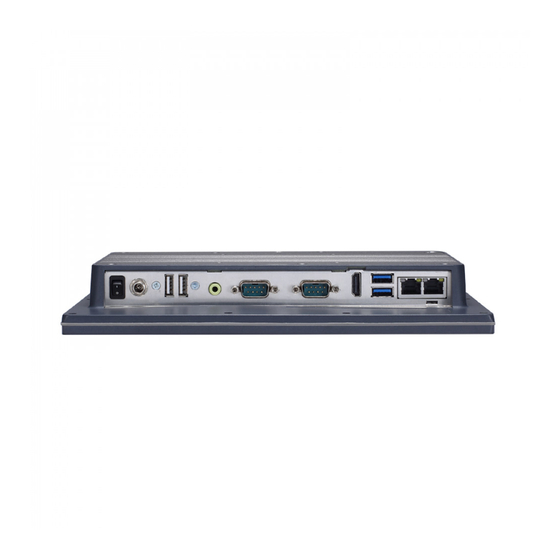

  • Page 12: I/O Outlets

    GOT5103W-845 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT5103W-845. Function Function POWER SWITCH (ATX) COM 2(RS-232) Power Input connector (Phoenix) HDMI Power Input connector (Screw) USB 3.0 x 2 USB 2.0 x 2...
  • Page 13 Function Function Power LED orange: display off Display on/off green : display on HDD LED Volume -/+ Brightness -/+ Mic in NOTE The volume control function only can be performed under the windows operation system with AXIOMTEK volumeSYNC program. Introduction...

  • Page 14: Packing List

    GOT5103W-845 x 1  Driver CD x 1  Phoenix connector x1 (for GOT5103W-845-DC and GOT5103W-845-24VDC)  Power Adapter & power cord (for GOT5103W-845-J) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 15: Hardware And Installation

    GOT5103W-845 User’s Manual Chapter 2 Hardware and Installation The GOT5103W-845 provides rich I/O ports and flexible expansions for you to meet different demand. The chapter will show you how to install the hardware. It includes:  SBC87845 Jumpers and Connectors ...

  • Page 16: Sbc87845 Jumpers And Connectors

    GOT5103W-845 User’s Manual SBC87845 Jumpers and Connectors Component Side Hardware and Installation...

  • Page 17: Solder Side

    GOT5103W-845 User’s Manual Solder Side Hardware and Installation...

  • Page 18: Jumper Settings

    GOT5103W-845 User’s Manual 2.1.1 Jumper Settings Making the proper jumper settings configure the SBC87845 to match the needs of your application. The following table shows the default jumper settings for the onboard devices. ★ Default Setting Jumper Jumper Setting ★ OSD function: LCD ON/OFF...

  • Page 19: Connectors

    GOT5103W-845 User’s Manual 2.1.2 Connectors The connectors allow the CPU Board to connect with other parts of the system. Ensure that all connectors are in place and firmly attached. The following table lists the function of each connector on the SBC87845...
  • Page 20 GOT5103W-845 User’s Manual LVDS connector: CN2 Pin Assignment Description Description LVDSA_DATAN0 LVDSB_DATAN2 LVDSA_DATAP0 LVDSB_DATAP2 Resolution selection[0] Resolution selection[1] LVDSA_DATAN1 LVDSA_DATAN3 LVDSB_DATAN3 LVDSA_DATAP1 LVDSB_DATAN0 LVDSA_DATAP3 LVDSB_DATAP3 LVDSB_DATAP0 LVDSA_DATAN2 LVDSA_CLKN LVDSB_CLKN LVDSA_DATAP2 LVDSB_DATAN1 LVDSA_CLKP LVDSB_CLKP Resolution selection[2] LVDSB_DATAP1 Resolution selection[3] OSD connector: CN4...
  • Page 21 GOT5103W-845 User’s Manual HDD power connector: CN6 Description +12V SIM card connector: CN8 Description Description UIM PWR UIM RST UIM VPP UIM CLK UIM DATA DIO connector: CN9 Description GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 +3.3V GPIO7 Hardware and Installation...
  • Page 22 GOT5103W-845 User’s Manual Power connector: CN10 Description DCIN (+12V) DCIN (+12V) Power button connector: CN12 Description Description PWBTN TOUCH connector: CN13 Description Sense Lin/Mic In connector: CN16 Description Description LIN IN R LIN IN L MIC IN Speaker connector: CN17...
  • Page 23 GOT5103W-845 User’s Manual System Fan connector: CN18 Description +12V / Speed control output Fan speed detect USB2.0 connector: CN19 Description Description USB- USB- USB+ USB+ +5V Standby Power connector: CN28, CN29 Description Description +5V_SBY  COM port Connector The pin assignment of RS-232/RS-422/RS-485 is listed on the following table.

  • Page 24: Ethernet

    GOT5103W-845 User’s Manual Ethernet The GOT5103W-845 is equipped with two high performance Plug and Play Ethernet interfaces, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 25: Mountings -Panel/Wall/Desktop/Vesa

    2.3.1 Panel-Mounting The GOT5103W-845 is designed for panel mount application. A set of standard mounting kit are bundled with the system package that you can use it to mount the GOT5103W-845. Step1 Sticks 4 sealing pads on the edges of chassis.

  • Page 26: Vesa-Arm/Wall-Mount

    GOT5103W-845 User’s Manual 2.3.2 VESA-ARM/Wall-Mount The GOT5103W-845 provides VESA mount: 75x75 mm. Screw four screws to fix the kit in the back chassis. Step1 Find out the screws as marked on the back side of chassis. Step2 Assemble the VESA bracekt to the back side of the chassis, and fix the screws.

  • Page 27: Half-Slim Ssd Installation

    GOT5103W-845 User’s Manual Half-slim SSD Installation The GOT5103W-845 provides an optional half-slim SSD for users to install. Please refer to the following instructions for installation: Step 1 Turn off the system, and unplug the power cord. Step 2 Remove the back cover.
  • Page 28 GOT5103W-845 User’s Manual Step 4 Plug the data and power cable to half-slim SSD. Screws the half-slim SSD into the system, and Installation complete. Hardware and Installation...

  • Page 29: Dram Installation

    GOT5103W-845 User’s Manual DRAM Installation The GOT5103W-845 provides one 204-pin DDR3L SODIMM socket that support system memory up to 8GB. Please follow steps below to install the memory modules: Step 1 Open the back cover and find out the DIMM socket on main board(SBC87845).
  • Page 30 GOT5103W-845 User’s Manual Step 3 Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are levered upwards and clipped on to the edges of the DIMM. Hardware and Installation...

  • Page 31: Mini Card Installation

    Mini Card Installation 2.6.1 Wireless LAN Card Installation The GOT5103W-845 provides two Mini card slots for user to install wireless LAN cards. You can choose either slot 1 or slot 2 to install the wireless LAN card and refer to the following...
  • Page 32 GOT5103W-845 User’s Manual Step 3 Sticks antenna cables on the chassis as below. Step 4 There are two connectors on wireless LAN card. One is MAIN, and the other is Secondary. Connect antenna cable to MAIN connector on wireless LAN card.

  • Page 33: Msata Card Installation

    GOT5103W-845 User’s Manual 2.6.2 mSATA Card Installation The GOT5103W-845 provides one Mini card slot for user to install mSATA. Please choose the slot 2 when installing the mSATA card and refer to the following instructions and illustration: Step 1 Open the back cover and find out the mini-card slot on main board.

  • Page 34: Power Input (Phoenix Type)

    GOT5103W-845 User’s Manual Power Input (Phoenix type) GOT5103W-845 equips with a phoenix type power connector. It adopts 24VDC. Please follow the signs on power connector to connect DC power source. －:Power negative +: Power positive NOTE The safety ground must be connected to ensure the unit working appropriately.

  • Page 35: Chapter 3 Ami Bios Setup Utility

    GOT5103W-845 User’s Manual Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process.

  • Page 36: Main Menu

    GOT5103W-845 User’s Manual Main Menu  System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow>...

  • Page 37: Advanced Menu

    GOT5103W-845 User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ...
  • Page 38 GOT5103W-845 User’s Manual  NCT6106D Super IO Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option AMI BIOS Setup Utility...
  • Page 39 GOT5103W-845 User’s Manual  Serial Port 1-2 configuration 1. Serial port: This option used to enable or disable the serial port. 2. Device Setting: This item specifies the base I/O port address and Interrupt Request address of serial port. The port 1 Optimal setting is 3F8/IRQ4.
  • Page 40 GOT5103W-845 User’s Manual  Hardware Monitor This screen shows the Hardware Health Status in real time.  ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 41 GOT5103W-845 User’s Manual  CPU Configuration This screen shows the CPU Configuration and intel virtualization technology enable/disable selected.  SATA Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option.
  • Page 42 GOT5103W-845 User’s Manual  USB Configuration This screen shows the USB Configuration.  Utility Configuration This screen shows the Utility Configuration. AMI BIOS Setup Utility...
  • Page 43 GOT5103W-845 User’s Manual  PCIE/mSATA Mini Card Configuration This screen shows the PCIE/mSATA Mini Card Configuration. Here are the options for your selection, PCIE, mSATA. AMI BIOS Setup Utility...

  • Page 44: Chipset Menu

    GOT5103W-845 User’s Manual Chipset Menu The Chipset menu gives the North Bridge memory information and South Bridge TXE information.  North Bridge This screen shows the North Bridge memory information. AMI BIOS Setup Utility...
  • Page 45 GOT5103W-845 User’s Manual  South Bridge This screen shows the South Bridge TXE information. AMI BIOS Setup Utility...

  • Page 46: Security

    GOT5103W-845 User’s Manual Security AMI BIOS Setup Utility...

  • Page 47: Boot Menu

    GOT5103W-845 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Setup Prompt Timeout...

  • Page 48: Save & Exit

    GOT5103W-845 User’s Manual Save & Exit AMI BIOS Setup Utility...

  • Page 49: Chapter 4 Drivers Installation

    Chapter 4 Drivers Installation System GOT5103W-845 supports Windows 7, Windows 8.1, Windows 10 ,WES 7 and WE8S. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. 4.1.1 Windows 7, 8.X, 10 Insert Driver CD and select the “\Drivers”.

  • Page 50: Touch Screen

    Windows 7 & Windows 8.x support. 4.2.2 Driver Installation- Windows 7/8.X/10 The GOT5103W-845 (resistive touch model )provides a touch screen driver that users can install it under the operating system Windows 7/8.x/10. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.

  • Page 51: Embedded O.s

    GOT5103W-845 User’s Manual Follow the installing procedure and press OK. Embedded O.S. The GOT5103W-845 provides the WES 7 and WE8S Embedded. The O.S. is supported devices which are listed below. 4.3.1 WES 7 & WE8S Here are supported onboard devices: Onboard Multi I/O ...
  • Page 52 GOT5103W-845 User’s Manual This page is intentionally left blank. Drivers Installation...

  • Page 53: Appendix A Watchdog Timer &Dio Programming

    GOT5103W-845 User’s Manual Appendix A Watchdog Timer &DIO Programming About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.

  • Page 54: Wdt Sample Program

    GOT5103W-845 User’s Manual WDT Sample Program Enable WDT 1.Enable configuration -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 08 3. WDT Device Enable -O 2E 30 -O 2F 01 4. Set timer unit -O 2E F0 -O 2F 00 ...

  • Page 55: How To Use Dio Software Programming

    GOT5103W-845 User’s Manual How to Use DIO Software Programming Digital I/O Software Programming  I2C to GPIO PCA9554  I2C address: 0b01000000. Watchdog Timer...
  • Page 56 GOT5103W-845 User’s Manual Watchdog Timer...

  • Page 57: Appendix B Volume Control

    Volume Control About Volume Control Axiomtek offers the volume control tool under Windows 7 Windows 8 and Windows 10, people can adjust the system volume depending on your personal taste and the amount of ambient volume in the room after installing the volume control tool.
  • Page 58 GOT5103W-845 User’s Manual Volume Control...
  • Page 59 GOT5103W-845 User’s Manual Volume Control...
  • Page 60 GOT5103W-845 User’s Manual Volume Control...
  • Page 61 GOT5103W-845 User’s Manual Volume Control...
  • Page 62 GOT5103W-845 User’s Manual Step 2 System auto reboot, installation completed. Volume Control...
  • Page 63 GOT5103W-845 User’s Manual Select “△” icon then finding out the “Axiomtek” to ensure the volume driver Step 3 is installed appropriately. Step 4 How to use the Volume Control Select volume +- to adjust the system volume. Volume Control...

  • Page 64: Removed Volume Control Tool

    GOT5103W-845 User’s Manual Removed Volume Control Tool Step 1 Go to Control Panel -> Programs -> Programs and Features. Select Uninstall on AxAVC_Setup. Volume Control...
  • Page 65 GOT5103W-845 User’s Manual Follow the procedures and press “Close”. Step 2 Volume Control...
  • Page 66 GOT5103W-845 User’s Manual Step 3 System auto reboot, uninstallation completed. Volume Control...
