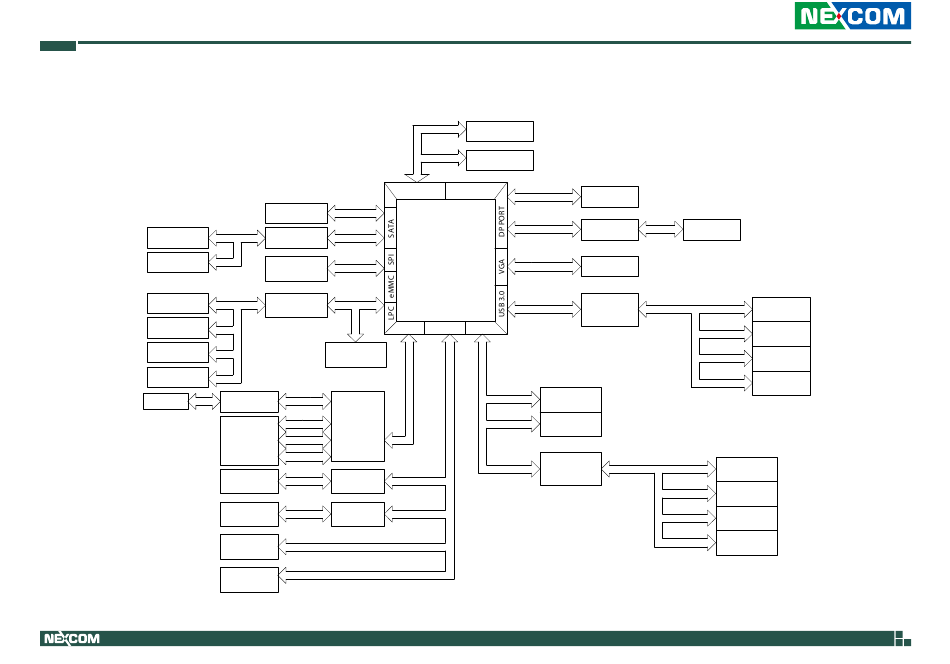

Block Diagram

SATA CONN
mSATA Slot
PS/2
KB/Mouse
GPIO
2X5 2.54mm
LPT
2X13 2.54mm
COM
1~3 RS-232/422/485
4,6 RS-232
SPKR CONN
SPKR
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
SATA CONN SATA PORT: 0
SATA PORT: 1 SATA Switch SATA PORT: 1
SPI BIOS SPI BUS
NCT6106
SATA PORT: 1 LPC BUS
HDA
TPM
(LPC 80 PORT)
AUDIO AMP
FRONT OUT
TPA6047A4R
REALTEK
LINE OUT
ALC888
AUDIO JACK
LINE IN
SPDIF OUT
REALTEK
LAN CONN
MDI BUS PCI-E*1 BUS PORT: 3
R8111H
RJ45
REALTEK
LAN CONN
MDI BUS PCI-E*1 BUS PORT: 4
R8111H
RJ45
PCIE SLOT
PCI-E*1 BUS PORT: 1
PCI-E*1 BUS PORT: 2
MINI PCIE
DDR3L NON-ECC
DDR3L CH A
DIMM 1
DDR3L NON-ECC
DDR3L CH B
DIMM 2
DDR3L
DISPLAY PORT B
DISPLAY PORT C
BAY TRAIL
27 x 25 mm VGA BUS
TYPE3
USB3.0 BUS PORT 0
PCIE BUS USB 2.0
USB CONN
PORT: 2
TYPE A
USB CONN
PORT: 1
TYPE A
USB 2.0 HUB
PORT: 3
GL850G
29
HDMI CONN
CH7511B
LVDS1 CONN
LVDS1
DP TO LVDS
VGA CONN
DB15
USB 3.0 HUB
BOX HEADER
HUB PORT: 3
ASM1074
2X10 2.0mm
BOX HEADER
HUB PORT: 2
2X10 2.0mm
USB CONN
HUB PORT: 1
USB CONN
HUB PORT: 0
PIN HEADER
HUB PORT: 3
2X5 2.54mm
PIN HEADER
HUB PORT: 2
2X5 2.54mm
PIN HEADER
HUB PORT: 1
2X5 2.54mm
PIN HEADER
HUB PORT: 0
2X5 2.54mm
TYPE A
TYPE A
