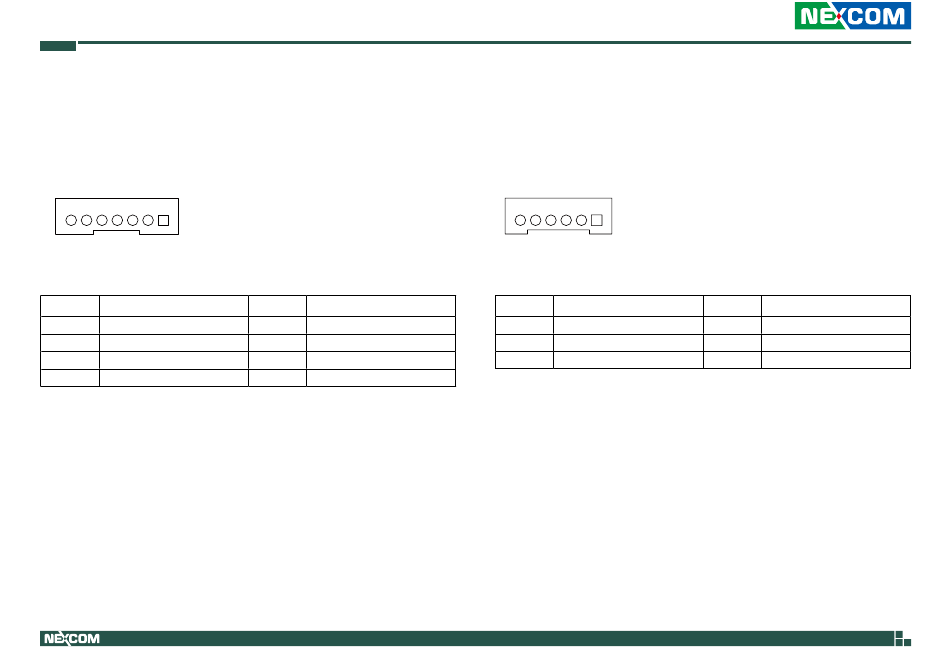

Chapter 2: Jumpers and Connectors
Backlight Volume Control
Connector type: 1x7 7-pin header
Connector location: BLT_VOL1
7
1
Pin
Definition
1
GPIO_VOL_UP
3
PWRDN
5
LVDS1 BLDW
7
GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GPIO_VOL_DW
4
LVDS1 BLUP
6
GND
Backlight Power Connector
Connector type: 1x6 6-pin header
Connector location: BLT_PWR1
6
1
Pin
Definition
1
GND
3
BL CTL
5
LCD_BLT_VCC
24
Pin
Definition
2
GND
4
BL EN
6
LCD_BLT_VCC
NEX 650-ADU User Manual
