Chapter 2: Jumpers and Connectors

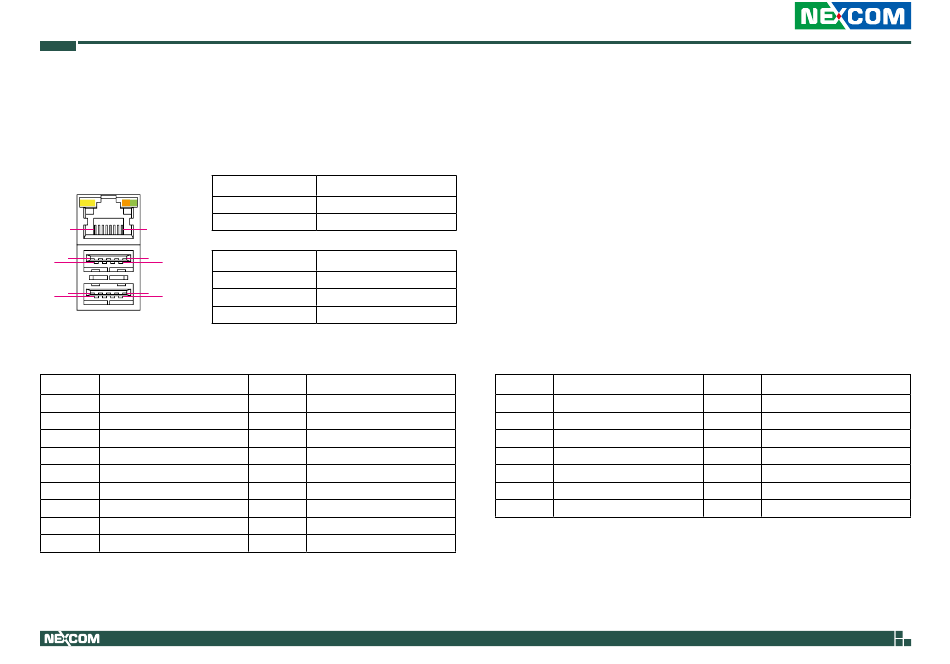

LAN1 and USB 3.0 Ports

Connector type: RJ45 port with LEDs
Dual USB 3.0 ports, Type A
Connector location: LAN1
ACT LINK
27 20
18 14
10 13
9 5
1 4
USB
Pin Definition
1 +5V_USB3_P12
3 USB2_C_P1
5 USB3_RX_C_N1
7 GND
9 USB3_TX_C_P1
11 USB2_C_N2
13 GND
15 USB3_RX_C_P2
17 USB3_TX_C_N2
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 USB2_C_N1
4 GND
6 USB3_RX_C_P1
8 USB3_TX_C_N1
10 +5V_USB3_P12
12 USB2_C_P2
14 USB3_RX_C_N2
16 GND
18 USB3_TX_C_P2
LAN
Pin Definition
19 LAN0_VCT
21 MDI0N_LAN0
23 MDI1N_LAN0
25 MDI2N_LAN0
27 MDI3N_LAN0
29 LAN0_ACT_P
31 LAN0_LINK100#
17
Pin Definition
20 MDI0P_LAN0
22 MDI1P_LAN0
24 MDI2P_LAN0
26 MDI3P_LAN0
28 GND
30 LAN0_LED_ACT#
32 LAN0_1000_P
