Connecting An Rm / Btc With A Host Pc Via Rdp - Pepperl+Fuchs VisuNet RM Shell 6 Manual

VisuNet RM Shell 6
How-Tos
11.3

Connecting an RM / BTC with a Host PC via RDP

Note
This chapter describes how to connect an RM / BTC with a PC via RDP.
To ensure communication between an RM / BTC and PC, both devices must be part of the
same network and subnet. If you use both devices in a network with a direct connection, the
DHCP server issues the IP addresses automatically.
To connect an RM / BTC with a PC, Pepperl+Fuchs recommends that you do the configuration
in 2 steps:
• Step 1: PC Configuration
•
•
• Step 2: RM / BTC Configuration
•
•
Step 1: PC Configuration
Assigning IP Address of the PC Manually
1.

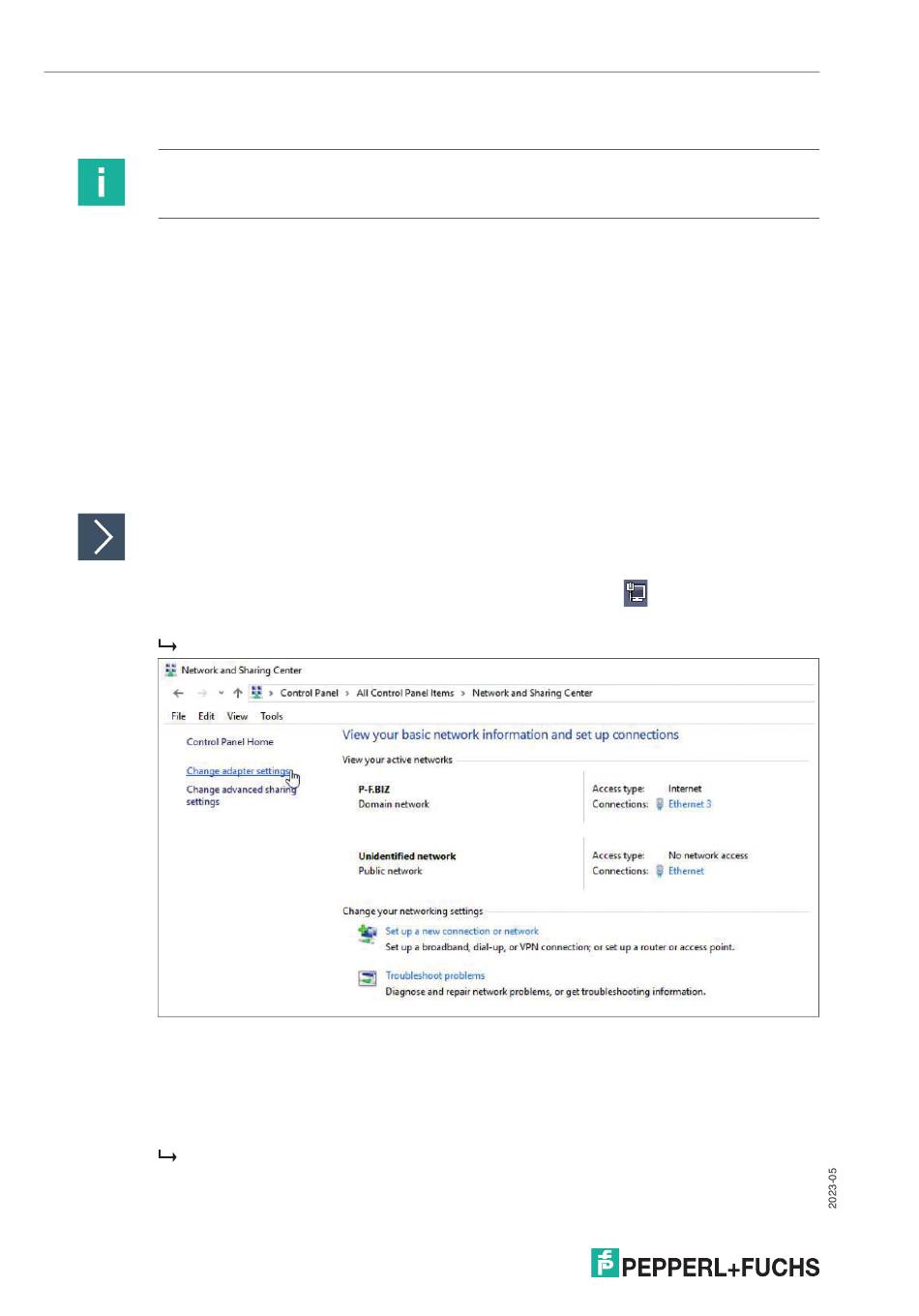

Open the "Network and Sharing Center" in the task bar by clicking
Sharing Center".
The "Network and Sharing Center" window opens.
2.
From the navigation bar, choose "Change adapter settings."
3.
Search for the network connection that shows your physical network port hardware component.
The physical network port hardware component is recognizable by its name in the third line
(e.g., "Intel(R) 82579LM...")
4.
Right-click on the network connection and choose "Properties".
The "Local Area Connection Properties" window opens.
134
Manual assignment of the IP address
Activation of the RDP Server Function
Manual assignment of the IP address
Creation of an RDP profile
and click "Network and
