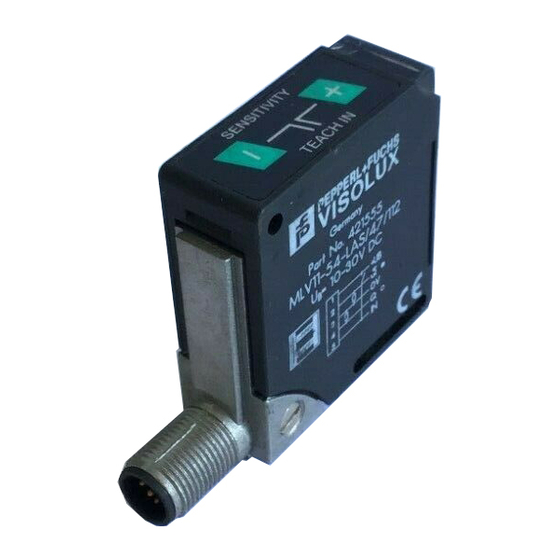

MLV11 Series - Introduction
Parameter settings
Through-beam type (M11/MV11...),
reflextype (MLV11-54...),
diffuse type (MLV11-8), light guide
connection type (MLV11-LL)
Parameter:
- Outputs:
- Pre-fault signal:
- Switch freq. → Switch delay:
- Hysteresis:
- Time function 1:
- Time function 2:
- Pulse frequency:
- Keypad settings:
- Input functions:
- Input inverted:
- Parameterisation disable:
Subject to reasonable modifications due to technical advances.
1
Pepperl+Fuchs Group • Tel.: Germany (06 21) 7 76-0 • USA (330) 4 25 35 55 • Singapore 7 79 90 91 • Internet http://www.pepperl-fuchs.com
Parameterisation via optical interface (PC or handheld).
Default settings underlined
•
N.O. and pre-fault
•
N.C. and pre-fault
•
Antivalent
•
dynamic
•
static
•
OFF
→
•
1 kHz
0.5 ms
→
•
500 Hz
1 ms
→
•
250 Hz
2 ms
→
•
100 Hz
5 ms
→
•
50 Hz
10 ms
→
•
20 Hz
25 ms
for application-optimised interference suppression
•
small
•
standard
•
large
•
none
•
ON delay (0.1 s to 25.5 s in 0.1 s steps)
•
none
•
OFF delay (0.1 s to 25.5 s in 0.1 s steps)
•
Pulse extension (1 ms to 255 ms in 1 ms steps)
•
One shot output function (1 ms to 255 ms in 1 ms steps)
•
Pulse frequency 1
•
Pulse frequency 2
•
Pulse frequency 3
•
OFF
•
automatic
•
always
•
none
•
Test (emitter deactivation)
•
AND-Logic-Operation
•
OR-Logic-Operation
•
XOR-Logic-Operation
•
NC/NO switching
•
Function reserve test (normal operation with half transmission power) only for
MLV11... sensors.
•
TEACH-IN (level controlled) only for MLV11... sensors
•
LATCH only for MLV11... sensors.
•
D-Flipflop only for MLV11... sensors
•
all control input functions can be inverted
•
OFF
•
ON
