- Page 1 Functional Safety SMART Transmitter Power Supply/SMART Current Driver KCD2-SCS-(Ex)2(.SP) Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Functional Safety KCD2-SCS-(Ex)2(.SP) Contents Introduction ............5 Content of this Document . - Page 4 Functional Safety KCD2-SCS-(Ex)2(.SP) Contents...
-
Page 5: Introduction
Additionally, the following parts may belong to the documentation, if applicable: • EU-type examination certificate • EU declaration of conformity • Attestation of conformity • Certificates • Control drawings • FMEDA report • Assessment report • Additional documents For more information about Pepperl+Fuchs products with functional safety, see www.pepperl-fuchs.com/sil. -
Page 6: Safety Information
Functional Safety KCD2-SCS-(Ex)2(.SP) Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. The personnel must have read and understood the instruction manual and the further documentation. -
Page 7: Symbols Used
Functional Safety KCD2-SCS-(Ex)2(.SP) Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage. -
Page 8: Product Description

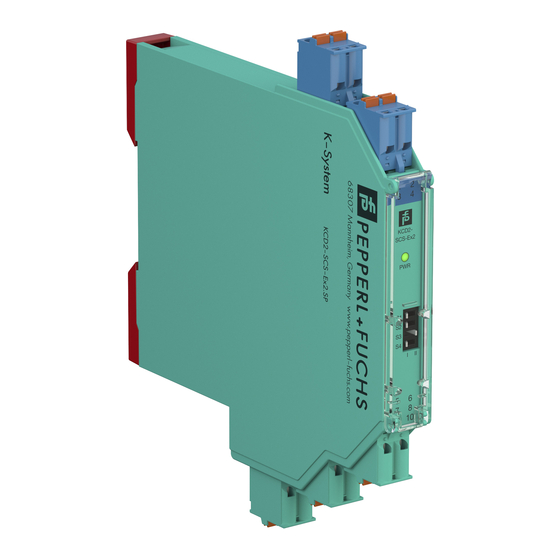

Functional Safety KCD2-SCS-(Ex)2(.SP) Product Description Product Description Function KCD2-SCS-2(.SP) This signal conditioner provides galvanic isolation between field circuits and control circuits. Each device channel works as a transmitter power supply or a current driver. The device transfers data by using a current signal. The device supports a bi-directional communication for SMART devices that use current modulation to transmit data and voltage modulation to receive data. -
Page 9: Marking
Functional Safety KCD2-SCS-(Ex)2(.SP) Product Description Marking Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com KCD2-SCS-2, KCD2-SCS-2.SP, Up to SIL 2 KCD2-SCS-Ex2, KCD2-SCS-Ex2.SP Standards and Directives for Functional Safety Device specific standards and directives Functional safety IEC/EN 61508, part 1 – 7, edition 2010:... -
Page 10: Planning
Functional Safety KCD2-SCS-(Ex)2(.SP) Planning Planning System Structure 3.1.1 Low Demand Mode of Operation If there are two control loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 11: Assumptions
Functional Safety KCD2-SCS-(Ex)2(.SP) Planning Assumptions The following assumptions have been made during the FMEDA: • Failure rate based on the Siemens standard SN 29500. • Failure rates are constant, wear is not considered. • External power supply failure rates are not included. •... -
Page 12: Safety Function And Safe State
Functional Safety KCD2-SCS-(Ex)2(.SP) Planning Safety Function and Safe State Safe State Device as an Analog Input The safe state is present when the output current is < 3.6 mA or > 21.5 mA. Device as an Analog Output The safe state is present when the output current is < 4 mA. Safety Function Device as an Analog Input The safety function of the device is fulfilled, as long as the output repeats the input current... -
Page 13: Characteristic Safety Values
Functional Safety KCD2-SCS-(Ex)2(.SP) Planning Characteristic Safety Values Device as an Analog Input in 1oo1 Structure Parameters Characteristic values Assessment type and Full assessment documentation Device type Mode of operation Low demand mode or high demand mode Safety function Control side output value of < 3.6 mA or > 21.5 mA 0 FIT ... - Page 14 Functional Safety KCD2-SCS-(Ex)2(.SP) Planning Device as an Analog Output in 1oo1 Structure Parameter Characteristic values Assessment type and Full assessment documentation Device type Mode of operation Low demand mode or high demand mode Safety function Control side output value of < 4.0 mA 0 FIT ...
-
Page 15: Useful Lifetime
As noted in DIN EN 61508-2:2011 note N3, appropriate measures taken by the manufacturer and plant operator can extend the useful lifetime. Our experience has shown that the useful lifetime of a Pepperl+Fuchs product can be higher if the ambient conditions support a long life time, for example if the ambient temperature is significantly below the maximum ambient temperature. -
Page 16: Mounting And Installation
Functional Safety KCD2-SCS-(Ex)2(.SP) Mounting and Installation Mounting and Installation Mounting and Installing the Device Observe the safety instructions in the instruction manual. Observe the information in the manual. Observe the requirements for the safety loop. Connect the device only to devices that are suitable for this safety application. Check the safety function to ensure the expected output behavior. -
Page 17: Operation
Functional Safety KCD2-SCS-(Ex)2(.SP) Operation Operation Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. • Do not bypass the safety function. •... - Page 18 Functional Safety KCD2-SCS-(Ex)2(.SP) Operation Proof Test Procedure Put out of service the entire safety loop. Protect the application by means of other measures. Prepare a test set-up, see figures below. Test the devices. Verify the current values as given in the tables below. Set back the device to the original settings for the application after the test.
- Page 19 Functional Safety KCD2-SCS-(Ex)2(.SP) Operation Device as an Analog Output Step Set input value (mA) Set output value R () Mandatory measuring points load (safety-relevant) output value (mA) 20.00 20.00 ± 0.40 12.00 12.00 ± 0.40 4.00 4.00 ± 0.40 23.00 23.00 ±...
-
Page 20: Maintenance And Repair
Report all failures in the safety function that are due to functional limitations or a loss of device function – especially in the case of possible dangerous failures. In these cases, contact your local sales partner or the Pepperl+Fuchs technical sales support (service line). -
Page 21: List Of Abbreviations
Functional Safety KCD2-SCS-(Ex)2(.SP) List of Abbreviations List of Abbreviations Emergency Shutdown Failure In Time in 10 Failure Mode, Effects, and Diagnostics Analysis FMEDA Probability of safe failure Probability of dangerous detected failure Probability of dangerous undetected failure Probability of failures of components in the safety loop that have ... - Page 22 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany / DOCT-8369A...
