UM2538
Configure and run the motor control from the STM32 Nucleo motor-control pack
2.
Connect the three motor wires U,V,W to the CN1 connector as shown in
Figure
4.

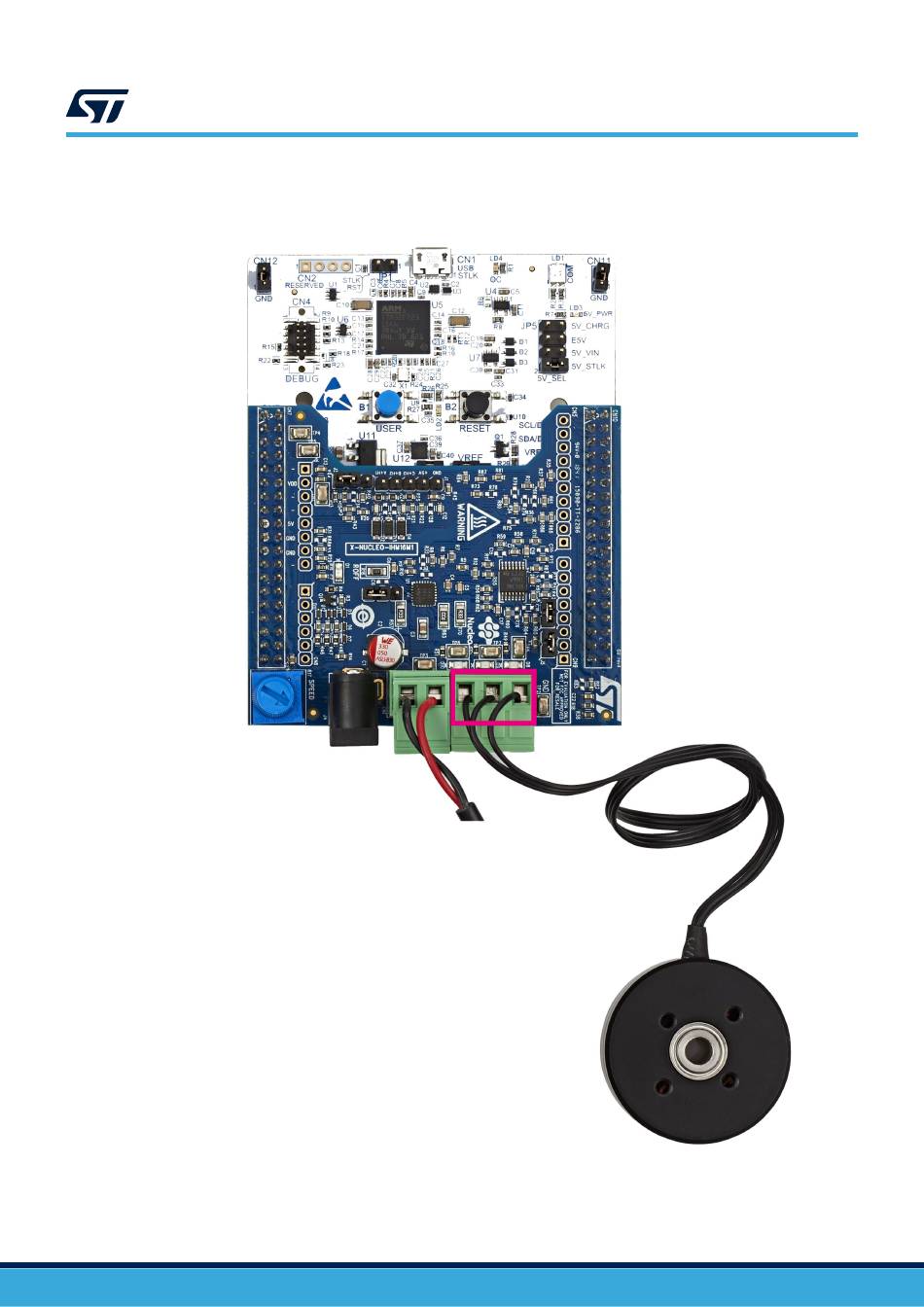

Figure 4.
Motor connection with X-NUCLEO-IHM16M1
UM2538 - Rev 2
page 9/25
