General information

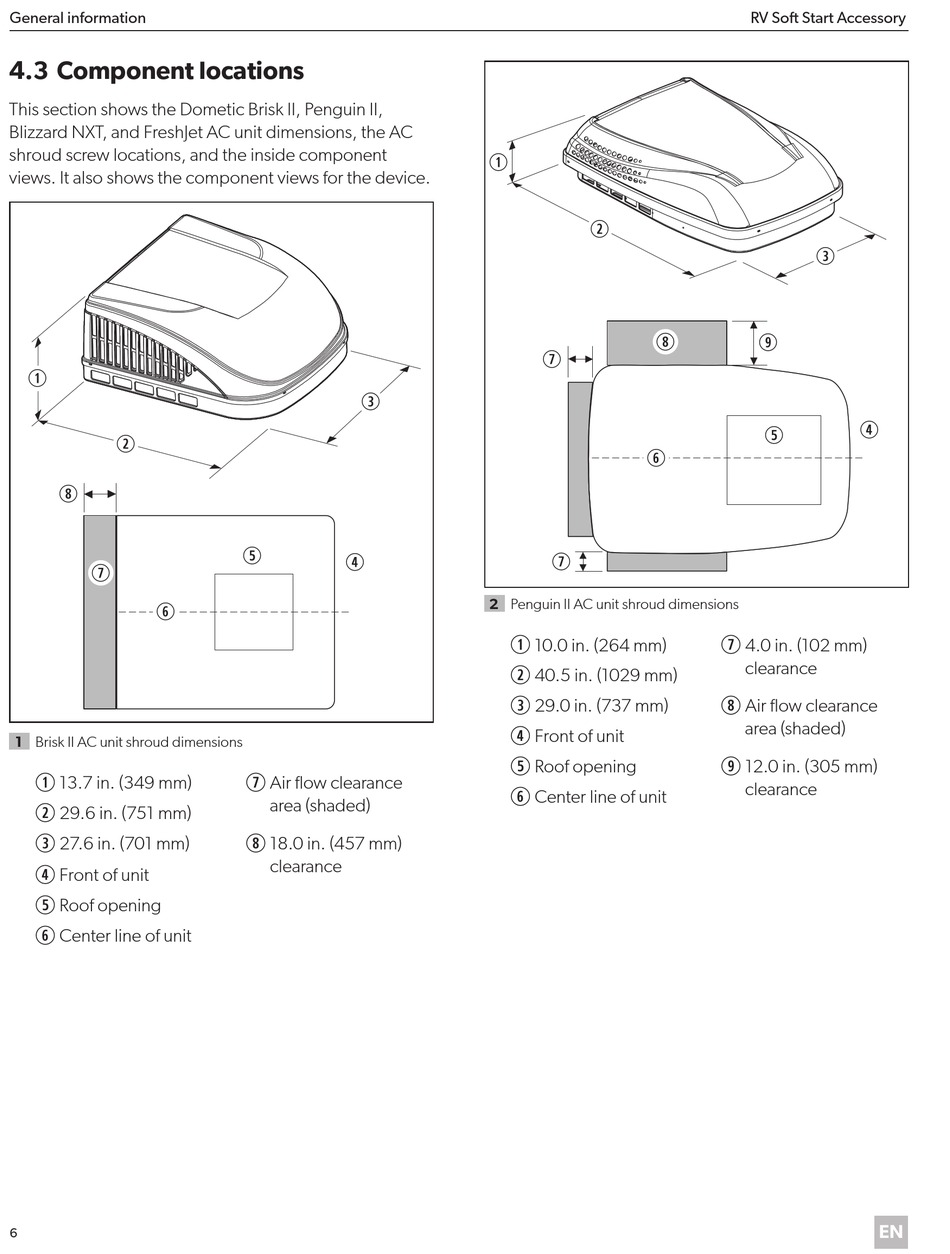

4 .3 Component locations

This section shows the Dometic Brisk II, Penguin II,
Blizzard NXT, and FreshJet AC unit dimensions, the AC
shroud screw locations, and the inside component
views. It also shows the component views for the device.
q q
w w
i i
u u
y y
1 Brisk II AC unit shroud dimensions
13.7 in. (349 mm)
q
29.6 in. (751 mm)
w
27.6 in. (701 mm)
e
Front of unit
r
Roof opening
t
Center line of unit
y
6
e e
t t
r r
Air flow clearance
u
area (shaded)
18.0 in. (457 mm)
i
clearance
q q
w w
i i
u u
y y
u u
2 Penguin II AC unit shroud dimensions
10.0 in. (264 mm)
q
40.5 in. (1029 mm)
w
29.0 in. (737 mm)
e
Front of unit
r
Roof opening
t
Center line of unit
y
RV Soft Start Accessory
e e
o o
r r
t t
4.0 in. (102 mm)
u
clearance
Air flow clearance
i
area (shaded)
12.0 in. (305 mm)
o
clearance
