Installation

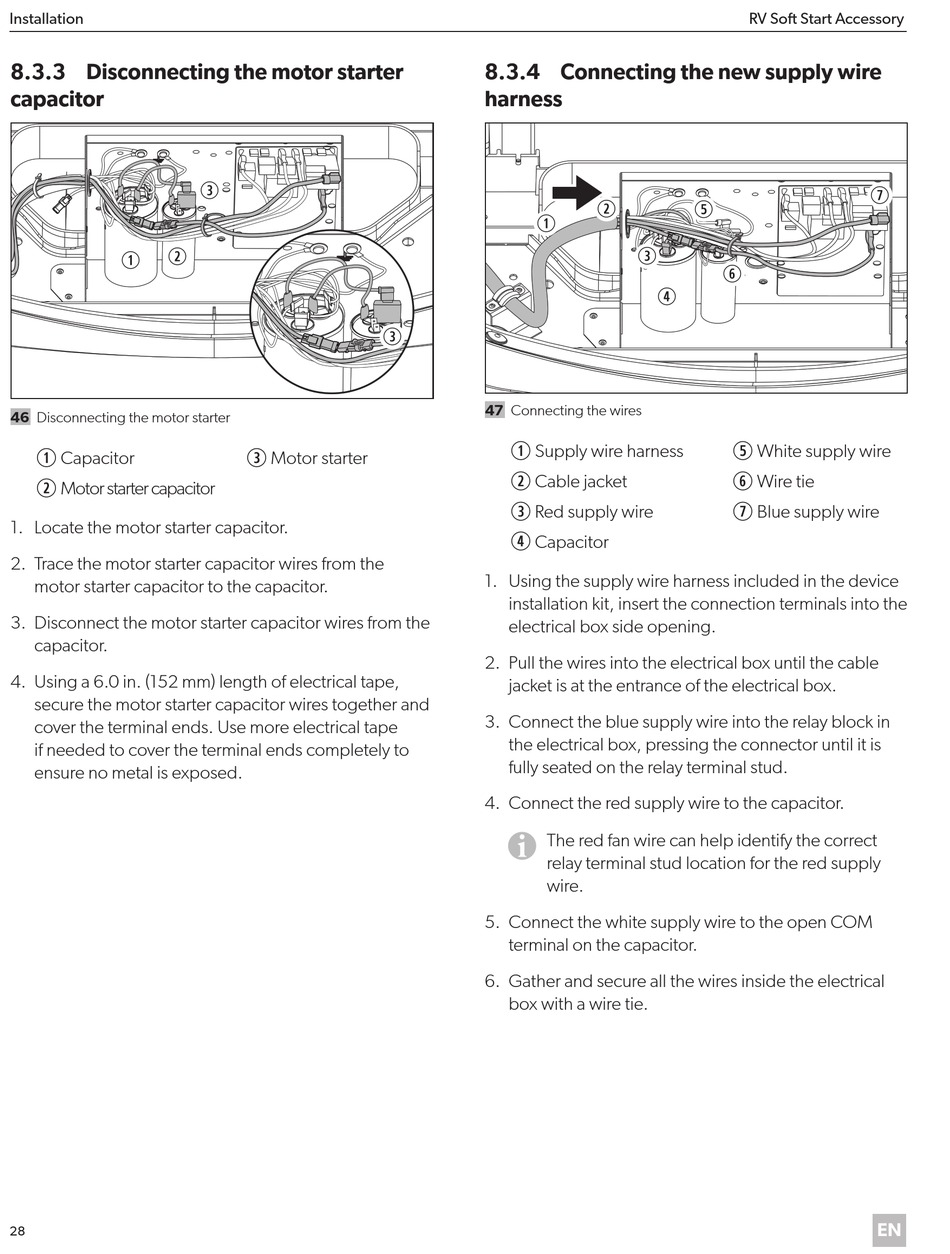

8 .3 .3 Disconnecting the motor starter
capacitor
w w
q q
46 Disconnecting the motor starter
Capacitor
q
Motor starter capacitor
w
1. Locate the motor starter capacitor.
2. Trace the motor starter capacitor wires from the
motor starter capacitor to the capacitor.
3. Disconnect the motor starter capacitor wires from the
capacitor.
4. Using a 6.0 in. (152 mm) length of electrical tape,
secure the motor starter capacitor wires together and
cover the terminal ends. Use more electrical tape
if needed to cover the terminal ends completely to
ensure no metal is exposed.
28
e e
Motor starter
e
8 .3 .4 Connecting the new supply wire
harness
q q
e e
47 Connecting the wires
Supply wire harness
q
Cable jacket
w
Red supply wire
e
Capacitor
r
1. Using the supply wire harness included in the device
installation kit, insert the connection terminals into the
electrical box side opening.
2. Pull the wires into the electrical box until the cable
jacket is at the entrance of the electrical box.
3. Connect the blue supply wire into the relay block in
the electrical box, pressing the connector until it is
fully seated on the relay terminal stud.
4. Connect the red supply wire to the capacitor.
I The red fan wire can help identify the correct
relay terminal stud location for the red supply
wire.
5. Connect the white supply wire to the open COM
terminal on the capacitor.
6. Gather and secure all the wires inside the electrical
box with a wire tie.
RV Soft Start Accessory
w w t t
e e
y y
r r
White supply wire
t
Wire tie
y
Blue supply wire
u
u u
