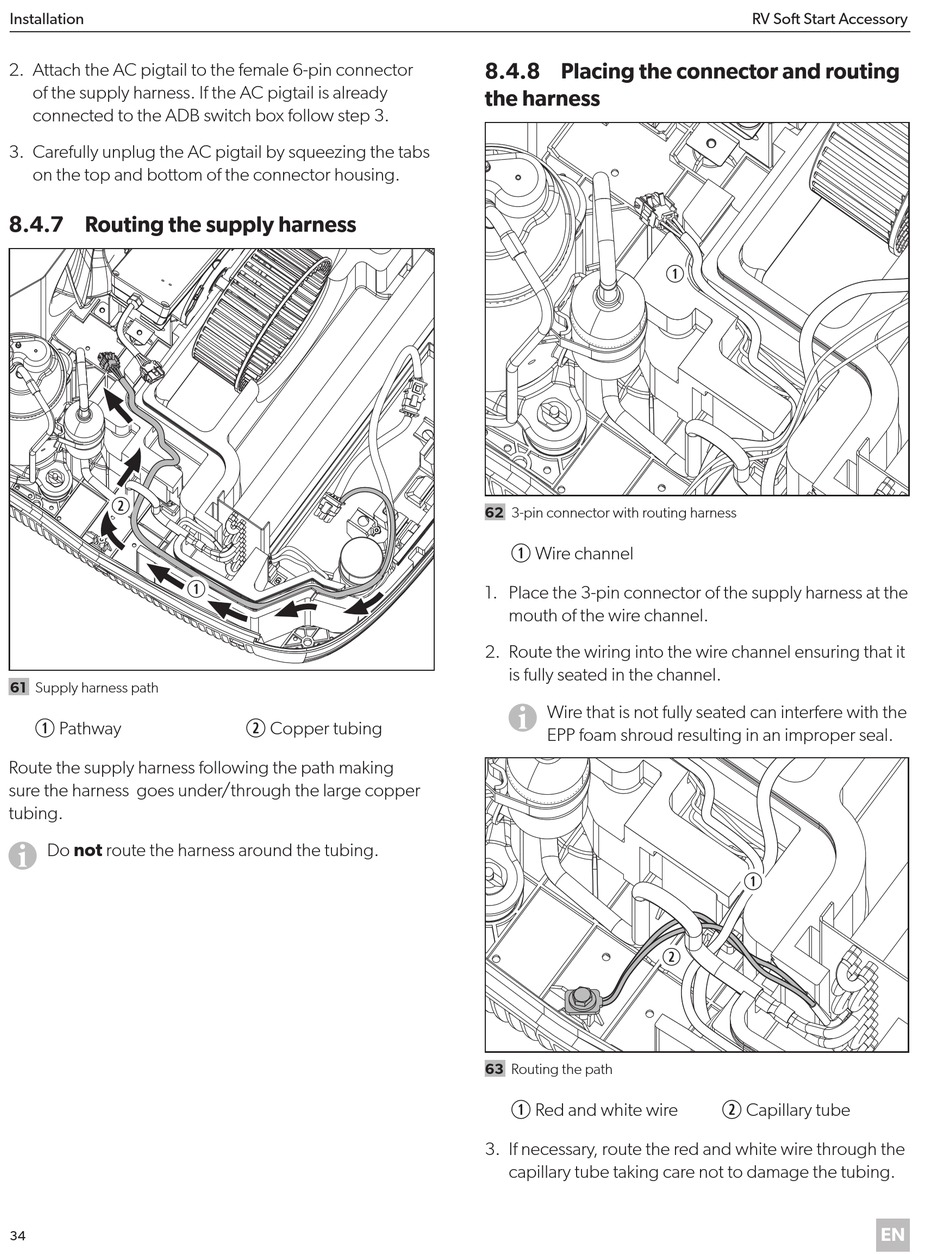

Dometic SmartStart SMRTSTACRV Installation And Operating Manual page 34

Installation
2. Attach the AC pigtail to the female 6-pin connector
of the supply harness. If the AC pigtail is already
connected to the ADB switch box follow step 3.
3. Carefully unplug the AC pigtail by squeezing the tabs
on the top and bottom of the connector housing.
8 .4 .7 Routing the supply harness
w w
q q
61 Supply harness path
Pathway
q
Route the supply harness following the path making
sure the harness goes under/through the large copper
tubing.
I Do not route the harness around the tubing.
34
Copper tubing
w
8 .4 .8 Placing the connector and routing
the harness
62 3-pin connector with routing harness
Wire channel
q
1. Place the 3-pin connector of the supply harness at the
mouth of the wire channel.
2. Route the wiring into the wire channel ensuring that it
is fully seated in the channel.
I Wire that is not fully seated can interfere with the
EPP foam shroud resulting in an improper seal.
w w
63 Routing the path
Red and white wire
q
3. If necessary, route the red and white wire through the
capillary tube taking care not to damage the tubing.
RV Soft Start Accessory
q q
q q
Capillary tube
w
