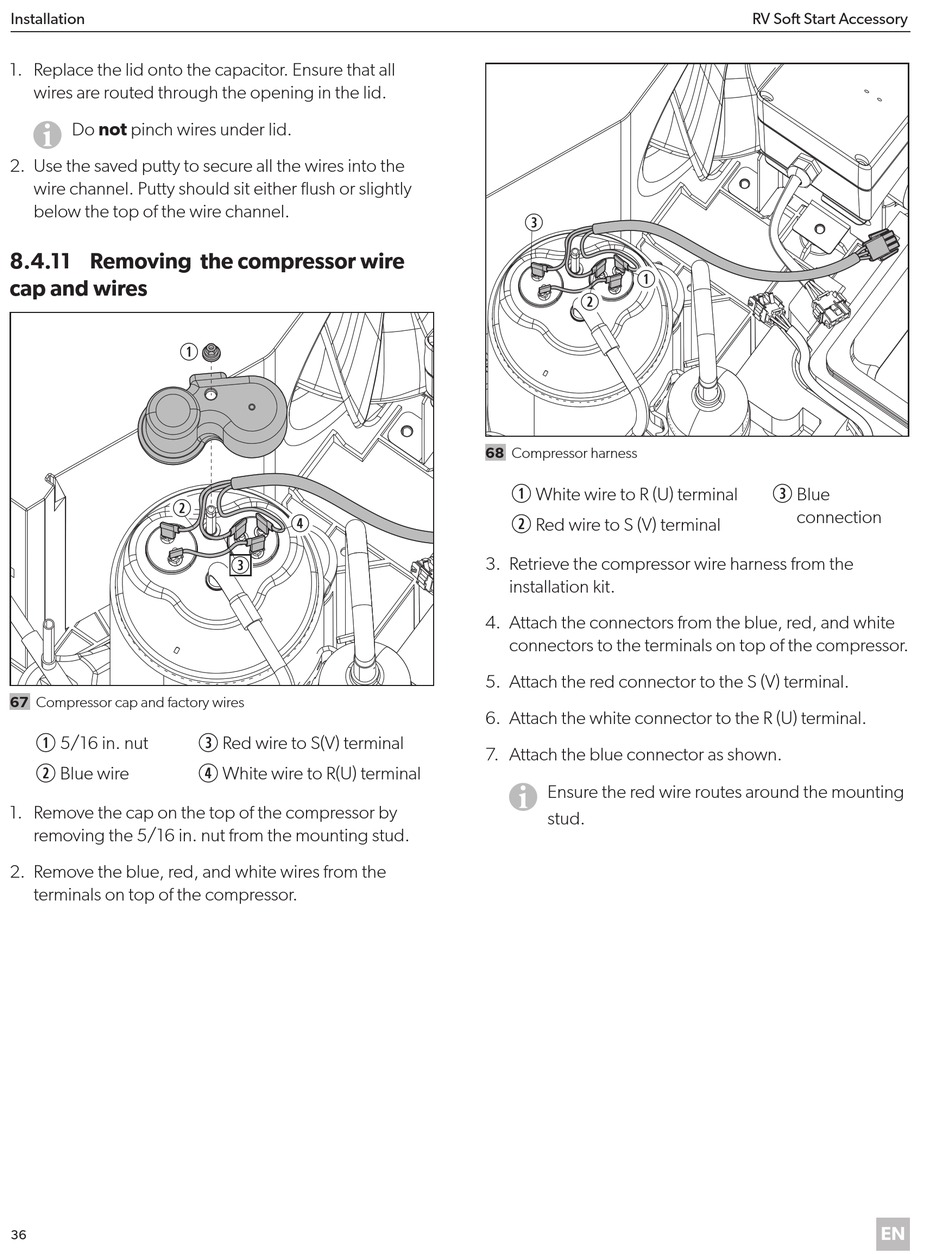

Dometic SmartStart SMRTSTACRV Installation And Operating Manual page 36

Installation
1. Replace the lid onto the capacitor. Ensure that all
wires are routed through the opening in the lid.
Do not pinch wires under lid.
I
2. Use the saved putty to secure all the wires into the
wire channel. Putty should sit either flush or slightly
below the top of the wire channel.
8 .4 .11 Removing the compressor wire
cap and wires
q q
w w
67 Compressor cap and factory wires
5/16 in. nut
q
Blue wire
w
1. Remove the cap on the top of the compressor by
removing the 5/16 in. nut from the mounting stud.
2. Remove the blue, red, and white wires from the
terminals on top of the compressor.
36
r r
e e
Red wire to S(V) terminal
e
White wire to R(U) terminal
r
e e
q q
w w
68 Compressor harness
White wire to R (U) terminal
q
Red wire to S (V) terminal
w
3. Retrieve the compressor wire harness from the
installation kit.
4. Attach the connectors from the blue, red, and white
connectors to the terminals on top of the compressor.
5. Attach the red connector to the S (V) terminal.
6. Attach the white connector to the R (U) terminal.
7. Attach the blue connector as shown.
I Ensure the red wire routes around the mounting
stud.
RV Soft Start Accessory
Blue
e
connection
