RV Soft Start Accessory
e e

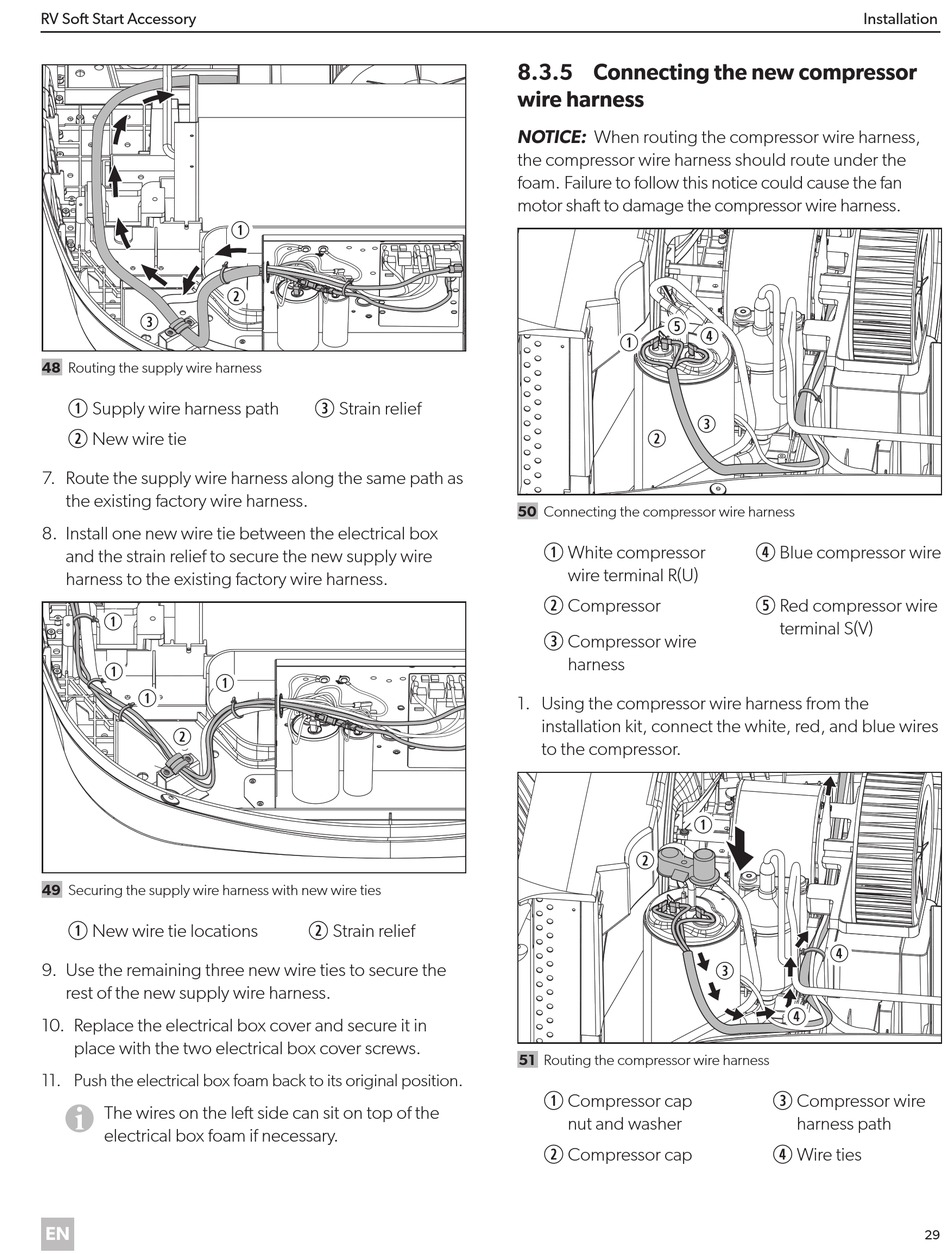

48 Routing the supply wire harness
Supply wire harness path
q
New wire tie
w
7. Route the supply wire harness along the same path as
the existing factory wire harness.
8. Install one new wire tie between the electrical box
and the strain relief to secure the new supply wire
harness to the existing factory wire harness.
q q
q q
q q
q q
w w
49 Securing the supply wire harness with new wire ties
New wire tie locations
q
9. Use the remaining three new wire ties to secure the
rest of the new supply wire harness.
10. Replace the electrical box cover and secure it in
place with the two electrical box cover screws.
11. Push the electrical box foam back to its original position.
I The wires on the left side can sit on top of the
electrical box foam if necessary.
EN
q q
w w
Strain relief
e
Strain relief
w
8 .3 .5 Connecting the new compressor
wire harness
NOTICE: When routing the compressor wire harness,
the compressor wire harness should route under the
foam. Failure to follow this notice could cause the fan
motor shaft to damage the compressor wire harness.
t t
q q
w w
50 Connecting the compressor wire harness
White compressor
q
wire terminal R(U)
Compressor
w
Compressor wire
e
harness
1. Using the compressor wire harness from the
installation kit, connect the white, red, and blue wires
to the compressor.
q q
w w
51 Routing the compressor wire harness
Compressor cap
q
nut and washer
Compressor cap
w
Installation
r r
e e
Blue compressor wire
r
Red compressor wire
t
terminal S(V)
r r
e e
r r
Compressor wire
e
harness path
Wire ties
r
