SPECIFICATIONS
Nominal System Voltage
12V
Nominal Charge Current
30A
Battery Voltage Range
6V -- 16Vdc
Max Battery Charge Current
37.5A
Max Solar Power
600W
Display Consumption
15mA
Temp. Compensation
- 25mV/ºC
Operating Temperature
- 40 to 60°C / - 40 to 140°F
Humidity
99% N.C.
Dimensions (H x W x D):
5.87 x 3.86 x 1.26 in; 149 x 98 x 32 mm
260 g / 9.2 oz
Weight
Maximum Wire Gauge:
#8 AWG/10 mm
Warranty
5 years
Battery/Solar Reverse Polarity, Battery/Solar Short Circuit,
Protection
Battery/Solar Reverse Current, Battery/Solar Over voltage up
to 50V, Over temperature, Over Current
WARNINGS:
2
GP-SB-PWM-30BT
SINGLE BANK
®
BLUETOOTH
SOLAR CONTROLLER
Quick Start Guide
3
2
1
No.
Descrip�on
NO.
DESCRIPTION
1
Scroll/Menu Selectors
Icons Indicator
2
3
Parameters Identifiers
Find tech tips, manuals and support at gpelectric.com
Scan for
full
manual
4
5
No.
Descrip�on
NO.
DESCRIPTION
4
Value Indicators
5
Value Units
Battery Type Indicator
6
6
Advertisement
Related Manuals for Dometic Go Power! GP-SB-PWM-30BT
Summary of Contents for Dometic Go Power! GP-SB-PWM-30BT
- Page 1 SPECIFICATIONS Nominal System Voltage GP-SB-PWM-30BT Nominal Charge Current SINGLE BANK Battery Voltage Range 6V -- 16Vdc Scan for full ® BLUETOOTH Max Battery Charge Current 37.5A manual Max Solar Power SOLAR CONTROLLER 600W Quick Start Guide Display Consumption 15mA Temp. Compensation - 25mV/ºC Operating Temperature - 40 to 60°C / - 40 to 140°F...
- Page 2 INSTALLATION ACCESSING SETTINGS The GP-SB-PWM-30BT includes an LCD of FSTN type with 4 mechanical buttons that act as navigation keys to control the display. The GP- settings SB-PWM-30BT TOOLS can be accessed by entering menu number 2 as shown below. •...
Need help?
Do you have a question about the Go Power! GP-SB-PWM-30BT and is the answer not in the manual?
Questions and answers

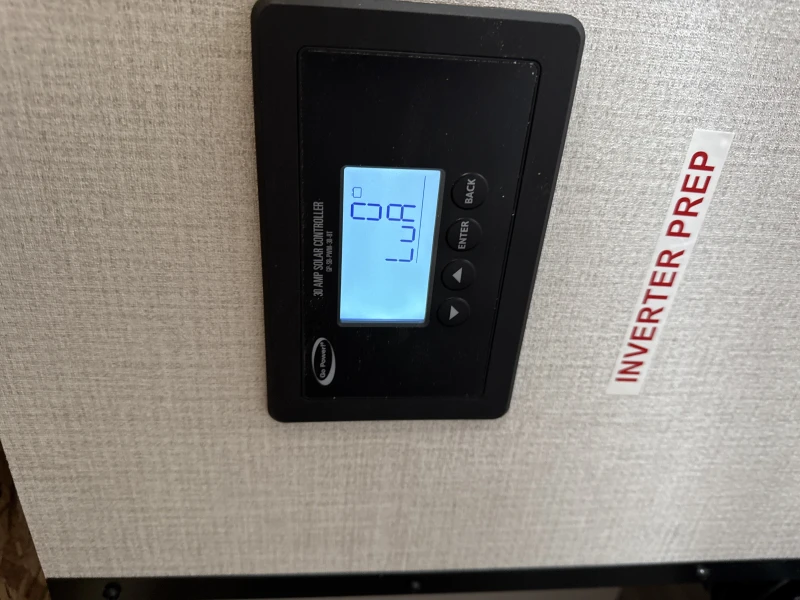

What does stand for 0 LuA
