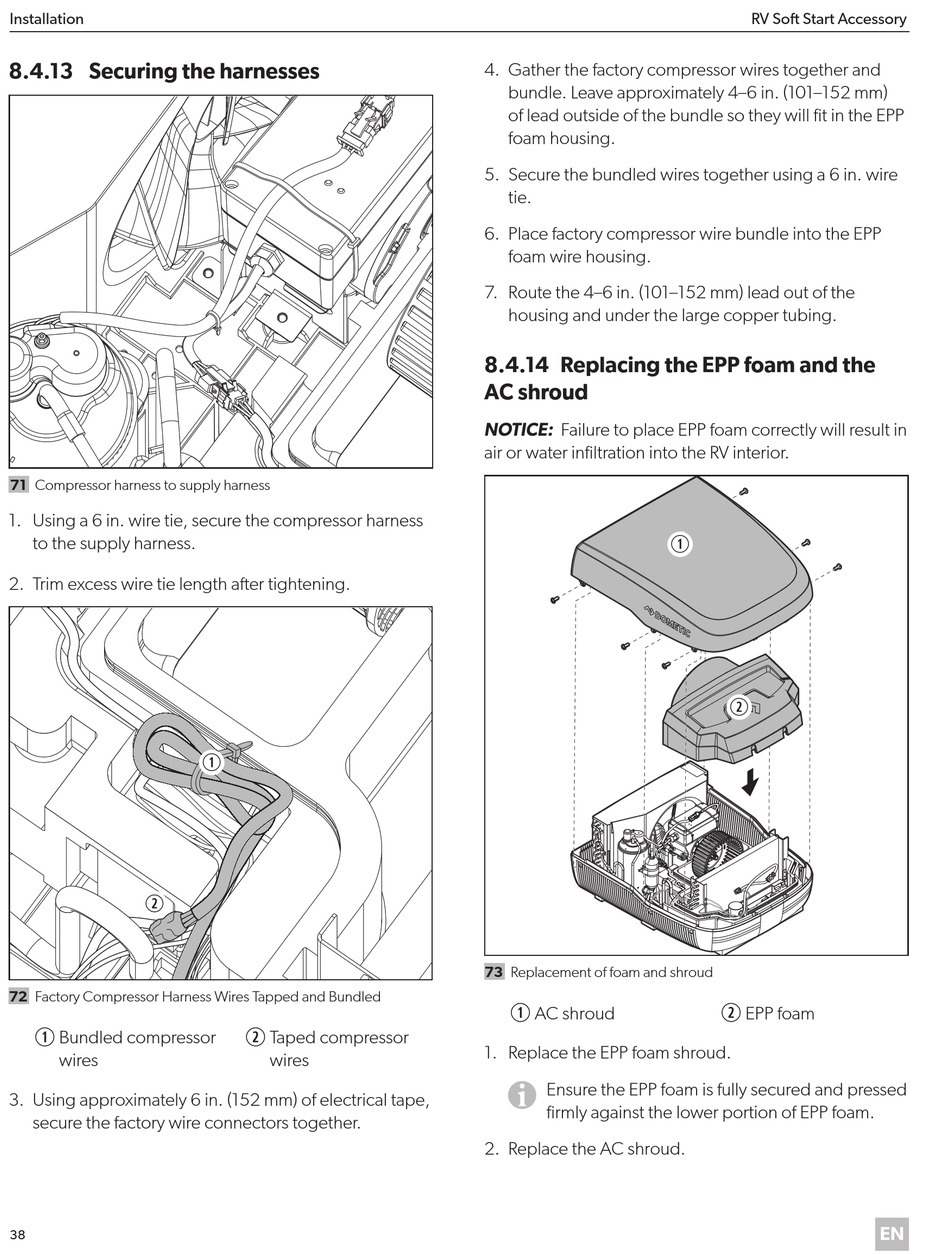

Installation
8 .4 .13 Securing the harnesses
71 Compressor harness to supply harness
1. Using a 6 in. wire tie, secure the compressor harness
to the supply harness.
2. Trim excess wire tie length after tightening.
w w
72 Factory Compressor Harness Wires Tapped and Bundled
Bundled compressor
q
wires
3. Using approximately 6 in. (152 mm) of electrical tape,
secure the factory wire connectors together.
38
q q
Taped compressor
w
wires
4. Gather the factory compressor wires together and
bundle. Leave approximately 4–6 in. (101–152 mm)
of lead outside of the bundle so they will fit in the EPP
foam housing.
5. Secure the bundled wires together using a 6 in. wire
tie.
6. Place factory compressor wire bundle into the EPP
foam wire housing.
7. Route the 4–6 in. (101–152 mm) lead out of the
housing and under the large copper tubing.
8 .4 .14 Replacing the EPP foam and the
AC shroud
NOTICE: Failure to place EPP foam correctly will result in
air or water infiltration into the RV interior.
73 Replacement of foam and shroud
AC shroud
q
1. Replace the EPP foam shroud.
Ensure the EPP foam is fully secured and pressed
I
firmly against the lower portion of EPP foam.
2. Replace the AC shroud.
RV Soft Start Accessory
q q
w w
EPP foam
w
EN
