RV Soft Start Accessory
I Ensure the device shifts towards the condenser
fan blade. See "Component locations" on
page 6. If it does not, contact Dometic
customer service.
5. Replace and tighten the four fan motor nuts until snug.
8 .1 .5 Replacing the electrical box cover
q q
w w

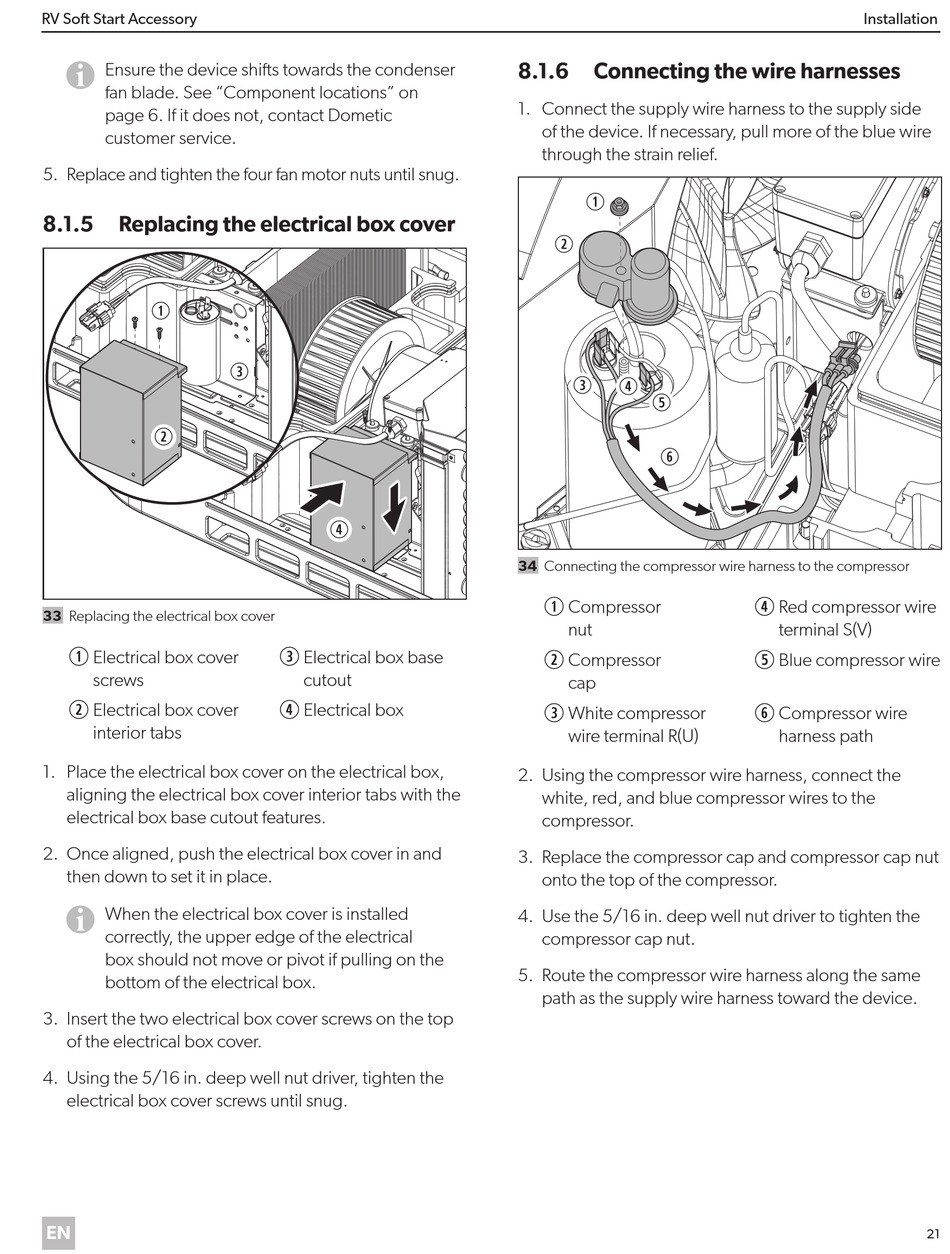

33 Replacing the electrical box cover
Electrical box cover
q
screws
Electrical box cover
w
interior tabs
1. Place the electrical box cover on the electrical box,
aligning the electrical box cover interior tabs with the
electrical box base cutout features.
2. Once aligned, push the electrical box cover in and
then down to set it in place.
When the electrical box cover is installed
I
correctly, the upper edge of the electrical
box should not move or pivot if pulling on the
bottom of the electrical box.
3. Insert the two electrical box cover screws on the top
of the electrical box cover.
4. Using the 5/16 in. deep well nut driver, tighten the
electrical box cover screws until snug.
EN
e e
r r
Electrical box base
e
cutout
Electrical box
r
8 .1 .6 Connecting the wire harnesses
1. Connect the supply wire harness to the supply side
of the device. If necessary, pull more of the blue wire
through the strain relief.
q q
w w
e e
r r
t t
y y
34 Connecting the compressor wire harness to the compressor
Compressor
q
nut
Compressor
w
cap
White compressor
e
wire terminal R(U)
2. Using the compressor wire harness, connect the
white, red, and blue compressor wires to the
compressor.
3. Replace the compressor cap and compressor cap nut
onto the top of the compressor.
4. Use the 5/16 in. deep well nut driver to tighten the
compressor cap nut.
5. Route the compressor wire harness along the same
path as the supply wire harness toward the device.
Installation
Red compressor wire
r
terminal S(V)
Blue compressor wire
t
Compressor wire
y
harness path
