Piezo cable
connection
AUX:
Electrical
connection
for gas valve
"rear burner"

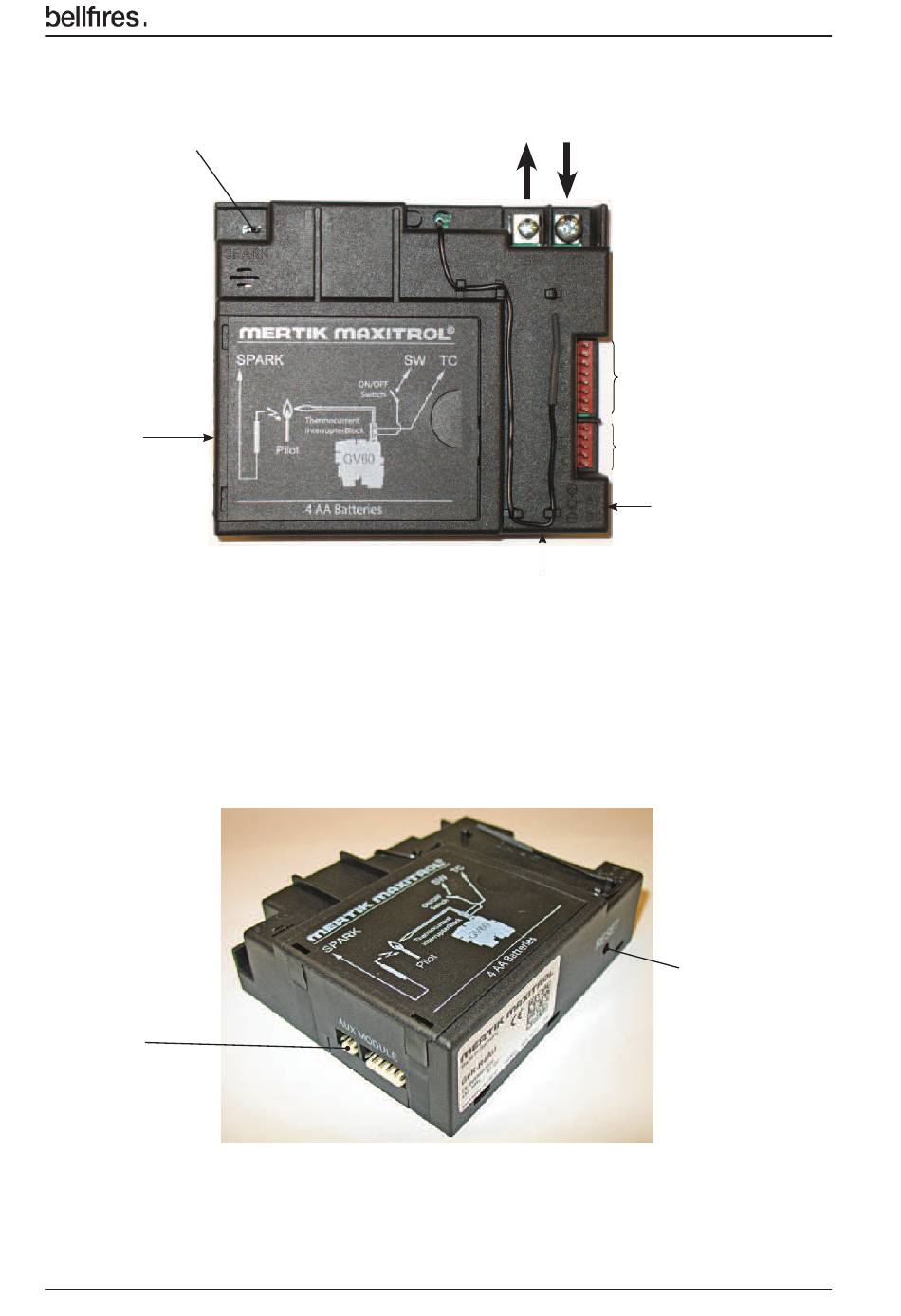

Figure 22:
Receiver - Top
AUX:
Electrical
connection
for gas valve
"rear burner"
Figure 23:
Receiver - AUX connection - RESET button
36
Thermocouple
voltage / current
OUT - connection (yellow)
SW
RESET button
Thermocouple
voltage / current
IN - connection (red)
TC
Connection
8 wire cable
gas regulator block
Connection for
external operating
(option)
6 VDC Adapter
connection
(option)
RESET button
Installation instructions
English
