FLEXIBLE CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION
POSSIBILITIES
Appliance: Concentric fl ue connection Ø130-Ø200 mm
Item descriptions:
see 1.6.2
Appliance:
View Bell XXL 3

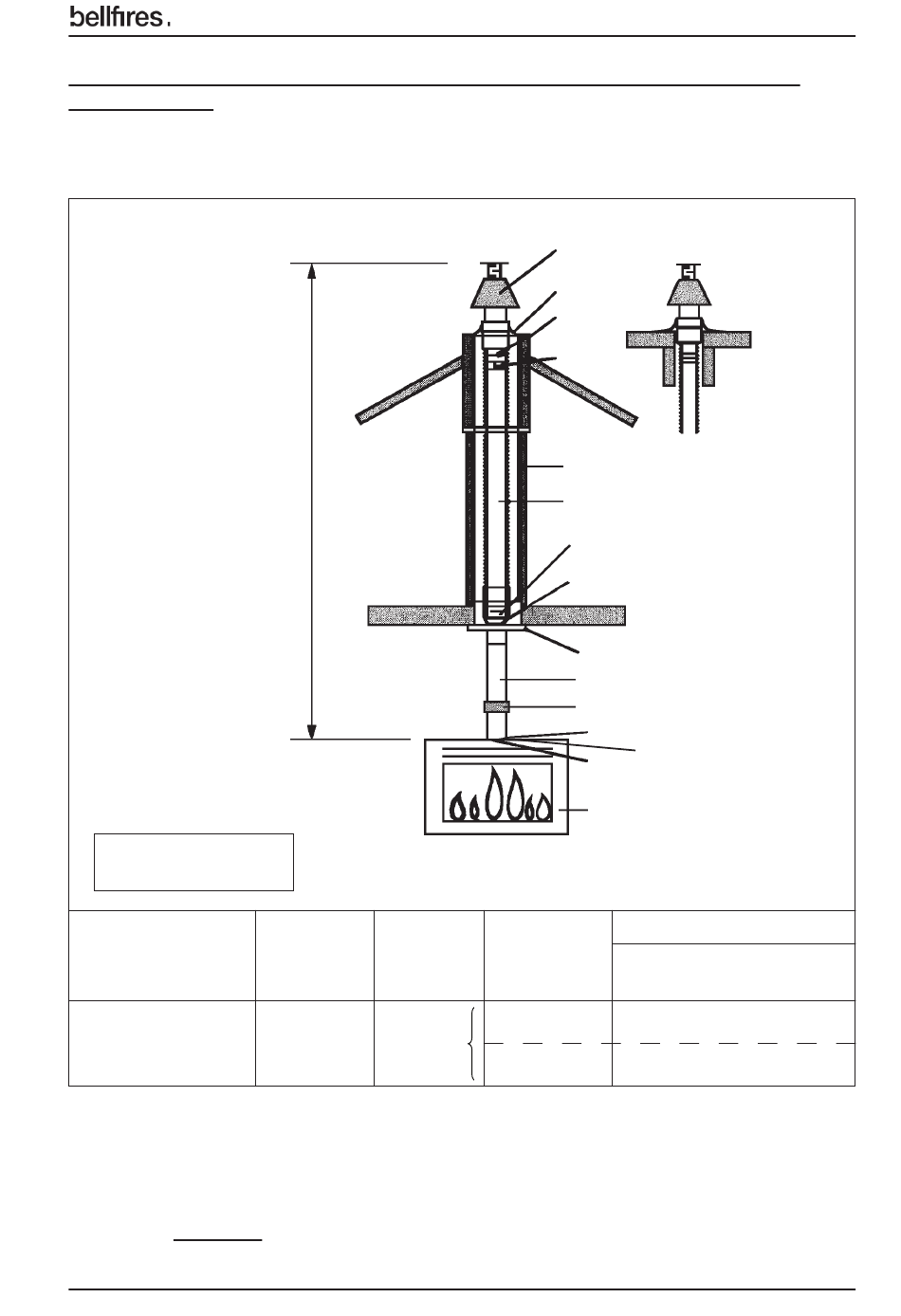

Figure 6:
Vertical chimney outlet using an existing lined chimney
(Flexible Ø100 mm and/or rigid Ø100 mm / Ø150 mm)
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Installation instructions
Y
32
18
30
29
5
7
29
26
25
10, 11, 12, 13
23
28
100
4
1
Assemble restriction plate:
Distance Y
Concentric connection
(min.-max.)
on
appliance
2.0 - 4.0 m
Width: B = 50 mm
4.0 - 12.0 m
Width: B = 65 mm
English
is Ø130-Ø200 mm
17
