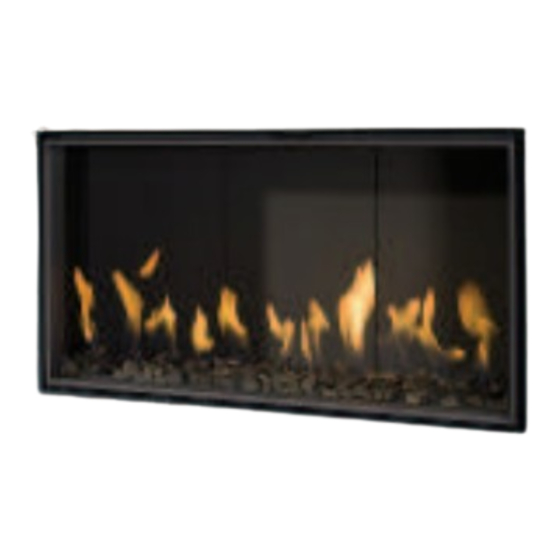

Bellfires HORIZON BELL XS 3 CF Installation Instructions & Manual For Maintenance

Gas fire with closed combustion system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

INSTALLATION INSTRUCTIONS &

MANUAL FOR MAINTENANCE

HORIZON BELL

XS 3 CF/LF

Gas ﬁ re with closed combustion system

Bellﬁ res wishes you many cosy evenings with your new Bellﬁ res gas ﬁ re

This document is an essential part of your gas ﬁ re.

Read it carefully before installation and maintenance

of the gas ﬁ re and keep it in a safe place!

Serial number:

Production date:

Table of Contents

Need help?

Do you have a question about the HORIZON BELL XS 3 CF and is the answer not in the manual?

Questions and answers

Summary of Contents for Bellfires HORIZON BELL XS 3 CF

Page 1 INSTALLATION INSTRUCTIONS & MANUAL FOR MAINTENANCE HORIZON BELL XS 3 CF/LF Gas ﬁ re with closed combustion system Bellﬁ res wishes you many cosy evenings with your new Bellﬁ res gas ﬁ re This document is an essential part of your gas ﬁ re. Read it carefully before installation and maintenance of the gas ﬁ...
Page 3 Bellﬁ res English BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM: Horizon Bell XS 3 CF (Centre Fire) (HBXS3 CF) Horizon Bell XS 3 LF (Line Fire) (HBXS3 LF) Installation instructions...
Page 4 Bellﬁ res English Installation instructions...
Page 5: Table Of Contents
Bellﬁ res English CONTENTS Page 1. INSTALLATION INSTRUCTIONS .............. 2. MAINTENANCE ..................3. FAULTS ...................... 4. DISMANTLING / ASSEMBLING OF THE GLASS ........5. DIAGRAM ELECTRICITY AND GAS ............6. DIMENSIONS .................... 7. TECHNICAL DETAILS/REGULATIONS ............ 8. REPLACEMENT PARTS LIST ..............9.
Page 6 Bellﬁ res English Installation instructions...
Page 7: Installation Instructions
Bellﬁ res English INSTALLATION INSTRUCTIONS 1.1 GENERAL The gas ﬁ re must be positioned and connected as a “room sealed system” (balance ﬂ ue) appliance by a “Gas Safe Register” registered gas installation engineer in accordance with the following installation instructions, nationally and locally applicable regulations (see “Technical Details/ Regulations”...
Page 8 Bellﬁ res English The appliance can be ﬁ tted with a convection package as an optional extra. This is a “convection jacket” (convection casing) for around and above the appliance, two ﬂ exible aluminium pipes and two built-in convection vents. This enables hot air to be circulated into the room.
Page 9 Bellﬁ res English OPTIONS AND ACCESSORIES The following options and accessories can be supplied by your dealer: Part no Option Convection Horizon Bell XS 3 330445 • 1x Convection casing 329704 • 1x Convection top plate 312829 • 1x Convection set General 330361 Set of high adjustable feet (4 pieces) 311967...
Page 10 Bellﬁ res English PREPARATION FOR INSTALLATION The following preparation must be carried out before the gas ﬁ re can be installed. 1.5.1 Instructions for positioning the outlet 1.5.1.1 Positioning the outlet for correct operation: Roof-mounted outlet: >0.5 m Figure 1: Roof-mounted outlet This must be positioned at least 0.5 m from the roof edge;...
Page 11 Bellﬁ res English 1.5.1.2. Positioning the outlet to avoid affecting the surrounding area All listed “distances” in this section are no more than guidelines. For the exact minimum “distances”, please consult your national and local directives. “Distance” = minimum distance required for positioning of the outlet to avoid adverse effects with respect to: A.
Page 12 Bellﬁ res English Wall-mounted outlet: To avoid adverse effects Distance: outlet - A, B or C At walls in buildings with staggered Not permitted if A, B, or C are located heights. above the outlet. On a wall - general. (*) Above the outlet: >2 m Below the outlet:...
Page 13 Bellﬁ res English GENERAL SERVICES 1.6.1 The Fume Channel/Combustion Air Intake The combined fume channel and combustion air intake requires one of the following concentric ﬂ ue system conﬁ gurations. Important: Due to the high temperature of the outer walls (approx.
Page 14 Bellﬁ res English RIGID CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION POSSIBILITIES Appliance: Concentric ﬂ ue connection Ø100-Ø150 mm or Ø130-Ø200 mm 10, 11, 12, 13 (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y Concentric Concentric (min.-max.) connection...
Page 15 Bellﬁ res English 14, 15 10, 11, 12, 13 (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y Distance X (*) Distance Y Concentric Concentric (min.-max.) (min.-max.) (min.-max.) connection connection on appliance is on appliance is Ø100-Ø150 mm Ø130-Ø200 mm Horizon Bell Width:...
Page 16 Bellﬁ res English FLEXIBLE CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION POSSIBILITIES Appliance: Concentric ﬂ ue connection Ø100-Ø150 mm or Ø130-Ø200 mm 10, 11, 12, 13 (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y Concentric Concentric (min.-max.) connection...
Page 17 Bellﬁ res English > 45° 10, 11, 12, 13 (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y (*) Distance X (*) Distance Y Concentric Concentric (min.-max.) (min.-max.) (min.-max.) connection connection on appliance is on appliance is Ø100-Ø150 mm Ø130-Ø200 mm Horizon Bell Width:...
Page 18 Bellﬁ res English (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y Concentric Concentric (min.-max.) connection connection on appliance is on appliance is Ø100-Ø150 mm Ø130-Ø200 mm Width: Width: 2.0 - 4.0 m B = 30 mm B = 65 mm Horizon Bell XS 3 Width: Width:...
Page 19 Bellﬁ res English > 45° (100) Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y (*) Distance X (*) Distance Y Concentric Concentric (min.-max.) (min.-max.) (min.-max.) connection connection on appliance is on appliance is Ø100-Ø150 mm Ø130-Ø200 mm Horizon Bell Width: 1.0 - 11.0 m 0 - 3.0 m...
Page 20 Bellﬁ res English RIGID CONCENTRIC FLUE Ø100 mm - Ø150 mm SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø100 mm - Ø150 mm Appliance: Concentric ﬂ ue connection Ø100-Ø150 mm or Ø130-Ø200 mm Wall 10, 11, 13 Termination Position (100) Item descriptions: see 1.6.2 Assemble restriction plate:...
Page 21 Bellﬁ res English RIGID CONCENTRIC FLUE Ø130 mm - Ø200 mm SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø100 mm - Ø150 mm Appliance: Concentric ﬂ ue connection Ø130-Ø200 mm Wall Termination 110, 111, 113 Position Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y...
Page 22 Bellﬁ res English RIGID CONCENTRIC FLUE Ø130 mm - Ø200 mm SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø100 mm - Ø150 mm Appliance: Concentric ﬂ ue connection Ø130-Ø200 mm Wall Termination 110, 111, 113 Position Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y...
Page 23 Bellﬁ res English RIGID CONCENTRIC FLUE Ø130 mm - Ø200 mm SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø100 mm - Ø150 mm Appliance: Concentric ﬂ ue connection Ø130-Ø200 mm Wall 110, 111, Termination Position 110, 113 110, 111, 113 Item descriptions: see 1.6.2 Assemble restriction plate:...
Page 24 Bellﬁ res English RIGID CONCENTRIC FLUE Ø130 mm - Ø200 mm SYSTEM CONNECTION POSSIBILITIES and with wall outlet Ø130 mm - Ø200 mm Appliance: Concentric ﬂ ue connection Ø130-Ø200 mm Wall Termination 110, 111, 113 Position Item descriptions: see 1.6.2 Assemble restriction plate: Appliance: Distance Y...
Page 25 Ø100 mm internal ﬂ exible stainless steel gas vent chimney liner AISI 316TI. Ø150 mm internal ﬂ exible stainless steel gas vent chimney liner AISI 316TI. AVAILABLE COMPONENTS FOR THE BELLFIRES (M&G) CONCENTRIC FLUE SYSTEM Ø100 mm - Ø150 mm...
Page 26 Bellﬁ res English BELLFIRES Color(*) Application FIG. ART. / DESCRIPTION ORDER RVS antr. RIGID FLEX Twin-wall balanced ﬂ ue elbow 45°, 302298 incl. 302295 Vertical (roof) termination kit, L = 1360 mm (vertical), incl. 302212 Adjustable roof ﬂ ashing. Roof pitch 20° - 45° (**), with lead ﬂ...
Page 27 Bellﬁ res English BELLFIRES Color(*) Application FIG. ART. / DESCRIPTION ORDER RVS antr. RIGID FLEX 302189 Ceiling plate for transition Ø100 mm / Ø150 mm rigid - Ø100 mm (ﬂ ex.). 302278 Stainless steel adapter piece (100) from ﬁ re to ﬂ exible, Ø100 mm external (rigid) x Ø107 mm internal...
Page 28 Bellﬁ res English BELLFIRES Color(*) Application FIG. ART. / DESCRIPTION ORDER RVS antr. RIGID FLEX 302302 Concentric pipe with gauging oriﬁ ce, L = 165 mm, incl. 302303 90° concentric bend with inspection panel, incl. 321948 Universal wall / ﬂ oor support Ø150 mm...
Page 29 Bellﬁ res English AVAILABLE COMPONENTS FOR THE BELLFIRES (M&G) CONCENTRIC FLUE SYSTEM Ø130 mm - Ø200 mm BELLFIRES Color(*) Application ART. / DESCRIPTION ORDER RVS antr. RIGID FLEX 302319 Concentric reduction of Ø130 / Ø200 mm Ø100 / Ø150 mm 302308 Twin-wall balanced ﬂ...
Page 30 Bellﬁ res English BELLFIRES Color(*) Application FIG. ART. / DESCRIPTION ORDER RVS antr. RIGID FLEX 302311 : Stainless steel locking band Ø200 mm, quick-fastening 302248 : Silicone seal Ø200 mm 302251 : Wall strap 302250 Set of ceiling ﬁ nishing plates /...
Page 31 Bellﬁ res English AVAILABLE COMPONENTS FOR THE POUJOULAT PGI CONCENTRIC FLUE SYSTEM Ø100 mm - Ø150 mm POUJOULAT FIG. ART. / DESCRIPTION ORDER 37100403 Twin-wall balanced ﬂ ue pipe, L = 250 mm 37100404 Twin-wall balanced ﬂ ue pipe, L = 450 mm 37100405 Twin-wall balanced ﬂ...
Page 32 Bellﬁ res English POUJOULAT FIG. ART. / DESCRIPTION ORDER Twin-wall balanced ﬂ ue elbow 30° 37100411 Twin-wall balanced ﬂ ue elbow 15° 37100401 37100654 Vertical (roof) termination kit, L = 140 mm 45150171 Roof ﬂ ashing, suitable for a brick roof, with a roof pitch of 15°- 30°...
Page 33 Bellﬁ res English POUJOULAT FIG. ART. / DESCRIPTION ORDER 45150169 Roof ﬂ ashing for existing chimney or ﬂ at roof 37100610 Horizontal (wall) termination kit, L = min. 365 mm / max. 585 mm 45150076 Stainless steel locking band Ø150 mm, quick-fastening 45150072 Wall strap, Ø150 mm...
Page 34 Bellﬁ res English POUJOULAT FIG. ART. / DESCRIPTION ORDER 45150165 Roof support, (universal) Ø150 mm 45150081 Floor support, (universal) Ø150 mm 37100611 Adapter: Bellﬁ res Ø100-150 mm Poujoulat PGI Ø100-150 mm (Appliance 100/150 Poujoulat PGI 100/150) 37100614 Adapter: Bellﬁ res Ø130-200 mm Poujoulat PGI Ø100-150 mm (Appliance 130/200 Poujoulat PGI...
Page 35 Bellﬁ res English AVAILABLE COMPONENTS FOR THE POUJOULAT PGI CONCENTRIC FLUE SYSTEM Ø130 mm - Ø200 mm POUJOULAT FIG. ART. / DESCRIPTION ORDER 37130403 Twin-wall balanced ﬂ ue pipe, L = 250 mm Twin-wall balanced ﬂ ue pipe, 37130404 L = 450 mm Twin-wall balanced ﬂ...
Page 36 Bellﬁ res English POUJOULAT FIG. ART. / DESCRIPTION NOR. ORDER Twin-wall balanced ﬂ ue elbow 30° 37130411 Twin-wall balanced ﬂ ue elbow 15° 37130401 37130610 Horizontal (wall) termination kit, L = min. 425 mm / max. 585 mm 45200076 Stainless steel locking band Ø200 mm, quick-fastening 45200072 Wall strap, Ø200 mm...
Page 37 Bellﬁ res English POUJOULAT FIG. ART. / DESCRIPTION ORDER 37130407 Concentric pipe with inspection opening, L = 250 mm 45200165 Roof support, (universal) Ø200 mm 45200081 Floor support, (universal) Ø200 mm 37130615 Adapter: Bellﬁ res Ø130-200 mm Poujoulat PGI Ø130-200 mm (Appliance 130/200 Poujoulat PGI 130/200)
Page 38 Bellﬁ res English AVAILABLE COMPONENTS FOR THE ONTOP METALOTERM US CONCENTRIC FLUE SYSTEM Ø100 mm - Ø150 mm ONTOP FIG. ART. / DESCRIPTION ORDER USA 10 Adapter for Bellﬁ res appliances with Ø100-Ø150 mm concentric connection US 25 10 Twin-wall balanced ﬂ ue pipe, L = 250 mm US 50 10 Twin-wall balanced ﬂ...
Page 39 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER Twin-wall balanced ﬂ ue elbow 15° USB 15 10 USDVC2 10 Vertical (roof) termination kit, L = 375 mm, incl. USSR 10 Storm collar Ø150 mm USLS 10 Adjustable roof ﬂ ashing. Roof pitch 20°...
Page 40 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USKB 10 : Locking band, quick-fastening USAB 10 : Cover band, screw-fastening USMB 10 Wall strap, adjustable USEB 10 Fitting bracket USCP 10 Set of ceiling ﬁ nishing plates / Fire stops / Centring plates USDQ 10 Roof support...
Page 41 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USSAN2 10 Bottom renovation set USKBS 10 Locking band, screw-fastening USI 10 Concentric pipe with inspection panel, L = 250 mm USEM 10 Concentric pipe with gauging oriﬁ ce, L = 150 mm USBI 10 90°...
Page 42 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USVG 10 13 Concentric reduction of Ø100-Ø150 mm Ø130-Ø200 mm AVAILABLE COMPONENTS FOR THE ONTOP METALOTERM US CONCENTRIC FLUE SYSTEM Ø130 mm - Ø200 mm ONTOP FIG. ART. / DESCRIPTION ORDER USA 13 Adapter for Bellﬁ...
Page 43 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER Twin-wall balanced ﬂ ue elbow 45° USB 45 13 Twin-wall balanced ﬂ ue elbow 30° USB 30 13 Twin-wall balanced ﬂ ue elbow 15° USB 15 13 USDVC2 13 Vertical (roof) termination kit, L = 375 mm, incl.
Page 44 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USDP 13 Roof ﬂ ashing for existing chimney or ﬂ at roof USDPAL 13 Roof ﬂ ashing - Aluminium for existing chimney or ﬂ at roof USDHC4 13 Horizontal (wall) termination kit, L = 475 mm (horizontally adjustable)), incl.
Page 45 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USDQ 13 Roof support USSAN 13 Renovation set USSAN1 13 Top of renovation set USSAN2 13 Bottom renovation set USKBS 13 Locking band, screw-fastening USI 13 Concentric pipe with inspection panel, L = 250 mm USEM 13 Concentric pipe with gauging oriﬁ...
Page 46 Bellﬁ res English ONTOP FIG. ART. / DESCRIPTION ORDER USBI 13 90° concentric bend with inspection panel Rosette smooth Ø200 mm USR 13 Wall plate large Ø200 mm, 350 mm USMPG 13 Spacer bracket ASAH 13 Concentric reduction of Ø130-Ø200 mm USVG 13 10 Ø100-Ø150 mm •...
Page 47 Bellﬁ res English 1.6.3 Gas connection Operation (gas regulating block (and receiver)) outside the appliance (in the operating unit): The gas connection is situated where the operating unit is built in near to the appliance. Use only gas piping with a minimum diameter of 1/2” and a shut-off valve. 1.6.4 Operating unit If the appliance is ﬁ...
Page 48 Bellﬁ res English Never position the appliance directly against the rear wall, but always place an nonﬂ ammable insulation plate, at least 12 mm thick, between the appliance and the rear wall, with free space on either side of 2 cm. (Total ± 5 cm.) The rear wall must be made of nonﬂ...
Page 49 Bellﬁ res English Figure 16: Appliance installed in ventilated chimney breast Horizontal outlet of the ﬂ ue gas exhaust /combustion air supply via the wall. Fitted with the options / accessories: • convection package (= convection casing and 1x convection set) •...
Page 50 Bellﬁ res English Figure 17: Appliance installed in ventilated chimney breast Vertical outlet of the ﬂ ue gas exhaust / combustion air supply via the roof. Fitted without convection package Inlet opening (appliance) convection air Inlet opening (grate) (chimney breast) convection air Natural convection in the chimney breast Outlet opening (grate) (chimney breast) convection air (2x) Concentric ﬂ...
Page 51 Bellﬁ res English When ﬁ tting the appliance, it can be levelled with the adjustable feet. These adjustable feet can be reached via the openings (4x), after removing the protec- tive covers, in the corners of the ﬂ oor of the combustion chamber. The ﬂ...
Page 52 Bellﬁ res English Position the gas supply pipe such that it can be easily mounted after installation. Because the control system is outside the appliance, the gas pipe must lead to where the operating unit (built in), the gas regulating block (and the receiver) assembly are ﬁ...
Page 53 Bellﬁ res English 1.7.1 Gas connection operating unit Important: During gas connection, take care not to twist the gas regulator block. Make sure that both the gas regulator block and the supply pipes are not subjected to stresses. The appliance is supplied with a built-in operating unit. Operating unit Frame with door (white)
Page 54 Bellﬁ res English Important : Cement and chalk can damage the piping and can, in turn, lead to gas leaks. Disassembly and assembly of pipes and cables: If necessary for mounting, all pipe compression ﬁ ttings and cable connectors can be temporarily disassembled.
Page 55 Bellﬁ res English Pilot Gas Adjustment Screw Adjustment Screw (Pierce the housing with Maximum a small screwdriver) Burner pressure Motor-knob 8 Wire connecting Microswitch cable receiver Figure 20: Gas regulator block - Front Adjustment Screw Minimum Burner pressure Inlet Pressure Tap Outlet Pilot light Pressure Tap...
Page 56 Bellﬁ res English Thermocouple Thermocouple voltage / current voltage / current Piezo cable OUT - connection (yellow) IN - connection (red) connection Connection 8 wire cable gas regulator block Connection for AUX: external operating Electrical (option) connection for gas valve 6 VDC Adapter “rear burner”...
Page 57 Bellﬁ res English 1.7.2 Connecting the concentric ﬂ ue Assemble the concentric ﬂ ue system according to one of the examples in section 1.6.1, ﬁ gure 4 to 14 inclusive. Make sure that all connections are completely gas tight. 1.7.3 Building in the appliance Remove the front of the casing, if applicable.
Page 58 Bellﬁ res English 1.7.4 Checking the gas connection After connection of the gas supply, check that all connections are completely gas tight using soapy water or a leak tester. 1.7.5 Positioning the ceramic log set or marble pebbles The appliance can be supplied with: •...
Page 59 Bellﬁ res English 1.7.5.1 Ceramic log set + chips of wood + embers + vermiculite granules 1 Place the ceramic mat on the burner in such a way that the holes in the mat are in line with the burner openings. 2 Remove the embers carefully from their packaging and spread them evenly over the burner mat and the grate around the burner.
Page 60 4 Place the logs on the burner: Natural gas-burner Propane / Butane-burner Appliance see ﬁ gure: see ﬁ gure: Horizon Bell XS 3 CF/LF Keep the burner oriﬁ ces unblocked !!! 5 Place the chips of wood around the burner. Installation instructions...
Page 61 Bellﬁ res English Logs: Log no Log no Log no Log no Log no Log no Log no Log no Installation instructions...
Page 62 Embers must not be placed next to the pilot light burner Keep the burner oriﬁ ces unblocked! Figure 24: Log set Horizon Bell XS 3 CF/LF Position natural gas burner Embers must not be placed next to the pilot light burner Keep the burner oriﬁ...
Page 63 2 Spread the pebbles over the whole burner bed (burner and grid around the burner). Make sure that the pilot light remains free. Horizon Bell XS 3 CF/LF : see ﬁ gure 27 IMPORTANT: Open area, in order to ensure free accessibility of the pilot ﬂ...
Page 64 Keep the burner oriﬁ ces unblocked! Figure 25: Marble pebbles Horizon Bell XS 3 CF/LF Position natural gas and propane/butane burner Important: • Do not place any marble pebbles in front of the pilot light.
Page 65 Bellﬁ res English Important: Ensure that the correct ﬂ ue gas restriction plate is mounted. Use of the correct ﬂ ue gas restriction plate will provide optimum efﬁ ciency, ﬂ ame effect and combustion. Mounting an incorrect ﬂ ue gas restriction plate can result in damage to the gas ﬁ...
Page 66 Bellﬁ res English The following restriction plates are supplied: Concentric ﬂ ue connection appliance [Ø130 - 200 mm] [Ø100 - 150 mm] Restriction plate: Horizontal wall outlet Roof-mounted outlet Width: B = 30 mm Width: B = 40 mm B = 40 mm Width: B = 50 mm B = 50 mm...
Page 67: Maintenance
Bellﬁ res English MAINTENANCE 2.1 ANNUAL MAINTENANCE It is essential that the appliance, the complete concentric ﬂ ue system (where possible) and the outlet are cleaned and inspected annually by a recognised ﬁ tter/gas specialist. The safe operation of the appliance will thus remain guaranteed.
Page 68: Faults
Bellﬁ res English FAULTS POSSIBLE REASONS Possible reasons for the gas ﬁ re going out are: • The concentric ﬂ ue system is not installed according to one of the methods detailed in Paragraph 1.6. • An incorrect “ﬂ ue gas restriction plate” is ﬁ tted. •...
Page 69: Dismantling / Assembling Of The Glass
Bellﬁ res English DISMANTLING / ASSEMBLING OF THE GLASS 4.1 HORIZON BELL XS 3 FLOATING FRAME Dismantling of the glass: - Horizon Bell XS 3 - Use the hook supplied (see photo) for Floating Frame opening the frame and the glass. Note ! : When loosening the frame and after it has been loosened, sup-...
Page 70 Bellﬁ res English stud (middle) - Detail of the stud (middle). Place paperboard on the chimney breast, under the frame. This helps prevent damage. - Dismantle the safety strip from the frame. Installation instructions...
Page 71 Bellﬁ res English - Carefully tilt the frame and the window - Take hold of the frame and the glass forwards. clamped together and pull these Note ! : Frame and window are upwards. two separate parts ! - Frame and glass are now removed from the appliance. Assembling of the glass: The assembly of the glass takes place in reverse order.
Page 72 Bellﬁ res English 4.2 HORIZON BELL XS 3 HIDDEN DOOR Dismantling of the glass: - Horizon Bell XS 3 Hidden Door. (+10 cm frame and ﬂ oating natural stone plateau (option).) - Use the hook supplied for opening the frame (including glass). - Use the hook to pull the frame at the top forward and hold the frame ﬁ...
Page 73 Bellﬁ res English - With the hook, pull the thin, metal spring strip on the top middle from the stud on the frame. - Dismantle the safety strip from the frame. Note ! : When loosening the frame and after it has been loosened, support it with your hand to prevent it falling forward ! Installation instructions...
Page 74 Bellﬁ res English - Carefully tilt the frame and the glass forwards at the top. Prevent damage by laying paperboard on the chimney breast, under the frame. Pull the frame upwards and remove it from the appliance. Assembling of the glass: The assembly of the glass takes place in reverse order.
Page 75: Diagram Electricity And Gas
Bellﬁ res English DIAGRAM ELECTRICITY AND GAS Double burner: : Perforation pattern “Centre Fire” double burner. : Perforation pattern “Line Fire” double burner. Gas pipe “Rear burner” “Rear burner” Gas pipe “Front burner” 8 Wire “Front burner” Motor- connecting knob cable Pilot light Thermocouple...
Page 76: Dimensions
Bellﬁ res English DIMENSIONS HORIZON BELL XS 3 6.1.1 HORIZON BELL XS 3 - Hidden Door Installation instructions...
Page 77 Bellﬁ res English 6.1.2 HORIZON BELL XS 3 - Floating Frame Installation instructions...
Page 78 Bellﬁ res English HORIZON BELL XS 3 Fitted with the options: - Convection casing - High adjustable feet 6.2.1 HORIZON BELL XS 3 - Hidden Door * With the high adjustable feet (option), the appliance can be installed till 350 mm above the ﬂ oor. Installation instructions...
Page 79 Bellﬁ res English 6.2.2 HORIZON BELL XS 3 - Floating Frame * With the high adjustable feet (option), the appliance can be installed till 350 mm above the ﬂ oor. Installation instructions...
Page 80 Bellﬁ res English HORIZON BELL XS 3 Hidden Door Plus (+) 6.3.1 HORIZON BELL XS 3 - Hidden Door Plus (+) 7 cm Frame * With the high adjustable feet (option), the appliance can be installed till 350 mm above the ﬂ oor. Installation instructions...
Page 81 Bellﬁ res English 6.3.2 HORIZON BELL XS 3 - Hidden Door Plus (+) 10 cm Frame * With the high adjustable feet (option), the appliance can be installed till 350 mm above the ﬂ oor. Installation instructions...
Page 82 Bellﬁ res English 6.3.3 HORIZON BELL XS 3 Hidden Door Plus (+) 10 cm Frame & Decorative Stone Fitted with the options: - Convection casing - High adjustable feet * With the high adjustable feet (option), the appliance can be installed till 350 mm above the ﬂ oor. With this model the remote control receiver and the gas regulating block are located in the ﬁ...
Page 83 Bellﬁ res English OPERATING UNIT Installation instructions...
Page 84: Technical Details/Regulations
• Gas safety installation and use regulations 1984 plus all relevant safety and building regulations concerning ﬁ re installation • Document J: Combustion appliances and fuel storage systems Model : HORIZON BELL XS 3 CF (Centre Fire) : NATURAL GAS : BUTANE / PROPANE Country : GB;...
Page 85 Bellﬁ res English Model : HORIZON BELL XS 3 CF (Centre Fire) : NATURAL GAS : BUTANE / PROPANE Country : GB; Great Britain/IE; Ireland : GB; Great Britain/IE; Ireland Batteries remote control - Receiver : 4x 1.5V AA : 4x 1.5V AA...
Page 86 Bellﬁ res English Model : HORIZON BELL XS 3 LF (Line Fire) : NATURAL GAS : BUTANE / PROPANE : GB; Great Britain/IE; Ireland : GB; Great Britain/IE; Ireland Country Product identiﬁ cation no : 0063CM3684 : 0063CM3684 Type of appliance under CE-norm Category of appliance natural gas G20 butane/propane G30/G31...
Page 87 Bellﬁ res English Model : HORIZON BELL SMALL 3 LF (Line Fire) : NATURAL GAS : BUTANE / PROPANE Country : GB; Great Britain/IE; Ireland : GB; Great Britain/IE; Ireland Batteries remote control - Receiver : 4x 1.5V AA : 4x 1.5V AA - Hand-transmitter : 1x 9V block : 1x 9V block...
Page 88: Replacement Parts List
Bellﬁ res English REPLACEMENT PARTS LIST When requesting service or ordering replacement parts, please quote the model type and serial number. All parts listed in this manual may be ordered from a Bellﬁ res dealer. Article no Description 335116 Main burner “Centre Fire” 694 x 130 mm Natural gas G20 / Butane/Propane G30/G31 G20: 1x Ø10.0 mm front + 1x Ø10.0 mm rear...
Page 89 Bellﬁ res English Article no Description 321926 Thermocouple M10 - 1500 mm 333604 Thermocouple interrupter M10 310908 Pilot light set outer casing, Double ﬂ ame 310909 Packing pilot light set outer casing 310910 Pilot light injector; Natural gas; no 36 310912 Pilot light injector;...
Page 90 Bellﬁ res English Logs - Chips of wood - Embers - Vermiculite granules - Marble pebbles Installation instructions...
Page 91: Disposal Of Packaging And Appliance
Bellﬁ res English DISPOSING OF PACKAGING AND APPLIANCE The appliance comes in recyclable packaging. This can include: • Cardboard • Wood • Plastic • Paper Such materials must be disposed of responsibly, in line with local regulations. Batteries should be disposed of as chemical waste. Batteries must be disposed of responsibly, in line with local regulations.
