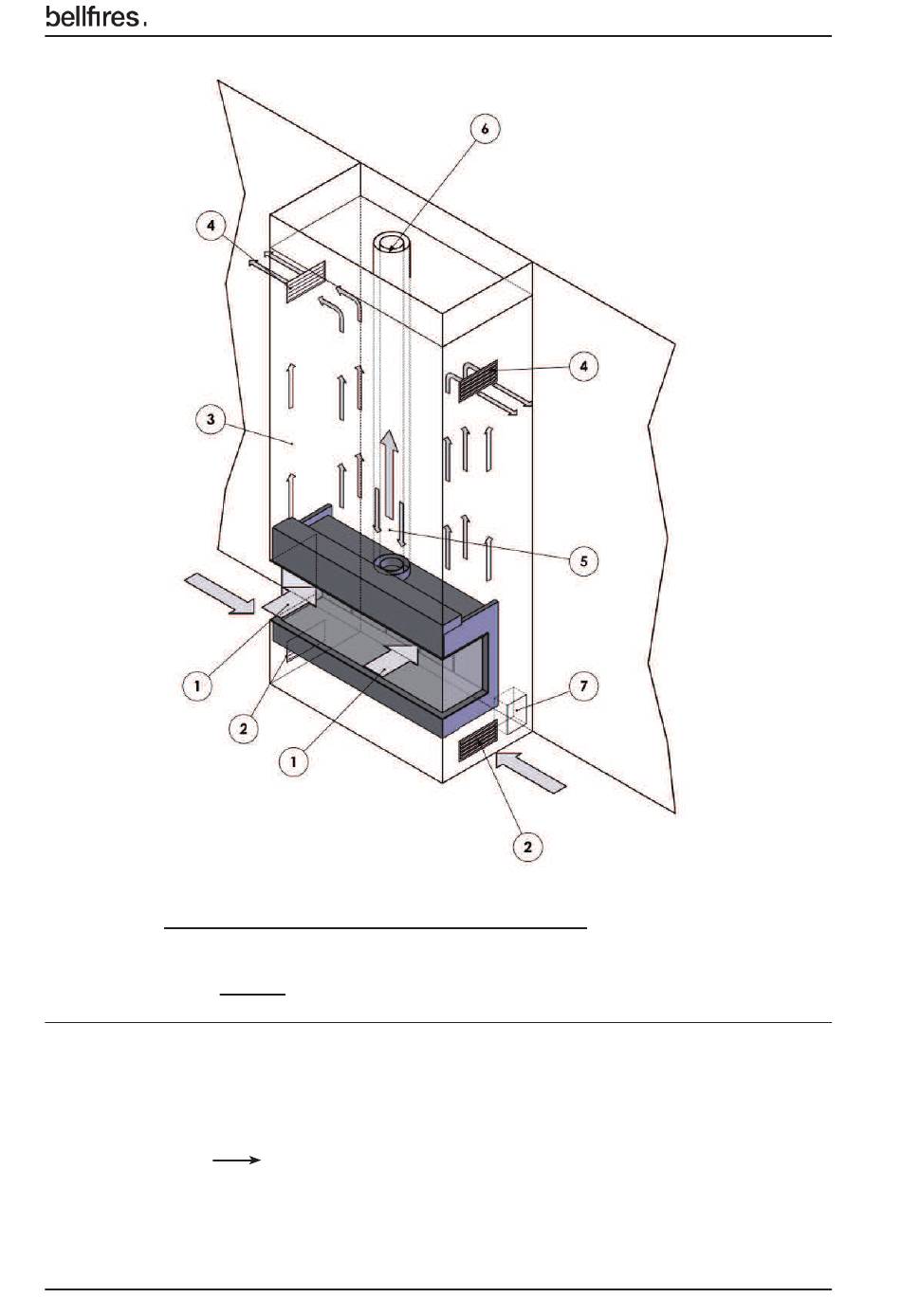

Figure 17:
Appliance installed in ventilated chimney breast
Vertical outlet of the fl ue gas exhaust / combustion air
supply via the roof.
Fitted without convection package
1
Inlet opening (appliance) convection air
2
Inlet opening (grate) (chimney breast) convection air
3
Natural convection in the chimney breast
4
Outlet opening (grate) (chimney breast) convection air
5
Concentric fl ue connection appliance; Ø130-200 mm, with a
Ø130-200 mm
6
Concentric fl ue system; Ø100-150 mm for a vertical roof outlet
7
Built in operating unit with gas regulator block and receiver
30
Ø100-150 mm for a vertical roof outlet
(2x)
reduction
Installation instructions
English
