RIGID CONCENTRIC FLUE Ø130 mm - Ø200 mm SYSTEM CONNECTION
POSSIBILITIES and with wall outlet Ø130 mm - Ø200 mm
Appliance: Concentric fl ue connection Ø130-Ø200 mm
Y
Appliance:
View Bell XXL 3

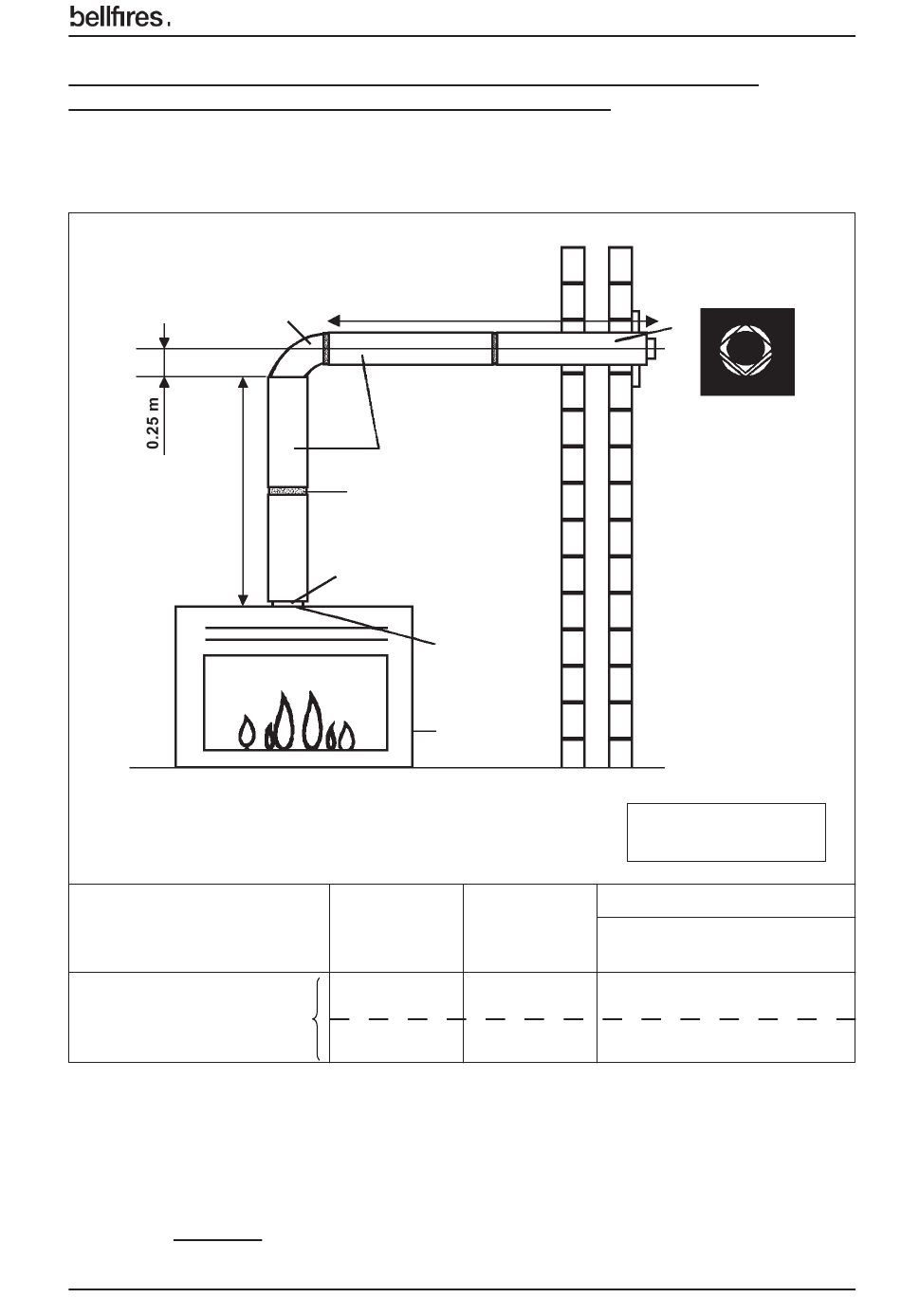

Figure 14: Horizontal wall termination
ALL SIZES INCLUDE THE LENGTH OF THE ROOF OR WALL TERMINATION
Installation instructions
114
110, 111, 113
123
128
Distance Y
(min.-max.)
0.5 - 1.0 m
1.0 - 3.0 m
X
4
1
Distance X
(min.-max.)
0 - 2.6 m
0 - 7.6 m
English
119
Wall
Termination
Position
Item descriptions:
see 1.6.2
Assemble restriction plate:
Concentric connection on
appliance is Ø130-Ø200 mm
-
-
