Hardware Installation and Reference Guide
1

Product Overview

1.1

About the RG-AP680-L Access Point

The RG-AP680-L is a dual-radio and dual-stream access point designed to cover outdoor areas. Compliant with
the IEEE 802.11ax standard, the access point delivers a combined data rate of 2.975 Gbps, with up to 575
Mbps in the 2.4 GHz band and 2.4 Gbps in the 5 GHz band. The access point provides one 2.5 GE SFP port
and one 1GE electrical port.
1.2

Hardware Features

The RG-AP680-L access point provides two radio frequency (RF) connectors, one 10/100/1000 BASE-T
Ethernet port with auto-negotiation, one 2.5GE SFP port, one Console port, and one DC connector. The access
point can be powered by either PoE or DC power supply.

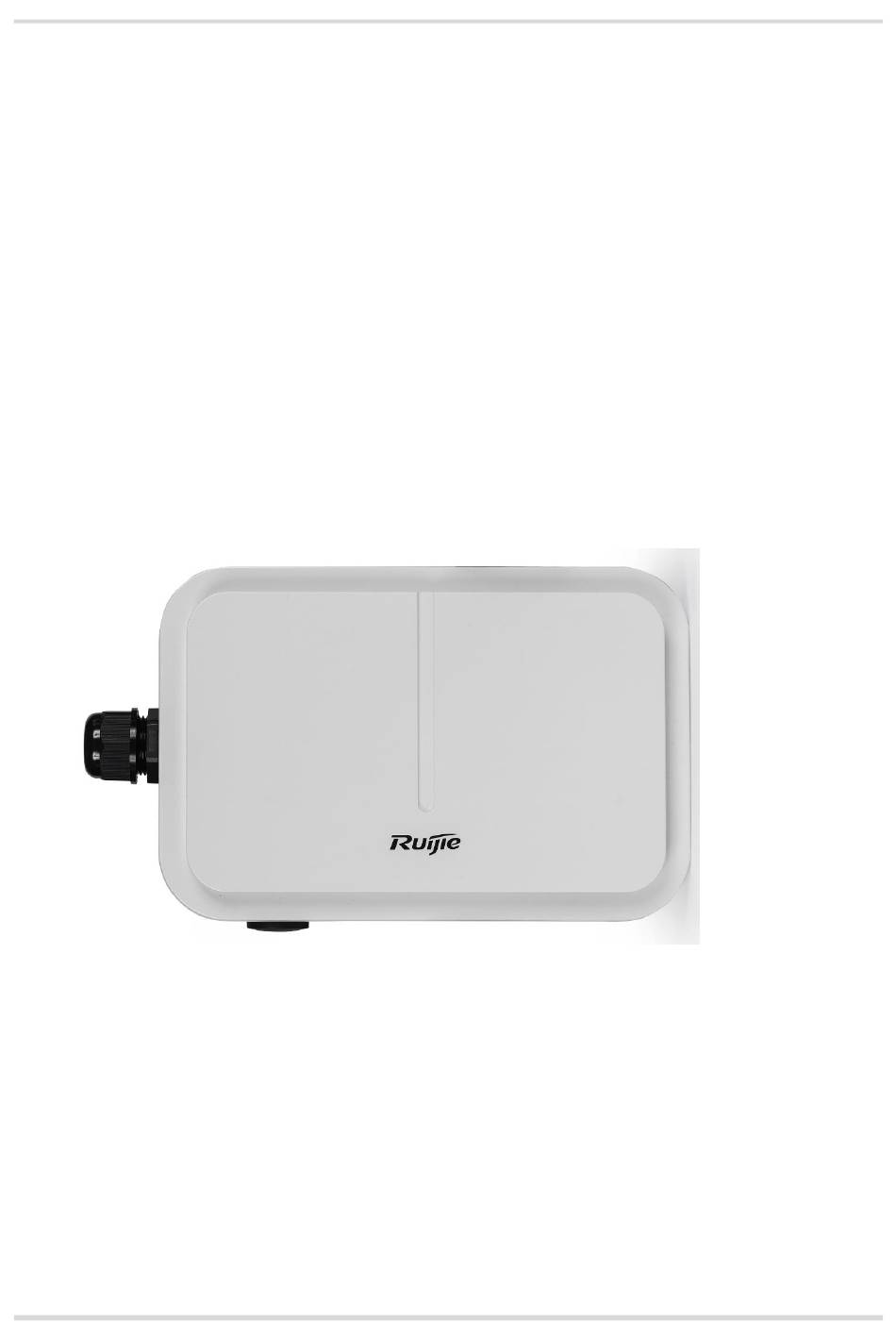

Figure 1-1 Front View of Access Point
1
Product Overview
