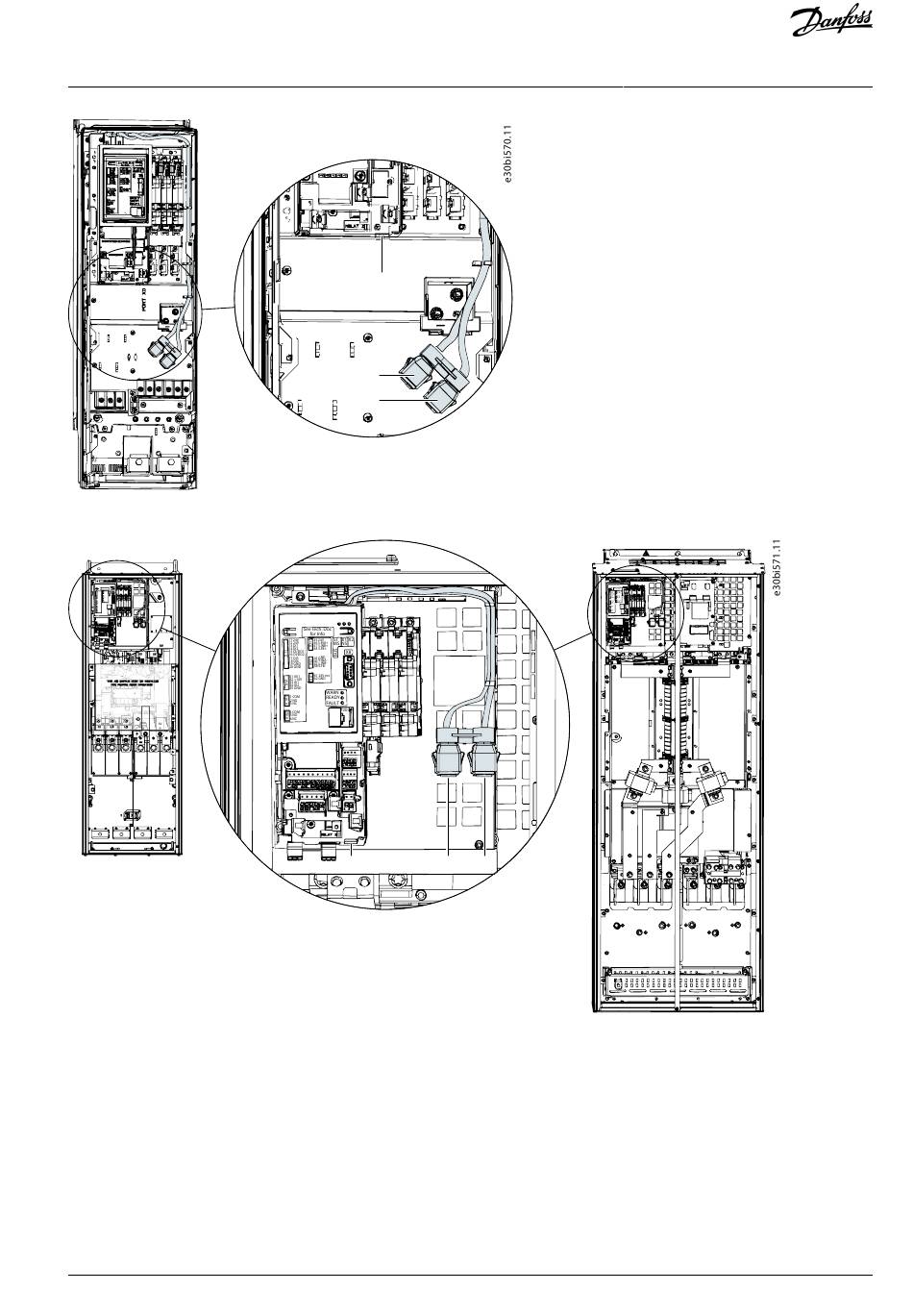

Illustration 7: Communication Port X0, X1, and X2 Locations in FK06–FK08 Frames
FK09–FK10
See Tech. Doc
for Info
45 24V ST X1 X2
13 DI1 46 S.INA+ 47 S.INB+ MS NS
14 DI2 48 S.FB+
15 DI/DO1 X8
16 DI/DO2
17 DI3 45 GND
18 DI4 19 GND 46 S.INA- 47 S.INB-
20 GND 48 S.FB-
31 A01 61 24V ext
32 +10V 33 AI1 62 GND
34 AI2
35 GND
WARN
1 COM READY
2 NO 3 NC FAUL
PUSH
4 COM
5 NO
6 NC
Illustration 8: Communication Port X0, X1, and X2 Locations in FK09–FK12 Frames

3.2 EMC-compliant Installation

To obtain an EMC-compliant installation, follow the instructions provided in the drive-specific design guide and the installation
guide included in the shipment.
Danfoss A/S © 2023.06
X0
X1
X2
X0 X1 X2
Fieldbus Cable Connections
FK11–FK12
