Series 45 E Frame Open Circuit Pumps
Adjustments

Displacement Limiters

© Danfoss | September 2016
All manuals and user guides at all-guides.com
8. Stop the prime mover, remove the pressure gauges, and return the system to its normal operating
configuration.
LS control adjustment
LS set screw
4 mm
7.5 - 10.8 Nm [5.5 - 8 lbf•ft]
LS adjusting plug
6 mm
Gauge port M2
0 - 300 bar [0 - 4351 psi]
9/16-18
34-68 N•m
[25-50 lbf•ft]

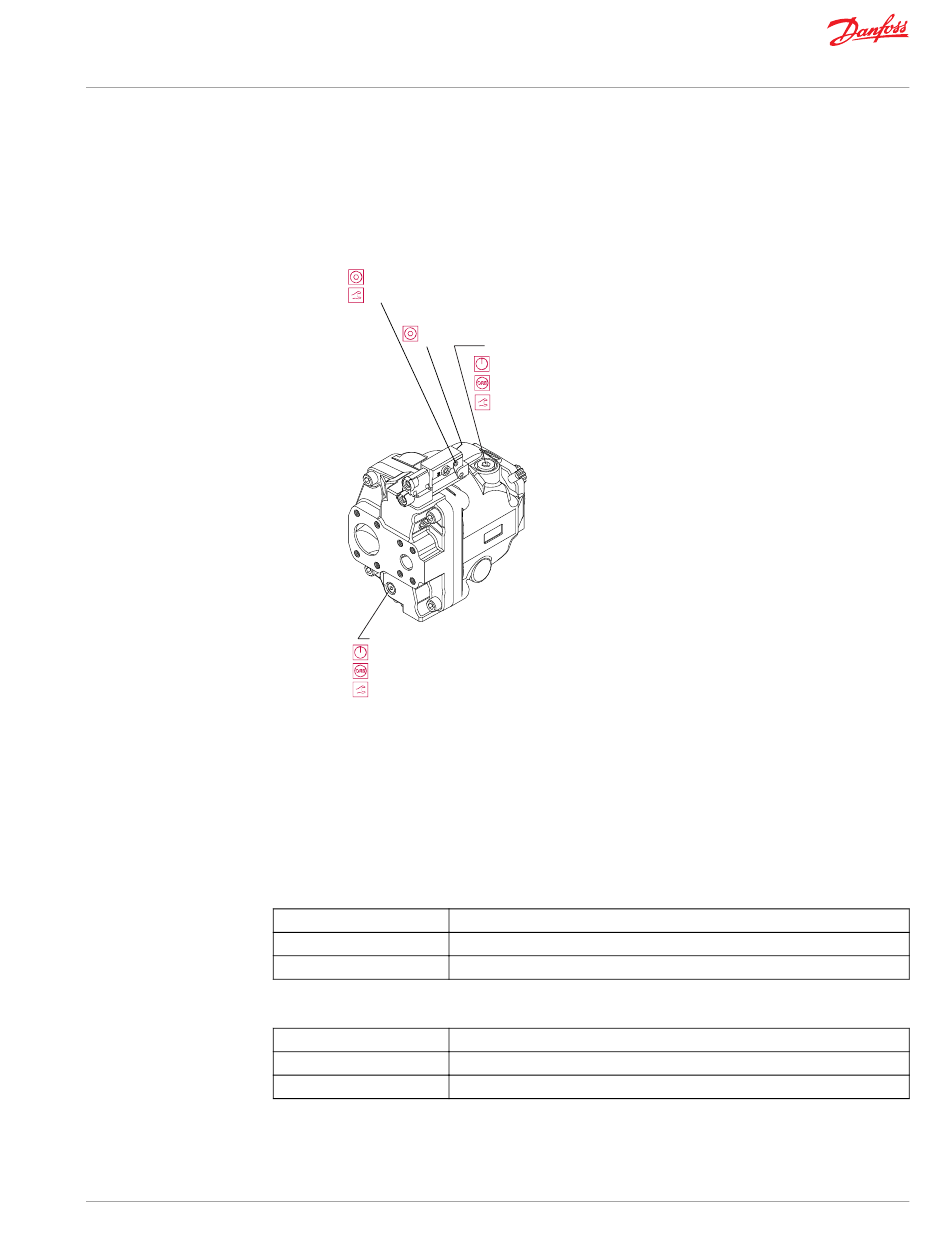

Adjusting plug, set screw, and gauge locations shown
E Frame open circuit pumps are available with an optional adjustable displacement limiter. This
adjustable stop limits the pump's maximum displacement.
Setting range
E100B
E130B
E147C
Displacement per turn
E100B
E130B
E147C
Case drain port L1
0 - 10 bar [0 - 145 psi]
7/8-14
54 - 136 N•m
[40 - 100 lbf•ft]
P104054
40 to 100 cm³ [2.44 to 6.1 in³]
70 to 130 cm³ [4.27 to 7.93 in³]
87 to 147 cm³ [5.31 to 8.97 in³]
8.4 cm³/rev [0.51 in³/rev]
8.4 cm³/rev [0.51 in³/rev]
8.4 cm³/rev [0.51 in³/rev]
AX00000024en-US0401 | 27
